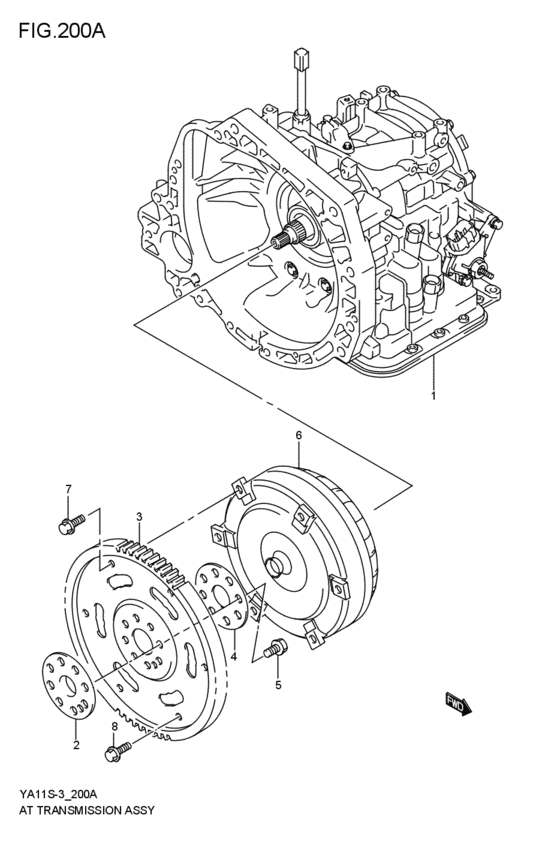

at - transmission assy (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-79JJ0-000 T/M ASSY,AUTOMATIC4WD; 2009-01-01~ |
20002-79JJ0-000 |
US $9,779.92 |
||
|
1
|
1
20002-79JJ0-111
トランスミッションアッシ,オートマチック
リビルト; 4WD; 2009-01-01~ |
20002-79JJ0-111 |
— | ||
|
2
|
2
22611-69G10-000 FLANGE,T/C DRIVE PLATE FR2009-01-01~ |
22611-69G10-000 |
US $37.17 |
||
|
3
|
3
22620-69G10-000 PLATE,TC DRIVE2009-01-01~ |
22620-69G10-000 |
US $163.20 |
||
|
4
|
4
22631-69G10-000 PLATE,TC DRIVE REAR2009-01-01~ |
22631-69G10-000 |
US $7.95 |
||
|
5
|
5
09103-10305-000 BOLT(10X18.5)2009-01-01~ |
09103-10305-000 |
US $22.40 |
||
| replacement | |||||
|
5
|
5
09100-10275-000 BOLT(10X18.5)2009-01-01~ |
09100-10275-000 |
US $1.44 |
||
|
6
|
6
22710-79J10-000 CONVERTER,TORQUE2009-01-01~ |
22710-79J10-000 |
US $1,112.32 |
||
|
7
|
7
09103-08516-000 BOLT(8X9.5)2009-01-01~ |
09103-08516-000 |
from US $1.12 |
||
|
8
|
8
09103-08517-000 BOLT(8X9.5)2009-01-01~ |
09103-08517-000 |
from US $3.65 |
||
