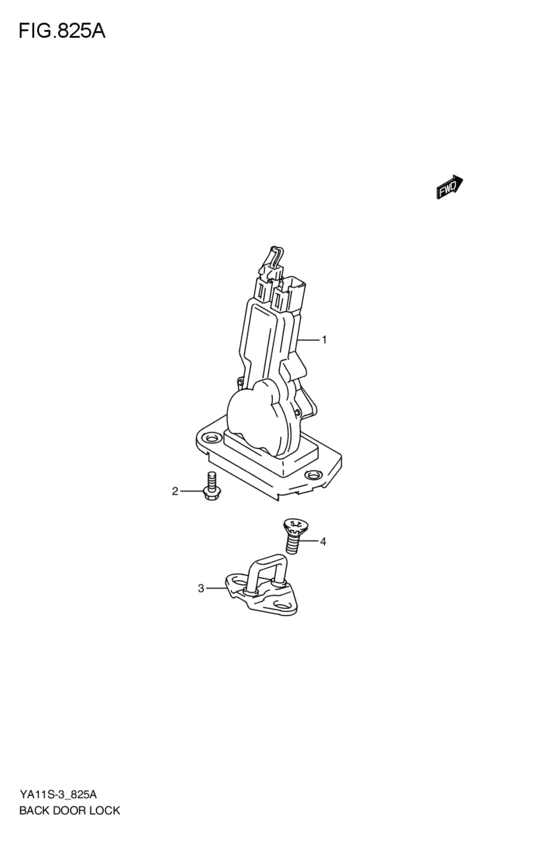

back door lock (5DR; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-80J00-000 LATCH,BACK DR5DR; 2009-01-01~ |
82510-80J00-000 |
US $214.32 |
||
|
2
|
2
02162-0616A-000 SCREW5DR; 2009-01-01~ |
02162-0616A-000 |
from US $1.04 |
||
| replacement | |||||
|
2
|
2
02162-0616B-000 SCREWBolt, adjust 5DR; 2009-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
3
|
3
82650-79J10-000 STRIKER,BACK DOOR LATCH5DR; 2009-01-01~ |
82650-79J10-000 |
US $17.60 |
||
|
4
|
4
09137-08004-000 SCREW(8X18)5DR; 2009-01-01~ |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
4
|
4
09137-08011-000 SCREW(8X18)5DR; 2009-01-01~ |
09137-08011-000 |
US $1.44 |
||
