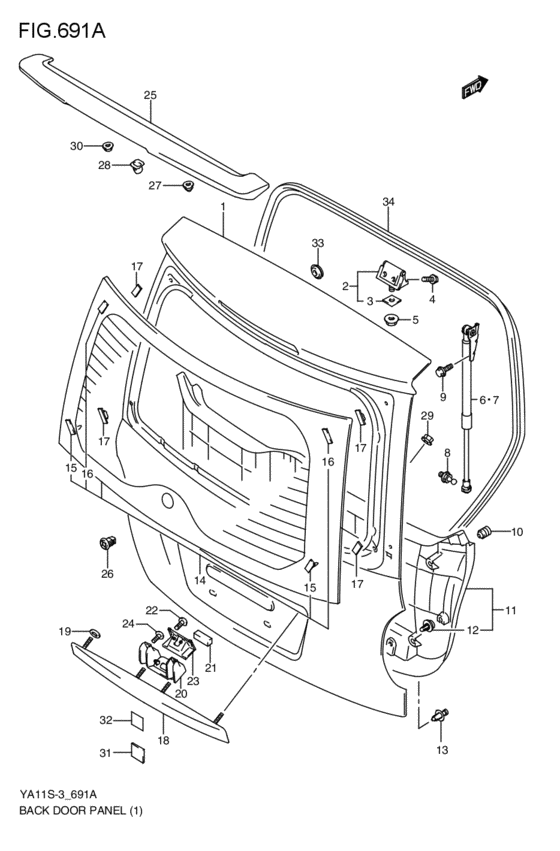

back door panel (5DR:FG; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-81820-000 PANEL ASSY,BACK DOOR5DR:FG; 2009-01-01~ |
69100-81820-000 |
US $707.52 |
||
|
2
|
2
69510-54G00-000
Hinge,door
5DR:FG; 2009-01-01~ |
69510-54G00-000 |
— | ||
| replacement | |||||
|
2
|
2
69510-54G10-000 HINGE,DOOR5DR:FG; 2009-01-01~ |
69510-54G10-000 |
US $29.81 |
||
|
3
|
3
69571-76G00-000 PACKING,BACK DR HNG5DR:FG; 2009-01-01~ |
69571-76G00-000 |
US $2.24 |
||
|
4
|
4
09111-06086-000 BOLT(6X12)5DR:FG; 2009-01-01~ |
09111-06086-000 |
US $12.50 |
||
|
5
|
5
08361-2508A-000 NUT5DR:FG; 2009-01-01~ |
08361-2508A-000 |
from US $0.80 |
||
|
6
|
6
81850-80J01-000
Balancer comp,back door,r
5DR:FG; 2009-01-01~ |
81850-80J01-000 |
— | ||
| replacement | |||||
|
6
|
6
81850-80J02-000 BALANCER,BACK DR,R5DR:FG; 2009-01-01~ |
81850-80J02-000 |
US $100.83 |
||
|
7
|
7
81860-80J01-000
Balancer comp,back door,l
5DR:FG; 2009-01-01~ |
81860-80J01-000 |
— | ||
| replacement | |||||
|
7
|
7
81860-80J02-000 BALANCER,BACK DR,L5DR:FG; 2009-01-01~ |
81860-80J02-000 |
US $100.83 |
||
|
8
|
8
81871-80J00-000 BALLSTUD,BACK DR BALANCER5DR:FG; 2009-01-01~ |
81871-80J00-000 |
US $12.14 |
||
|
9
|
9
09113-08002-000 BOLT(8X12)5DR:FG; 2009-01-01~ |
09113-08002-000 |
US $15.50 |
||
|
10
|
10
82683-60B10-000 CUSHION5DR:FG; 2009-01-01~ |
82683-60B10-000 |
US $1.92 |
||
|
11
|
11
83770-80J00-P4Z TRIM,BACK DOOR5DR:FG; 2009-01-01~ |
83770-80J00-P4Z |
US $120.08 |
||
|
12
|
12
09409-10312-000 CLIP5DR:FG; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
13
|
13
09409-07308-P4Z CLIP(GRAY)5DR:FG; 2009-01-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
14
|
14
84570-80J10-000 GLASS,BACK DR WINDOWCENTRAL; 5DR:FG; 2009-01-01~ |
84570-80J10-000 |
US $327.52 |
||
|
15
|
15
84572-74G00-000 MALE,GLASS FASTENER NO.15DR:FG; 2009-01-01~ |
84572-74G00-000 |
US $3.79 |
||
|
16
|
16
84513-76F00-000 MALE,GLASS FASTENER NO.25DR:FG; 2009-01-01~ |
84513-76F00-000 |
US $1.60 |
||
|
17
|
17
84515-65D00-000 FEMALE,GLASS FASTENER NO.25DR:FG; 2009-01-01~ |
84515-65D00-000 |
from US $3.67 |
||
|
18
|
18
83941-80J10-ZFM GARNISH,BACK DR LIC5DR:FG; 2009-01-01~ |
83941-80J10-ZFM |
US $408.48 |
||
|
18
|
18
83941-80J10-ZMT GARNISH,BACK DR LIC5DR:FG; 2009-01-01~ |
83941-80J10-ZMT |
US $397.76 |
||
|
18
|
18
83941-80J10-ZMU GARNISH,BACK DR LIC5DR:FG; 2009-01-01~ |
83941-80J10-ZMU |
US $397.44 |
||
|
18
|
18
83941-80J10-ZMV GARNISH,BACK DR LIC5DR:FG; 2009-01-01~ |
83941-80J10-ZMV |
US $393.76 |
||
|
19
|
19
77122-60B00-000 SEAL5DR:FG; 2009-01-01~ |
77122-60B00-000 |
US $1.44 |
||
|
20
|
20
83942-79J00-000 BRACKET,OPENING SWITCH5DR:FG; 2009-01-01~ |
83942-79J00-000 |
US $44.80 |
||
|
21
|
21
83944-80J00-000 PAD5DR:FG; 2009-01-01~ |
83944-80J00-000 |
US $19.20 |
||
|
22
|
22
03541-0416A-000 SCREWScrew, trunk box lamp 5DR:FG; 2009-01-01~ |
03541-0416A-000 |
from US $0.76 |
||
|
23
|
23
83943-80J10-000 BRACKET,SWITCH5DR:FG; 2009-01-01~ |
83943-80J10-000 |
US $42.56 |
||
|
24
|
24
03541-0416A-000 SCREWScrew, trunk box lamp 5DR:FG; 2009-01-01~ |
03541-0416A-000 |
from US $0.76 |
||
|
25
|
25
83980-80J00-ZFM SPOILER,BACK DOOR5DR:FG; 2009-01-01~ |
83980-80J00-ZFM |
US $422.40 |
||
|
25
|
25
83980-80J00-ZMT SPOILER,BACK DOOR5DR:FG; 2009-01-01~ |
83980-80J00-ZMT |
US $422.40 |
||
|
25
|
25
83980-80J00-ZMU SPOILER,BACK DOOR5DR:FG; 2009-01-01~ |
83980-80J00-ZMU |
US $422.40 |
||
|
25
|
25
83980-80J00-ZMV SPOILER,BACK DOOR5DR:FG; 2009-01-01~ |
83980-80J00-ZMV |
US $422.40 |
||
|
26
|
26
09148-05035-000 NUT5DR:FG; 2009-01-01~ |
09148-05035-000 |
US $12.90 |
||
|
27
|
27
09159-06100-000 NUT5DR:FG; 2009-01-01~ |
09159-06100-000 |
from US $4.28 |
||
|
28
|
28
09410-00076-000 CLIP5DR:FG; 2009-01-01~ |
09410-00076-000 |
from US $1.19 |
||
|
29
|
29
08316-1006A-000 NUT5DR:FG; 2009-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
30
|
30
08316-1006A-000 NUT5DR:FG; 2009-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
31
|
31
63191-25C00-000 CUSHIONCushion, guard 5DR:FG; 2009-01-01~ |
63191-25C00-000 |
from US $1.92 |
||
|
32
|
32
77151-82000-000
FILM
5DR:FG; 2009-01-01~ |
77151-82000-000 |
— | ||
| replacements | |||||
|
32
|
32
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 5DR:FG; 2009-01-01~ |
84761-50X50-000 |
US $6.72 |
||
|
32
|
32
77151-82010-000 Seal5DR:FG; 2009-01-01~ |
77151-82010-000 |
US $1.44 |
||
|
33
|
33
09250-20023-000 CAP(OD:25.8)5DR:FG; 2009-01-01~ |
09250-20023-000 |
US $10.30 |
||
|
34
|
34
84681-80J00-000
Weatherstrip,back door opng
5DR:FG; 2009-01-01~ |
84681-80J00-000 |
— | ||
| replacement | |||||
|
34
|
34
84681-80J01-000 WEATHERSTRIP,BACK DR OPNG5DR:FG; 2009-01-01~ |
84681-80J01-000 |
US $148 |
||
