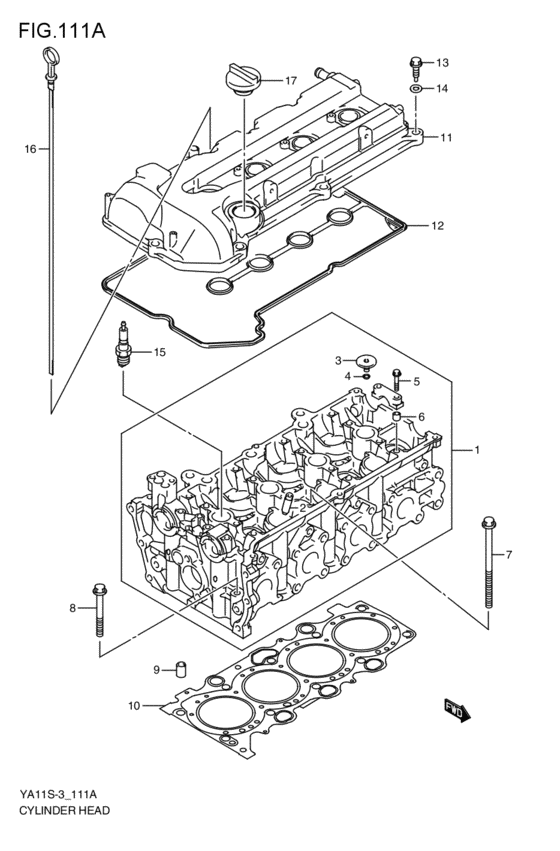

Cylinder head (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-54LE0-000
Head assy,cylinder
2009-01-01~ |
11100-54LE0-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-54LE2-000 HEAD ASSY,CYLINDER2009-01-01~ |
11100-54LE2-000 |
US $2,608 |
||
|
2
|
2
11115-54G00-001 GUIDE,VALVE2009-01-01~ |
11115-54G00-001 |
from US $15.84 |
||
|
3
|
3
09248-18011-000 PLUG(18X8)Plug, oil gallery 2009-01-01~ |
09248-18011-000 |
from US $2.88 |
||
|
4
|
4
11216-77E00-000 GASKET,M18 PLUG2009-01-01~ |
11216-77E00-000 |
from US $1.74 |
||
|
5
|
5
11128-69G01-000 BOLT,CAMSHAFT HOUSING 6X392009-01-01~ |
11128-69G01-000 |
US $1.60 |
||
|
6
|
6
09206-08001-000 PIN(8X11)2009-01-01~ |
09206-08001-000 |
from US $1.26 |
||
|
7
|
7
11117-69G00-000 BOLT,CYLINDER HEAD2009-01-01~ |
11117-69G00-000 |
from US $4.82 |
||
|
8
|
8
01550-0880A-000 BOLT2009-01-01~ |
01550-0880A-000 |
from US $1.76 |
||
|
9
|
9
09206-13020-000 PIN(10.4X13X18)2009-01-01~ |
09206-13020-000 |
from US $1.22 |
||
|
10
|
10
11141-54LA0-000 GASKET,CYL HEAD2009-01-01~ |
11141-54LA0-000 |
US $104 |
||
|
11
|
11
11170-54LE0-000
Cover,cylinder head
2009-01-01~ |
11170-54LE0-000 |
— | ||
| replacement | |||||
|
11
|
11
11170-54LE1-000 Cover,cylinder head2009-01-01~ |
11170-54LE1-000 |
US $261.28 |
||
|
12
|
12
11189-54GE0-000 GASKET,CYL HEAD COVER2009-01-01~ |
11189-54GE0-000 |
from US $15.75 |
||
|
13
|
13
11178-69G01-000 BOLT,CYL HEAD COVER2009-01-01~ |
11178-69G01-000 |
from US $1.40 |
||
|
14
|
14
11180-69G00-000 WASHER,CYL HEAD COVER SEAL2009-01-01~ |
11180-69G00-000 |
from US $2.72 |
||
|
15
|
15
09482-00606-000 PLUG,SPARK(SILFR6A11 NGK)NGK; 2009-01-01~ |
09482-00606-000 |
from US $31.19 |
||
|
16
|
16
16910-54LA0-000
Gauge comp,oil level
2009-01-01~ |
16910-54LA0-000 |
— | ||
| replacement | |||||
|
16
|
16
16910-54LA1-000 GAUGE,OIL LEVEL2009-01-01~ |
16910-54LA1-000 |
from US $11.36 |
||
|
17
|
17
16920-83G10-000
Cap comp,oil filler
2009-01-01~ |
16920-83G10-000 |
— | ||
| replacements | |||||
|
17
|
17
16920-83G00-000
Cap,oil filler
2009-01-01~ |
16920-83G00-000 |
— | ||
|
17
|
17
16920-83G01-000
CAP OIL FILLER
2009-01-01~ |
16920-83G01-000 |
— | ||
