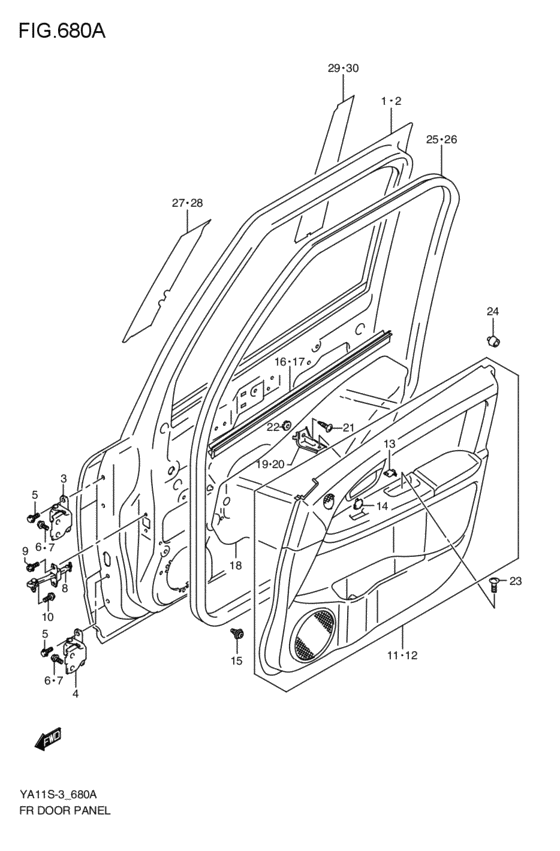

front door panel (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-80820-000 PANEL ASSY,FRONT DOOR,R2009-01-01~ |
68001-80820-000 |
from US $566.78 |
||
|
2
|
2
68002-80820-000 PANEL ASSY,FRONT DOOR,L2009-01-01~ |
68002-80820-000 |
from US $571.21 |
||
|
3
|
3
69310-63J00-000 HINGE,FR DR NO.1アツパライト; 2009-01-01~ |
69310-63J00-000 |
US $38.64 |
||
|
3
|
3
69320-63J00-000 HINGE,FR DR NO.2アツパレフト; 2009-01-01~ |
69320-63J00-000 |
US $38.64 |
||
|
4
|
4
69310-63J00-000 HINGE,FR DR NO.1ロアレフト; 2009-01-01~ |
69310-63J00-000 |
US $38.64 |
||
|
4
|
4
69320-63J00-000 HINGE,FR DR NO.2ロアライト; 2009-01-01~ |
69320-63J00-000 |
US $38.64 |
||
|
5
|
5
09103-08389-000 BOLT(8X24)2009-01-01~ |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
09113-08001-000 BOLT(8X20)2009-01-01~ |
09113-08001-000 |
US $14.40 |
||
|
7
|
7
01551-0820A-000 BOLT2009-01-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
8
|
8
81810-54G03-000
Stop comp,side door open
2009-01-01~ |
81810-54G03-000 |
— | ||
| replacement | |||||
|
8
|
8
81810-54G04-000 STOP,SIDE DOOR OPEN2009-01-01~ |
81810-54G04-000 |
US $33.60 |
||
|
9
|
9
09122-86004-000 SCREW(6X20)2009-01-01~ |
09122-86004-000 |
US $11.80 |
||
|
10
|
10
09112-08015-000 BOLT(8X25)2009-01-01~ |
09112-08015-000 |
US $19.50 |
||
|
11
|
11
83710-54LB0-GJG
Trim comp,front door,r
2009-01-01~ |
83710-54LB0-GJG |
— | ||
| replacements | |||||
|
11
|
11
83710-54LB2-GJG
TRIM,FR DR,R
2009-01-01~ |
83710-54LB2-GJG |
— | ||
|
11
|
11
83710-54LB3-GJG
Trim,fr Dr,r
2009-01-01~ |
83710-54LB3-GJG |
— | ||
|
12
|
12
83720-54LF0-GJG
Trim comp,front door,l
2009-01-01~ |
83720-54LF0-GJG |
— | ||
| replacements | |||||
|
12
|
12
83720-54LF2-GJG
TRIM,FR DR,L
2009-01-01~ |
83720-54LF2-GJG |
— | ||
|
12
|
12
83720-54LF3-GJG Trim,fr Dr,l2009-01-01~ |
83720-54LF3-GJG |
US $390.08 |
||
|
13
|
13
83752-80J00-5PK CAP,SIDE DR INSIDE CASE2009-01-01~ |
83752-80J00-5PK |
US $4.86 |
||
|
14
|
14
83754-80J00-P4Z CAP,INSIDE HDL BEZEL2009-01-01~ |
83754-80J00-P4Z |
US $5.37 |
||
|
15
|
15
09409-10312-000 CLIP2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
16
|
16
83851-80J10-000 WEATHERSTRIP,DR INR,R2009-01-01~ |
83851-80J10-000 |
US $64.60 |
||
|
17
|
17
83861-80J10-000 WEATHERSTRIP,DR INR,L2009-01-01~ |
83861-80J10-000 |
US $64.60 |
||
|
18
|
18
83911-80J00-000 COVER,FR DR SEALING2009-01-01~ |
83911-80J00-000 |
US $5.67 |
||
|
19
|
19
83751-75HA0-000 BRACKET,DR TRIM,R2009-01-01~ |
83751-75HA0-000 |
US $3.97 |
||
|
20
|
20
83756-75HA0-000 BRACKET,DR TRIM,L2009-01-01~ |
83756-75HA0-000 |
US $3.97 |
||
|
21
|
21
03241-0612A-000 SCREW2009-01-01~ |
03241-0612A-000 |
US $0.80 |
||
|
22
|
22
09148-06007-000 NUT2009-01-01~ |
09148-06007-000 |
from US $0.86 |
||
|
23
|
23
09132-05058-000 SCREW(5X12)2009-01-01~ |
09132-05058-000 |
US $12.50 |
||
|
24
|
24
82711-65J00-000 CUSHION2009-01-01~ |
82711-65J00-000 |
from US $1.51 |
||
|
25
|
25
84641-80J00-000 WEATHERSTRIP,FR DR OPNG,R2009-01-01~ |
84641-80J00-000 |
US $164.80 |
||
|
26
|
26
84651-80J00-000 WEATHERSTRIP,FR DR OPNG,L2009-01-01~ |
84651-80J00-000 |
US $87.22 |
||
|
27
|
27
83921-80J00-0CB TAPE,FR DOOR OUTER FR,R2009-01-01~ |
83921-80J00-0CB |
from US $14.24 |
||
|
28
|
28
83922-80J00-0CB TAPE,FR DOOR OUTER FR,L2009-01-01~ |
83922-80J00-0CB |
from US $14.83 |
||
|
29
|
29
83923-80J00-0CB TAPE,FR DOOR OUTER RR,R2009-01-01~ |
83923-80J00-0CB |
from US $24.68 |
||
|
30
|
30
83924-80J00-0CB TAPE,FR DOOR OUTER RR,L2009-01-01~ |
83924-80J00-0CB |
US $61.60 |
||
