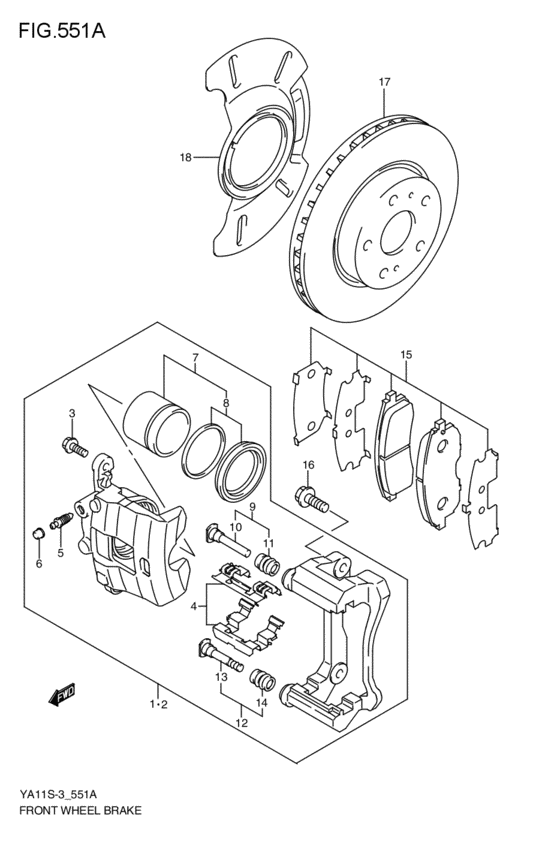

front wheel brakes (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-80J01-999
Caliper,front brake,r
2009-01-01~ |
55101-80J01-999 |
— | ||
| replacement | |||||
|
1
|
1
55101-80J02-999 CALIPER ASSY,FR BRAKE,R2009-01-01~ |
55101-80J02-999 |
US $436.48 |
||
|
2
|
2
55102-80J01-999
Caliper,front brake,l
2009-01-01~ |
55102-80J01-999 |
— | ||
| replacement | |||||
|
2
|
2
55102-80J02-999 CALIPER ASSY,FR BRAKE,L2009-01-01~ |
55102-80J02-999 |
US $436.48 |
||
|
3
|
3
55206-78452-000 BOLT,PIN2009-01-01~ |
55206-78452-000 |
US $4.77 |
||
|
4
|
4
55860-80J10-000
Spring set,pad
2009-01-01~ |
55860-80J10-000 |
— | ||
| replacement | |||||
|
4
|
4
55860-80J13-000 SPRING SET,PAD2009-01-01~ |
55860-80J13-000 |
US $42.40 |
||
|
5
|
5
55151-78451-000 PLUG,BLEEDER2009-01-01~ |
55151-78451-000 |
from US $3.94 |
||
|
6
|
6
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 2009-01-01~ |
55156-66310-000 |
from US $1.98 |
||
|
7
|
7
55840-80J00-000
PISTON / SEAL SET
2009-01-01~ |
55840-80J00-000 |
— | ||
| replacement | |||||
|
7
|
7
55840-80J01-000 PISTON / SEAL SET2009-01-01~ |
55840-80J01-000 |
US $53.73 |
||
|
8
|
8
55830-80J00-000
SEAL SET,PISTON
2009-01-01~ |
55830-80J00-000 |
— | ||
| replacement | |||||
|
8
|
8
55830-80J01-000 SEAL SET,PISTON2009-01-01~ |
55830-80J01-000 |
US $12.80 |
||
|
9
|
9
55851-80J00-000
PIN / BOOT SET
2009-01-01~ |
55851-80J00-000 |
— | ||
| replacement | |||||
|
9
|
9
55851-80J01-000 PIN / BOOT SET2009-01-01~ |
55851-80J01-000 |
US $31.20 |
||
|
10
|
10
55191-56B00-000 PIN,CYLINDER SLIDE2009-01-01~ |
55191-56B00-000 |
from US $16.25 |
||
|
11
|
11
55201-56B01-000 BOOT,PIN2009-01-01~ |
55201-56B01-000 |
from US $2.88 |
||
|
12
|
12
55852-80J00-000
PIN-B ASSY / BOOT
2009-01-01~ |
55852-80J00-000 |
— | ||
| replacement | |||||
|
12
|
12
55852-80J01-000 PIN-B ASSY / BOOT2009-01-01~ |
55852-80J01-000 |
from US $17.15 |
||
|
13
|
13
55192-80J00-000 PIN-B ASSY2009-01-01~ |
55192-80J00-000 |
US $14.09 |
||
|
14
|
14
55201-56B01-000 BOOT,PIN2009-01-01~ |
55201-56B01-000 |
from US $2.88 |
||
|
15
|
15
55810-80J01-000
Pad set,disc brake
2009-01-01~ |
55810-80J01-000 |
— | ||
| replacement | |||||
|
15
|
15
55810-80J04-000 PAD SET,DISC BRAKE2009-01-01~ |
55810-80J04-000 |
from US $125.75 |
||
|
16
|
16
09117-12012-000 BOLT(12X32)2009-01-01~ |
09117-12012-000 |
from US $2.08 |
||
|
17
|
17
55311-80J02-000
Disc,front brake
2009-01-01~ |
55311-80J02-000 |
— | ||
| replacement | |||||
|
17
|
17
55311-80J03-000 DISC,FR BRAKE2009-01-01~ |
55311-80J03-000 |
from US $130.55 |
||
|
18
|
18
55321-80J00-000 COVER,BRAKE DISC DUST2009-01-01~ |
55321-80J00-000 |
US $65.60 |
||
