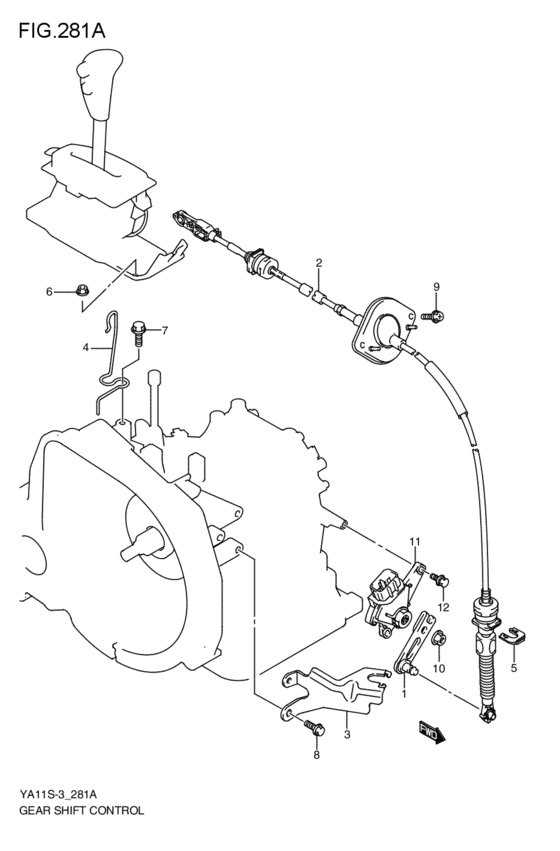

gearlever control (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25970-79J10-000 LEVER,MANUAL SLT2009-01-01~ |
25970-79J10-000 |
US $30.40 |
||
|
2
|
2
28210-54L10-000 CABLE ASSY,SELECT2009-01-01~ |
28210-54L10-000 |
US $149.41 |
||
|
3
|
3
28221-54L10-000 BRACKET,SELECT CABLE2009-01-01~ |
28221-54L10-000 |
US $12.44 |
||
|
4
|
4
28225-54L10-000 CLAMP,SELECT CABLE2009-01-01~ |
28225-54L10-000 |
US $2.72 |
||
|
5
|
5
29365-73J00-000 CLIP,GEAR CONT CABLE NO.22009-01-01~ |
29365-73J00-000 |
US $4.32 |
||
|
6
|
6
08316-1008A-000 NUTNut, idle gear shaft 2009-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
7
|
7
01550-0812A-000 BOLT2009-01-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
8
|
8
01550-0816A-000 BOLTBolt, rear 2009-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
9
|
9
02162-0620C-000 SCREW2009-01-01~ |
02162-0620C-000 |
from US $0.80 |
||
|
10
|
10
08361-3508A-000 NUT2009-01-01~ |
08361-3508A-000 |
US $0.77 |
||
|
11
|
11
37720-55G10-000 SWITCH,SHIFT2009-01-01~ |
37720-55G10-000 |
US $332.88 |
||
|
12
|
12
24896-79C10-000 BOLT,SHIFT SWITCH2009-01-01~ |
24896-79C10-000 |
US $1.73 |
