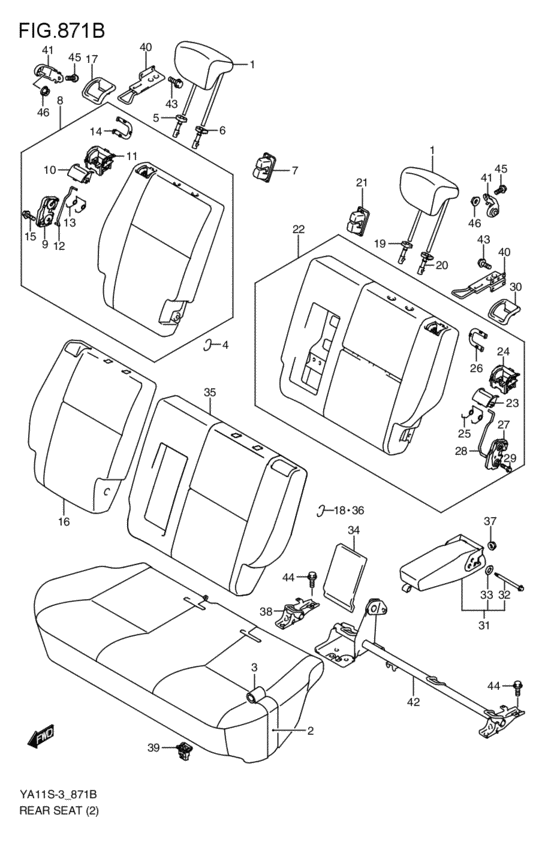

rear seat (5DR; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-66J10-GFY
Headrestraint assy,rr
5DR; 2009-01-01~ |
86401-66J10-GFY |
— | ||
| replacement | |||||
|
1
|
1
86401-66J10-JUC
HEADRESTRAINT ASSY,RR
5DR; 2009-01-01~ |
86401-66J10-JUC |
— | ||
|
2
|
2
87160-54L00-000 PAD,REAR CUSHION5DR; 2009-01-01~ |
87160-54L00-000 |
US $277.84 |
||
|
3
|
3
87180-54L00-GGA
Trim comp,rr cush,r
5DR; 2009-01-01~ |
87180-54L00-GGA |
— | ||
| replacement | |||||
|
3
|
3
87180-54L00-JUB TRIM,RR CUSHION,R5DR; 2009-01-01~ |
87180-54L00-JUB |
US $277.84 |
||
|
4
|
4
09387-19001-000 RING5DR; 2009-01-01~ |
09387-19001-000 |
US $1.76 |
||
|
5
|
5
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
5DR; 2009-01-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
5
|
5
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
5DR; 2009-01-01~ |
85341-63J11-P4Z |
— | ||
|
5
|
5
85341-63J12-P4Z Guide,headrestraint5DR; 2009-01-01~ |
85341-63J12-P4Z |
US $7.36 |
||
|
6
|
6
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
5DR; 2009-01-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
6
|
6
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
5DR; 2009-01-01~ |
85840-63J11-P4Z |
— | ||
|
6
|
6
85840-63J12-P4Z Guide Comp,headrestraint5DR; 2009-01-01~ |
85840-63J12-P4Z |
US $9.12 |
||
|
7
|
7
87225-53JA0-P4Z
Cover,tether anchor
5DR; 2009-01-01~ |
87225-53JA0-P4Z |
— | ||
| replacement | |||||
|
7
|
7
87225-53JB0-P4Z COVER,TETHER ANCHOR5DR; 2009-01-01~ |
87225-53JB0-P4Z |
US $6.51 |
||
|
8
|
8
87305-54L00-P4Z BACK S/ASSY,RR,R5DR; 2009-01-01~ |
87305-54L00-P4Z |
US $379.04 |
||
|
9
|
9
87480-62J02-000 LOCK ASSY,RR BACK,R5DR; 2009-01-01~ |
87480-62J02-000 |
US $76.54 |
||
|
10
|
10
87483-80J00-P4Z
Knob,rr back lock
5DR; 2009-01-01~ |
87483-80J00-P4Z |
— | ||
|
11
|
11
87484-80J01-000
Case,rr back lock
5DR; 2009-01-01~ |
87484-80J01-000 |
— | ||
| replacement | |||||
|
11
|
11
87484-80J11-000 CASE,RR BACK LOCK5DR; 2009-01-01~ |
87484-80J11-000 |
US $10.56 |
||
|
12
|
12
87485-54L00-000 WIRE,RR BACK LOCK,R5DR; 2009-01-01~ |
87485-54L00-000 |
US $4.45 |
||
|
13
|
13
87486-79J00-000 SPRING,BACK KNOB5DR; 2009-01-01~ |
87486-79J00-000 |
US $9.68 |
||
|
14
|
14
87487-56K50-000 COVER,RR BACK PANEL5DR; 2009-01-01~ |
87487-56K50-000 |
US $4.38 |
||
|
15
|
15
01550-0835A-000 BOLT5DR; 2009-01-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
16
|
16
87380-54L00-GGA
Trim comp,rr back,r
5DR; 2009-01-01~ |
87380-54L00-GGA |
— | ||
| replacement | |||||
|
16
|
16
87380-54L00-JUB TRIM,RR BACK,R5DR; 2009-01-01~ |
87380-54L00-JUB |
US $159.71 |
||
|
17
|
17
87482-80J00-P4Z BEZEL,RR BACK LOCK BTN5DR; 2009-01-01~ |
87482-80J00-P4Z |
US $3.53 |
||
|
18
|
18
09387-19001-000 RING5DR; 2009-01-01~ |
09387-19001-000 |
US $1.76 |
||
|
19
|
19
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
5DR; 2009-01-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
19
|
19
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
5DR; 2009-01-01~ |
85341-63J11-P4Z |
— | ||
|
19
|
19
85341-63J12-P4Z Guide,headrestraint5DR; 2009-01-01~ |
85341-63J12-P4Z |
US $7.36 |
||
|
20
|
20
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
5DR; 2009-01-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
20
|
20
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
5DR; 2009-01-01~ |
85840-63J11-P4Z |
— | ||
|
20
|
20
85840-63J12-P4Z Guide Comp,headrestraint5DR; 2009-01-01~ |
85840-63J12-P4Z |
US $9.12 |
||
|
21
|
21
87225-53JA0-P4Z
Cover,tether anchor
5DR; 2009-01-01~ |
87225-53JA0-P4Z |
— | ||
| replacement | |||||
|
21
|
21
87225-53JB0-P4Z COVER,TETHER ANCHOR5DR; 2009-01-01~ |
87225-53JB0-P4Z |
US $6.51 |
||
|
22
|
22
87306-54L20-P4Z BACK S/ASSY,RR BACK,L5DR; 2009-01-01~ |
87306-54L20-P4Z |
US $760.32 |
||
|
23
|
23
87483-80J00-P4Z
Knob,rr back lock
5DR; 2009-01-01~ |
87483-80J00-P4Z |
— | ||
|
24
|
24
87484-80J01-000
Case,rr back lock
5DR; 2009-01-01~ |
87484-80J01-000 |
— | ||
| replacement | |||||
|
24
|
24
87484-80J11-000 CASE,RR BACK LOCK5DR; 2009-01-01~ |
87484-80J11-000 |
US $10.56 |
||
|
25
|
25
87486-79J00-000 SPRING,BACK KNOB5DR; 2009-01-01~ |
87486-79J00-000 |
US $9.68 |
||
|
26
|
26
87487-56K50-000 COVER,RR BACK PANEL5DR; 2009-01-01~ |
87487-56K50-000 |
US $4.38 |
||
|
27
|
27
87980-62J02-000 LOCK ASSY,RR BACK,L5DR; 2009-01-01~ |
87980-62J02-000 |
US $76.54 |
||
|
28
|
28
87985-54L00-000 WIRE,RR BACK LOCK,L5DR; 2009-01-01~ |
87985-54L00-000 |
US $4.45 |
||
|
29
|
29
01550-0835A-000 BOLT5DR; 2009-01-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
30
|
30
87482-80J00-P4Z BEZEL,RR BACK LOCK BTN5DR; 2009-01-01~ |
87482-80J00-P4Z |
US $3.53 |
||
|
31
|
31
87501-80J00-GFY
Armrest assy,rr
5DR; 2009-01-01~ |
87501-80J00-GFY |
— | ||
| replacement | |||||
|
31
|
31
87501-80J00-JUC
ARMREST ASSY,RR
5DR; 2009-01-01~ |
87501-80J00-JUC |
— | ||
|
32
|
32
87571-80J00-000 BOLT,ARMREST5DR; 2009-01-01~ |
87571-80J00-000 |
US $10.41 |
||
|
33
|
33
09161-10007-000 WASHER(10X17X2)5DR; 2009-01-01~ |
09161-10007-000 |
from US $2.35 |
||
|
34
|
34
87541-66J00-P4Z
COVER,RR ARMREST HOLE
5DR; 2009-01-01~ |
87541-66J00-P4Z |
— | ||
|
35
|
35
87880-54L20-GGA
Trim comp,rr back,l
5DR; 2009-01-01~ |
87880-54L20-GGA |
— | ||
| replacement | |||||
|
35
|
35
87880-54L20-JUB TRIM,RR BACK,L5DR; 2009-01-01~ |
87880-54L20-JUB |
US $261.28 |
||
|
36
|
36
09387-19001-000 RING5DR; 2009-01-01~ |
09387-19001-000 |
US $1.76 |
||
|
37
|
37
08316-1008A-000 NUTNut, idle gear shaft 5DR; 2009-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
38
|
38
87260-54L00-000 BRACKET,CHILD ANCHORAGE5DR; 2009-01-01~ |
87260-54L00-000 |
US $31.28 |
||
|
39
|
39
87460-76G10-000
HOOK,RR SEAT CUSH
5DR; 2009-01-01~ |
87460-76G10-000 |
— | ||
| replacement | |||||
|
39
|
39
87460-76G11-000 HOOKRR SEAT CUSH5DR; 2009-01-01~ |
87460-76G11-000 |
from US $1.92 |
||
|
40
|
40
87870-54L00-000 STRIKER,RR BACK5DR; 2009-01-01~ |
87870-54L00-000 |
US $34.96 |
||
|
41
|
41
87910-54L00-000 HINGE,RR SIDE5DR; 2009-01-01~ |
87910-54L00-000 |
US $17.60 |
||
|
42
|
42
87950-54L00-000 HINGE,RR SEAT CTR5DR; 2009-01-01~ |
87950-54L00-000 |
US $145.73 |
||
|
43
|
43
01551-0820A-000 BOLT5DR; 2009-01-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
44
|
44
01551-1025A-000 Bolt5DR; 2009-01-01~ |
01551-1025A-000 |
US $1.12 |
||
|
45
|
45
01551-1025A-000 Bolt5DR; 2009-01-01~ |
01551-1025A-000 |
US $1.12 |
||
|
46
|
46
08313-2010A-000 NUT5DR; 2009-01-01~ |
08313-2010A-000 |
US $15.50 |
||
