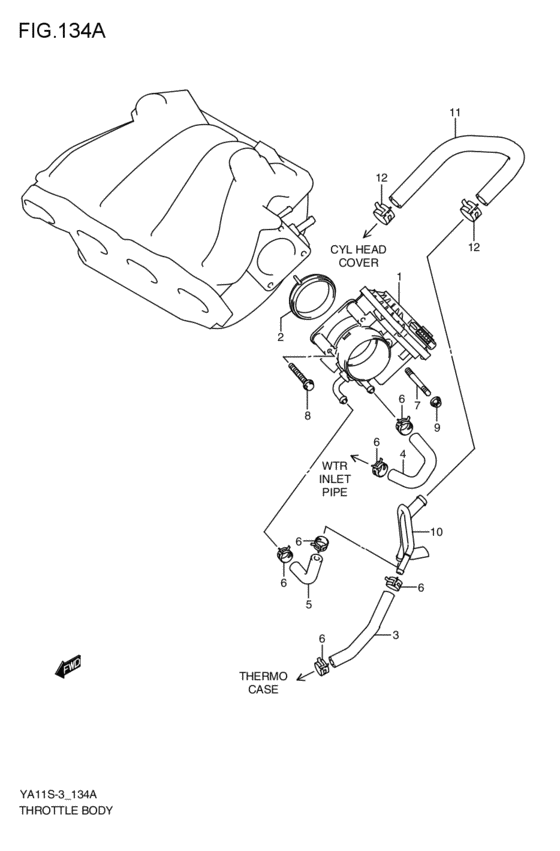

throttle body (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-54LA0-000 BODY ASSY,THROTTLE2009-01-01~ |
13400-54LA0-000 |
US $1,274 |
||
|
2
|
2
13421-54LA0-000 GASKET,THROTTLE BODY2009-01-01~ |
13421-54LA0-000 |
from US $7.18 |
||
|
3
|
3
13491-54LA0-000 HOSE,WTR THROT BODY INLET NO.12009-01-01~ |
13491-54LA0-000 |
from US $6.39 |
||
|
4
|
4
13492-54LA0-000 HOSE,WTR THROT BODY OUTLET2009-01-01~ |
13492-54LA0-000 |
US $17.60 |
||
|
5
|
5
13493-54LA0-000 HOSE,WTR THROT BODY INLET NO.22009-01-01~ |
13493-54LA0-000 |
from US $6.08 |
||
|
6
|
6
09401-12410-000 CLIPClip, filter outlet 2009-01-01~ |
09401-12410-000 |
from US $1.19 |
||
|
7
|
7
01421-0650A-000 BOLT,STUD2009-01-01~ |
01421-0650A-000 |
US $11.40 |
||
|
8
|
8
01550-0650A-000 BOLTBolt (6x50) 2009-01-01~ |
01550-0650A-000 |
from US $0.96 |
||
|
9
|
9
08316-1006A-000 NUT2009-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
10
|
10
11190-54LA0-000 PIPE,BREATHER2009-01-01~ |
11190-54LA0-000 |
US $49.41 |
||
|
11
|
11
11191-54LA0-000 HOSE,BREATHER2009-01-01~ |
11191-54LA0-000 |
US $32.80 |
||
|
12
|
12
09401-18404-000 CLIP2009-01-01~ |
09401-18404-000 |
from US $1.33 |
