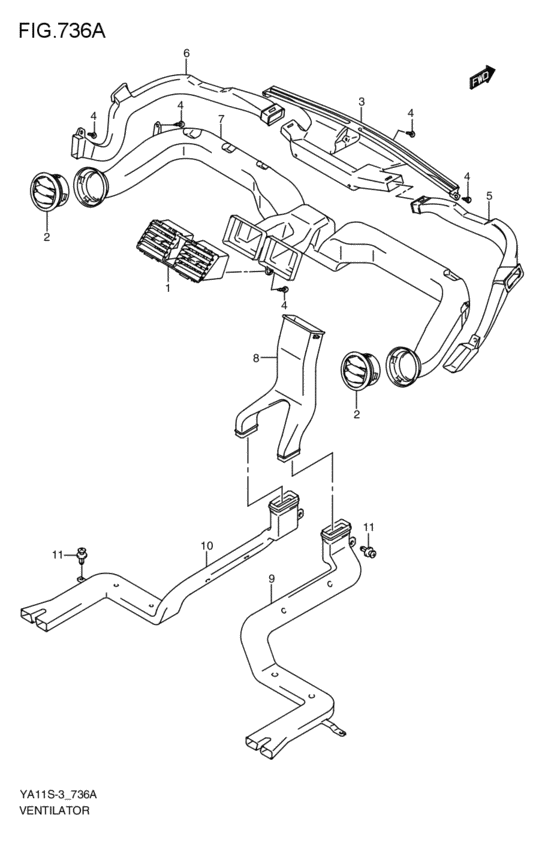

ventilator (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73610-54L00-FC6 LOUVER,CTR VENT2009-01-01~ |
73610-54L00-FC6 |
US $136 |
||
|
2
|
2
73630-58J01-BWN LOUVER,SIDE VENT2009-01-01~ |
73630-58J01-BWN |
from US $24.10 |
||
|
3
|
3
73661-80J20-000
NOZZLE,DFR
2009-01-01~ |
73661-80J20-000 |
— | ||
|
4
|
4
03541-0516A-000 SCREW2009-01-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
5
|
5
73681-80J00-000 DUCT,DMR,R2009-01-01~ |
73681-80J00-000 |
US $23.55 |
||
|
6
|
6
73691-80J00-000
DUCT,DMR,L
2009-01-01~ |
73691-80J00-000 |
— | ||
|
7
|
7
74620-54L20-000
DUCT,VENT
2009-01-01~ |
74620-54L20-000 |
— | ||
|
8
|
8
74651-80J00-000
DUCT,RR CTR
4WD; 2009-01-01~ |
74651-80J00-000 |
— | ||
|
9
|
9
74652-63J00-000 DUCT,RR,R4WD; 2009-01-01~ |
74652-63J00-000 |
US $27.97 |
||
|
10
|
10
74653-63J00-000 DUCT,RR,L4WD; 2009-01-01~ |
74653-63J00-000 |
US $27.97 |
||
|
11
|
11
09409-06322-5PK CLIP(BLACK)Clip (black) 4WD; 2009-01-01~ |
09409-06322-5PK |
from US $1.58 |
