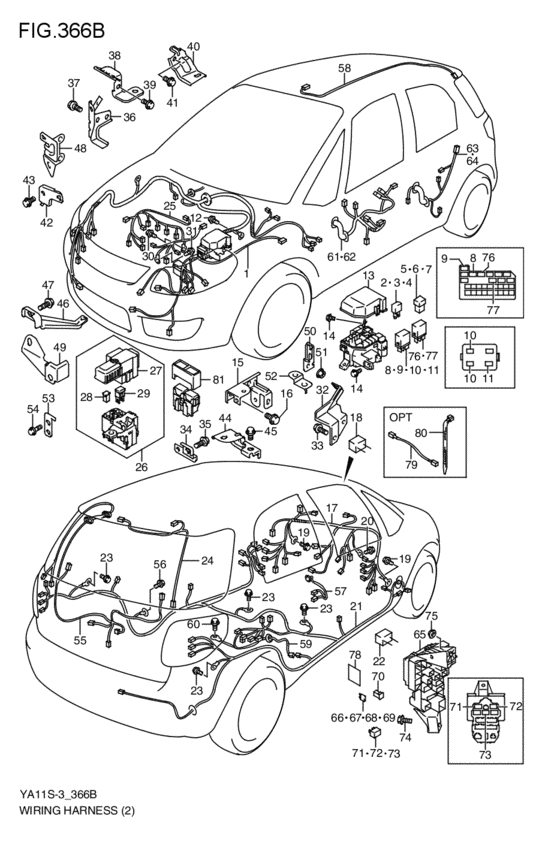

wire ring harness (5DR; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-54L10-000
ハーネスアッシ,メイン
5DR:4WD; 2009-01-01~ |
36610-54L10-000 |
— | ||
|
2
|
2
09481-15501-000 FUSE(15A)5DR; 2009-01-01~ |
09481-15501-000 |
from US $3.25 |
||
|
3
|
3
09481-20501-000 FUSE(20A)5DR; 2009-01-01~ |
09481-20501-000 |
from US $2.28 |
||
|
4
|
4
09481-30501-000 FUSE(30A)5DR; 2009-01-01~ |
09481-30501-000 |
from US $1.08 |
||
|
5
|
5
09481-30401-000 FUSE(30A)5DR; 2009-01-01~ |
09481-30401-000 |
from US $5.96 |
||
|
6
|
6
09481-40401-000 FUSE(40A)5DR; 2009-01-01~ |
09481-40401-000 |
from US $3.83 |
||
|
7
|
7
09481-60401-000 FUSE(60A)5DR; 2009-01-01~ |
09481-60401-000 |
from US $3.92 |
||
|
8
|
8
38860-76F01-000 RELAY ASSYRelay, starting motor スタータリレ-; 5DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
9
|
9
38860-76F01-000 RELAY ASSYRelay, starting motor ラジエータリレ-; 5DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
10
|
10
38860-76F01-000 RELAY ASSYRelay, starting motor ヘツドランプリレ-; 5DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
11
|
11
38860-76F01-000 RELAY ASSYRelay, starting motor テールランプリレ-; 5DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
12
|
12
09115-06005-000 BOLT(6X16)5DR; 2009-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
13
|
13
36717-80J00-000 COVER,RELAY BOX5DR; 2009-01-01~ |
36717-80J00-000 |
US $23 |
||
|
14
|
14
02162-0616B-000 SCREWBolt, adjust 5DR; 2009-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
15
|
15
36614-79J10-000 BRACKET,ENG HARN5DR; 2009-01-01~ |
36614-79J10-000 |
US $8.17 |
||
|
16
|
16
01551-0812A-000 Bolt5DR; 2009-01-01~ |
01551-0812A-000 |
US $13.20 |
||
|
17
|
17
36620-54LQ0-000
ハーネスアッシ,インストゥルメントパネル
5DR:4WD; 2009-01-01~ |
36620-54LQ0-000 |
— | ||
| replacement | |||||
|
17
|
17
36620-54LQ1-000
New Genuine Part
5DR:4WD; 2009-01-01~ |
36620-54LQ1-000 |
— | ||
|
18
|
18
36639-74F00-000 DIODE5DR; 2009-01-01~ |
36639-74F00-000 |
US $20.98 |
||
|
19
|
19
09115-06005-000 BOLT(6X16)5DR; 2009-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
20
|
20
02162-0612A-000 SCREWBolt, bracket 5DR; 2009-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
21
|
21
36630-54L90-000
ハーネスアッシ,フロア
5DR:4WD; 2009-01-01~ |
36630-54L90-000 |
— | ||
|
22
|
22
36639-74F00-000 DIODE5DR; 2009-01-01~ |
36639-74F00-000 |
US $20.98 |
||
|
23
|
23
09115-06005-000 BOLT(6X16)5DR; 2009-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
24
|
24
36690-80J00-000 WIRE,A/B5DR; 2009-01-01~ |
36690-80J00-000 |
US $91.63 |
||
|
25
|
25
36650-54L00-000
HARNESS ASSY,ENGINE
5DR; 2009-01-01~ |
36650-54L00-000 |
— | ||
|
26
|
26
36740-80J00-000 BOX ASSY,MAIN FUSE5DR; 2009-01-01~ |
36740-80J00-000 |
US $116 |
||
|
27
|
27
36694-80J00-000 COVER,BATTERY TERMINAL5DR; 2009-01-01~ |
36694-80J00-000 |
US $11.63 |
||
|
28
|
28
09481-50401-000 FUSE(50A)5DR; 2009-01-01~ |
09481-50401-000 |
US $46 |
||
|
29
|
29
09481-80301-000 FUSE(80A)5DR; 2009-01-01~ |
09481-80301-000 |
from US $5.74 |
||
|
30
|
30
09115-06005-000 BOLT(6X16)5DR; 2009-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
31
|
31
01550-0612A-000 BOLT5DR; 2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
32
|
32
36651-54LA0-000 BRACKET,ENG HARN5DR; 2009-01-01~ |
36651-54LA0-000 |
US $5.81 |
||
|
33
|
33
01550-0612A-000 BOLT5DR; 2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
34
|
34
36651-54LB0-000 BRACKET,ENG HARN5DR; 2009-01-01~ |
36651-54LB0-000 |
US $4.45 |
||
|
35
|
35
01550-0816A-000 BOLTBolt, rear 5DR; 2009-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
36
|
36
36651-54LD0-000 BRACKET,O2 CONN5DR; 2009-01-01~ |
36651-54LD0-000 |
US $4.05 |
||
|
37
|
37
01550-0612A-000 BOLT5DR; 2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
38
|
38
36651-54L40-000 BRACKET,HEAD COVER5DR; 2009-01-01~ |
36651-54L40-000 |
US $7.54 |
||
|
39
|
39
01550-0612A-000 BOLT5DR; 2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
40
|
40
36651-54L50-000 BRACKET,HEAD COVER5DR; 2009-01-01~ |
36651-54L50-000 |
US $6.26 |
||
|
41
|
41
01550-0612A-000 BOLT5DR; 2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
42
|
42
36651-54L60-000 BRACKET,ENG HOOK FRONT5DR; 2009-01-01~ |
36651-54L60-000 |
US $3.83 |
||
|
43
|
43
01550-0612A-000 BOLT5DR; 2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
44
|
44
36651-54L70-000 BRACKET,ENG HARN T/M AT5DR; 2009-01-01~ |
36651-54L70-000 |
US $5.12 |
||
|
45
|
45
01550-0812A-000 BOLT5DR; 2009-01-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
46
|
46
36651-54L80-000 BRACKET,ENG HARN BLOCK5DR; 2009-01-01~ |
36651-54L80-000 |
US $8.68 |
||
|
47
|
47
01550-1020A-000 BOLTBolt, bal sprocket 5DR; 2009-01-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
48
|
48
36651-79J30-000 BRACKET,ENG HARN5DR; 2009-01-01~ |
36651-79J30-000 |
US $4.42 |
||
|
49
|
49
36651-79J50-000 BRACKET,ENG HARN5DR; 2009-01-01~ |
36651-79J50-000 |
US $5.41 |
||
|
50
|
50
36651-79J70-000 BRACKET,ENG HARN AT5DR; 2009-01-01~ |
36651-79J70-000 |
US $3.64 |
||
|
51
|
51
08316-1006A-000 NUT5DR; 2009-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
52
|
52
36655-54G50-000 BRACKET,ENG HARN5DR; 2009-01-01~ |
36655-54G50-000 |
US $2.13 |
||
|
53
|
53
36995-77E21-000 BRACKET,ENG HARN5DR; 2009-01-01~ |
36995-77E21-000 |
US $1.69 |
||
|
54
|
54
01550-0816A-000 BOLTBolt, rear 5DR; 2009-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
55
|
55
36680-80J10-000 HARNESS ASSY,BACK DOOR5DR; 2009-01-01~ |
36680-80J10-000 |
US $134.69 |
||
|
56
|
56
09115-06005-000 BOLT(6X16)5DR; 2009-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
57
|
57
36615-80J00-000 WIRE,EPS5DR; 2009-01-01~ |
36615-80J00-000 |
US $76.18 |
||
|
58
|
58
36820-80J00-000 WIRE,DOME LAMP5DR; 2009-01-01~ |
36820-80J00-000 |
US $21.71 |
||
|
59
|
59
36840-80J00-000 WIRE,FUEL PUMP5DR; 2009-01-01~ |
36840-80J00-000 |
US $34.96 |
||
|
60
|
60
09103-06168-000 BOLT(6X10)5DR; 2009-01-01~ |
09103-06168-000 |
from US $1.01 |
||
|
61
|
61
36756-54L00-000
ワイヤ,パワーウィンドメイン
5DR; 2009-01-01~ |
36756-54L00-000 |
— | ||
|
62
|
62
36757-54L00-000
ワイヤ,パワーウィンドサブ
5DR; 2009-01-01~ |
36757-54L00-000 |
— | ||
|
63
|
63
36751-80J10-000
Wire comp,rr door r side
5DR; 2009-01-01~ |
36751-80J10-000 |
— | ||
| replacement | |||||
|
63
|
63
36751-75K30-000 WIRE,RR DR SIDE,R5DR; 2009-01-01~ |
36751-75K30-000 |
US $58.88 |
||
|
64
|
64
36751-80JB0-000
Wire comp,rr door l side
5DR; 2009-01-01~ |
36751-80JB0-000 |
— | ||
| replacement | |||||
|
64
|
64
36751-75KD0-000 WIRE,RR DR SIDE,L5DR; 2009-01-01~ |
36751-75KD0-000 |
US $70.66 |
||
|
65
|
65
36780-54L00-000
Box set,j/b & body cont mdl
5DR; 2009-01-01~ |
36780-54L00-000 |
— | ||
| replacement | |||||
|
65
|
65
36780-54L02-000
BOX SET,J/B&BODY CONT MDL
5DR; 2009-01-01~ |
36780-54L02-000 |
— | ||
|
66
|
66
09481-10501-000 FUSE(10A)5DR; 2009-01-01~ |
09481-10501-000 |
from US $1.06 |
||
|
67
|
67
09481-15501-000 FUSE(15A)5DR; 2009-01-01~ |
09481-15501-000 |
from US $3.25 |
||
|
68
|
68
09481-20501-000 FUSE(20A)5DR; 2009-01-01~ |
09481-20501-000 |
from US $2.28 |
||
|
69
|
69
09481-30501-000 FUSE(30A)5DR; 2009-01-01~ |
09481-30501-000 |
from US $1.08 |
||
|
70
|
70
09481-30401-000 FUSE(30A)5DR; 2009-01-01~ |
09481-30401-000 |
from US $5.96 |
||
|
71
|
71
38860-76F01-000 RELAY ASSYRelay, starting motor ヒータリレ-; 5DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
72
|
72
38860-76F01-000 RELAY ASSYRelay, starting motor ホーンリレ-; 5DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
73
|
73
38860-76F01-000 RELAY ASSYRelay, starting motor リヤデフオツガリレ-; 5DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
74
|
74
01551-0816C-000 Bolt5DR; 2009-01-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
75
|
75
08316-1008A-000 NUTNut, idle gear shaft 5DR; 2009-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
76
|
76
38860-76F01-000 RELAY ASSYRelay, starting motor メインリレー; 5DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
77
|
77
38860-76F01-000 RELAY ASSYRelay, starting motor フユーエルポンプリレー; 5DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
78
|
78
77151-82000-000
FILM
5DR; 2009-01-01~ |
77151-82000-000 |
— | ||
| replacements | |||||
|
78
|
78
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 5DR; 2009-01-01~ |
84761-50X50-000 |
US $6.72 |
||
|
78
|
78
77151-82010-000 Seal5DR; 2009-01-01~ |
77151-82010-000 |
US $1.44 |
||
|
79
|
79
36691-79J00-000 WIRE,A/Bオプシヨン(リペアヨウ); 5DR; 2009-01-01~ |
36691-79J00-000 |
from US $41.04 |
||
|
80
|
80
09407-18402-000 CLAMP(L:165)Clamp (l:165) オプシヨン(リペアヨウ); 5DR; 2009-01-01~ |
09407-18402-000 |
from US $1.98 |
||
|
81
|
81
36717-80JS0-000 COVER,RELAY BOX5DR; 2009-01-01~ |
36717-80JS0-000 |
US $7.62 |
||
