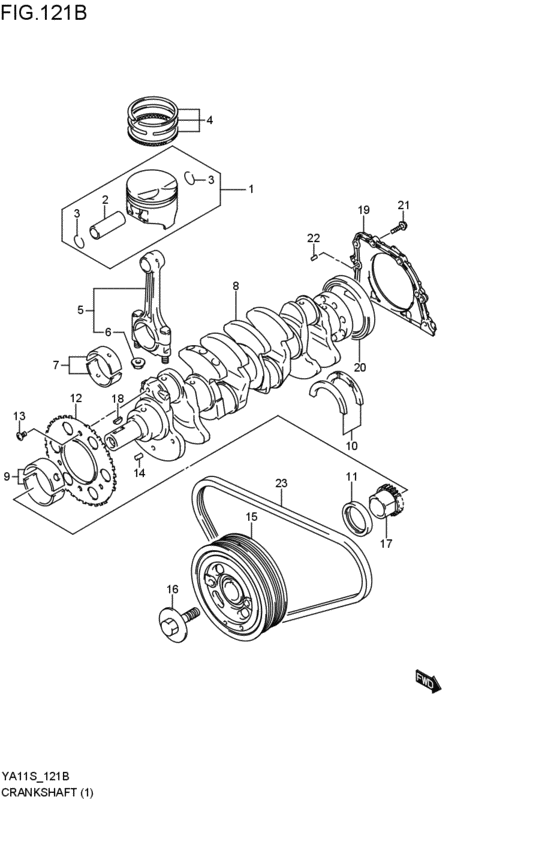

crankshaft (M15A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-54812-000 PISTON SET,STDM15A; 2006-05-01~ |
12100-54812-000 |
from US $69.17 |
||
|
2
|
2
12151-85FA0-000 PIN,PISTONM15A; 2006-05-01~ |
12151-85FA0-000 |
from US $7.07 |
||
|
3
|
3
09381-20004-000 CIRCLIPSnap ring M15A; 2006-05-01~ |
09381-20004-000 |
from US $1.51 |
||
|
4
|
4
12140-54GA0-000 RING SET,PISTON STDM15A; 2006-05-01~ |
12140-54GA0-000 |
from US $42.91 |
||
|
5
|
5
12160-69GA0-000
Шатун в сборе
M15A; 2006-05-01~ |
12160-69GA0-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-69GB0-000 CONNROD ASSYM15A; 2006-05-01~ |
12160-69GB0-000 |
US $97.89 |
||
|
6
|
6
09159-08114-000 NUTM15A; 2006-05-01~ |
09159-08114-000 |
US $15.50 |
||
|
7
|
7
12100-69830-0A0 BEARING SET,CONNROD GREENグリーン; M15A; 2006-05-01~ |
12100-69830-0A0 |
from US $12.67 |
||
|
7
|
7
12100-69830-0B0 BEARING SET,CONNROD BLACKブラック; M15A; 2006-05-01~ |
12100-69830-0B0 |
from US $14.36 |
||
|
7
|
7
12100-69830-0C0 BEARING SET,CONNROD NONカラー:ナシ; M15A; 2006-05-01~ |
12100-69830-0C0 |
from US $14.36 |
||
|
7
|
7
12100-69830-0D0 BEARING SET,CONNROD YELLOWイエロー; M15A; 2006-05-01~ |
12100-69830-0D0 |
from US $12.44 |
||
|
7
|
7
12100-69830-0E0 BEARING SET,CONNROD BLUEブルー; M15A; 2006-05-01~ |
12100-69830-0E0 |
from US $13.03 |
||
|
7
|
7
12100-69830-025 BEARING SET,CONNROD REDM15A; 2006-05-01~ |
12100-69830-025 |
from US $14.09 |
||
|
8
|
8
12221-69GA0-000 CRANKSHAFTM15A; 2006-05-01~ |
12221-69GA0-000 |
US $795.52 |
||
|
9
|
9
12340-58BA0-0A0
Bearing set, main (green)
グリーン; M15A; 2006-05-01~ |
12340-58BA0-0A0 |
— | ||
| replacement | |||||
|
9
|
9
12340-57K02-0C0 BEARING SET,CRANK GREENグリーン; M15A; 2006-05-01~ |
12340-57K02-0C0 |
from US $14.87 |
||
|
9
|
9
12340-58BA0-0B0 Bearing set, main (black)ブラック; M15A; 2006-05-01~ |
12340-58BA0-0B0 |
US $30.40 |
||
| replacement | |||||
|
9
|
9
12340-57K02-0D0 BEARING SET,CRANK BLACKブラック; M15A; 2006-05-01~ |
12340-57K02-0D0 |
from US $16.49 |
||
|
9
|
9
12340-58BA0-0C0 Bearing set, main (n/paint)カラー:ナシ; M15A; 2006-05-01~ |
12340-58BA0-0C0 |
US $30.40 |
||
| replacement | |||||
|
9
|
9
12340-57K02-0E0 BEARING SET,CRANK NONカラー:ナシ; M15A; 2006-05-01~ |
12340-57K02-0E0 |
from US $14.96 |
||
|
9
|
9
12340-58BA0-0Y0
Bearing set,crankshaft(std)
パープル; M15A; 2006-05-01~ |
12340-58BA0-0Y0 |
— | ||
| replacement | |||||
|
9
|
9
12340-57K02-0A0 BEARING SET,CRANK PURPLEパープル; M15A; 2006-05-01~ |
12340-57K02-0A0 |
from US $16.20 |
||
|
9
|
9
12340-58BA0-0Z0
Bearing set,crankshaft(std)
ブラウン; M15A; 2006-05-01~ |
12340-58BA0-0Z0 |
— | ||
| replacement | |||||
|
9
|
9
12340-57K02-0B0 BEARING SET,CRANK BROWNブラウン; M15A; 2006-05-01~ |
12340-57K02-0B0 |
from US $18.54 |
||
|
9
|
9
12300-58820-0AA
ベアリングセット,カラー:レッド/グリーン
レッド/グリーン; M15A; 2006-05-01~ |
12300-58820-0AA |
— | ||
| replacement | |||||
|
9
|
9
12300-57820-0CA BEARING SET,CRANK RED/GREENレッド/グリーン; M15A; 2006-05-01~ |
12300-57820-0CA |
from US $21.69 |
||
|
9
|
9
12300-58820-0BA
Bearing set,crankshaft(us)
レッド/ブラック; M15A; 2006-05-01~ |
12300-58820-0BA |
— | ||
| replacement | |||||
|
9
|
9
12300-57820-0DA BEARING SET,CRANK RED/BLACKレッド/ブラック; M15A; 2006-05-01~ |
12300-57820-0DA |
from US $19.26 |
||
|
9
|
9
12300-58820-0CA
ベアリングセット,カラー:レッド
レッド; M15A; 2006-05-01~ |
12300-58820-0CA |
— | ||
| replacement | |||||
|
9
|
9
12300-57820-0EA BEARING SET,CRANK REDレッド; M15A; 2006-05-01~ |
12300-57820-0EA |
from US $19.73 |
||
|
9
|
9
12300-58820-0YA
Bearing set,crankshaft(us)
レッド/パープル; M15A; 2006-05-01~ |
12300-58820-0YA |
— | ||
| replacement | |||||
|
9
|
9
12300-57820-0AA BEARING SET,CRANK RED/PURPLEレッド/パープル; M15A; 2006-05-01~ |
12300-57820-0AA |
from US $21.17 |
||
|
9
|
9
12300-58820-0ZA
Bearing set,crankshaft(us)
レッド/ブラウン; M15A; 2006-05-01~ |
12300-58820-0ZA |
— | ||
| replacement | |||||
|
9
|
9
12300-57820-0BA BEARING SET,CRANK RED/BROWNレッド/ブラウン; M15A; 2006-05-01~ |
12300-57820-0BA |
US $23.18 |
||
|
10
|
10
12300-60850-000
Bearing set, thrust
M15A; 2006-05-01~ |
12300-60850-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-000 BEARING SET,CRANK THRUSTM15A; 2006-05-01~ |
12300-78890-000 |
from US $13.07 |
||
|
10
|
10
12300-60850-012
Bearing set,crank thrust
M15A; 2006-05-01~ |
12300-60850-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-012 BEARING SET,CRANK THRUST USM15A; 2006-05-01~ |
12300-78890-012 |
from US $12.96 |
||
|
11
|
11
09283-41001-000
Seal,oil,41x53x6
M15A; 2006-05-01~ |
09283-41001-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-41003-000 SEAL,OIL(41X53X6)M15A; 2006-05-01~ |
09283-41003-000 |
from US $8.75 |
||
|
12
|
12
12222-69G00-000 PLATE,SENSORM15A; 2006-05-01~ |
12222-69G00-000 |
from US $6.71 |
||
|
13
|
13
12223-69G00-000 SCREW,SENSOR PLATE 6X10M15A; 2006-05-01~ |
12223-69G00-000 |
from US $0.75 |
||
|
14
|
14
09205-05006-000 PIN,SPRING(5X12)M15A; 2006-05-01~ |
09205-05006-000 |
from US $1.73 |
||
|
15
|
15
12610-64J00-000 PULLEY,CRANKSHAFTM15A; 2006-05-01~ |
12610-64J00-000 |
US $149.60 |
||
|
16
|
16
12619-69G01-000
ボルト,クランクプーリ,12X38.5
M15A; 2006-05-01~ |
12619-69G01-000 |
— | ||
| replacement | |||||
|
16
|
16
12619-69G10-000 BOLT,CRANK PULLEYM15A; 2006-05-01~ |
12619-69G10-000 |
from US $8.01 |
||
|
17
|
17
12631-54G00-000
Sprocket,crankshaft timing
M15A; 2006-05-01~ |
12631-54G00-000 |
— | ||
| replacement | |||||
|
17
|
17
12631-54G11-000 SPROCKET,CRANKSHAFT TIMINGM15A; 2006-05-01~ |
12631-54G11-000 |
US $44 |
||
|
18
|
18
08341-31059-000 KEYKey M15A; 2006-05-01~ |
08341-31059-000 |
from US $1.49 |
||
|
19
|
19
11341-69G10-000
Housing,oil seal
M15A; 2006-05-01~ |
11341-69G10-000 |
— | ||
| replacements | |||||
|
19
|
19
09283-83002-000 SEAL,OIL(83X97X7)M15A; 2006-05-01~ |
09283-83002-000 |
from US $16.85 |
||
|
19
|
19
11341-69G20-000 HOUSING,OIL SEALM15A; 2006-05-01~ |
11341-69G20-000 |
US $42.32 |
||
|
20
|
20
09283-83001-000 SEAL,OIL(83X103X8), REARM15A; 2006-05-01~ |
09283-83001-000 |
from US $33.71 |
||
|
21
|
21
09103-06282-000 BOLT(6X25)Bolt, shift cam (6x25) M15A; 2006-05-01~ |
09103-06282-000 |
from US $3.42 |
||
|
22
|
22
09206-06005-000 PIN(4X6X11)M15A; 2006-05-01~ |
09206-06005-000 |
from US $1.04 |
||
|
23
|
23
17521-64J00-000 BELT,WATER PUMP 5PK835M15A; 2006-05-01~ |
17521-64J00-000 |
from US $8.57 |
||
