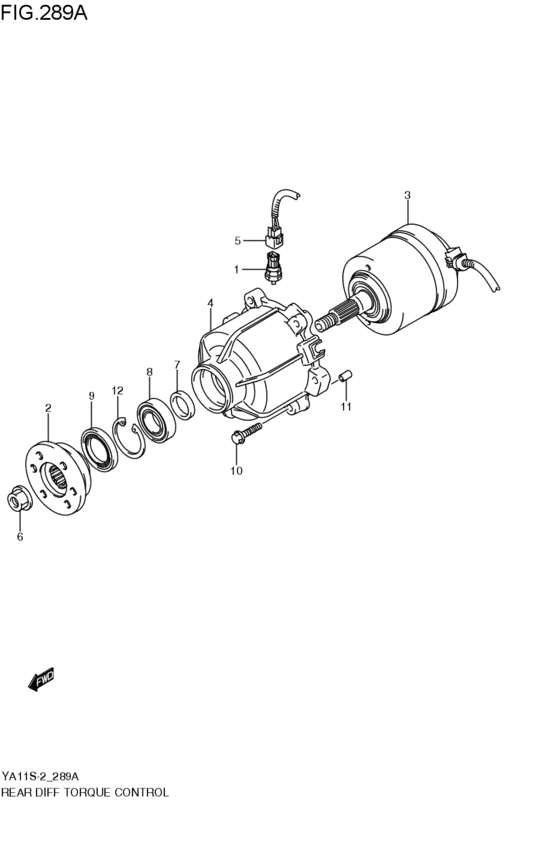

rear demister torque control (4WD; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FQ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-56B00-000 SENSOR,INLET AIR TEMPSensor, iat 4WD; 2008-07-01~ |
13650-56B00-000 |
US $38.77 |
||
|
2
|
2
27110-79J00-000 FLANGE4WD; 2008-07-01~ |
27110-79J00-000 |
US $70.29 |
||
|
3
|
3
27610-79J00-000
Coupling comp,rear drive
4WD; 2008-07-01~ |
27610-79J00-000 |
— | ||
| replacement | |||||
|
3
|
3
27610-79J01-000 COUPLING,REAR DRIVE4WD; 2008-07-01~ |
27610-79J01-000 |
US $996.16 |
||
|
4
|
4
27611-79J00-000 CASE,COUPLING4WD; 2008-07-01~ |
27611-79J00-000 |
from US $42.64 |
||
|
5
|
5
27620-80J00-000 HARNESS ASSY,COUPLING4WD; 2008-07-01~ |
27620-80J00-000 |
US $40.48 |
||
|
6
|
6
09159-16021-000 NUT4WD; 2008-07-01~ |
09159-16021-000 |
from US $4.96 |
||
|
7
|
7
09180-25101-000 SPACER(25X38X6.5)4WD; 2008-07-01~ |
09180-25101-000 |
US $72.10 |
||
|
8
|
8
09262-25072-000 BEARING(25X52X15)Bearing, rear swgarm 4WD; 2008-07-01~ |
09262-25072-000 |
from US $15.55 |
||
|
9
|
9
09283-35049-000 SEAL,OIL(35X55X8)4WD; 2008-07-01~ |
09283-35049-000 |
from US $5.47 |
||
|
10
|
10
01550-0835A-000 BOLT4WD; 2008-07-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
11
|
11
04211-09149-000 PINDowel pin 4WD; 2008-07-01~ |
04211-09149-000 |
from US $0.91 |
||
|
12
|
12
08331-4152A-000
Circlip, cntr, l
4WD; 2008-07-01~ |
08331-4152A-000 |
— | ||
| replacement | |||||
|
12
|
12
08331-41529-000 CIRCLIP4WD; 2008-07-01~ |
08331-41529-000 |
from US $6.07 |
||
