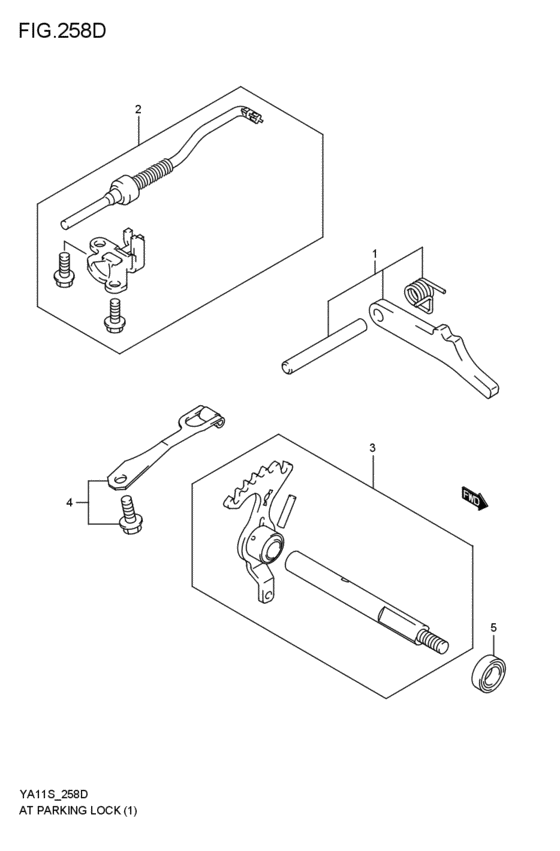

at - parking lock (M15A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- Q
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25912-79CT0-000 PAWL SET,PARKING LOCKM15A; 2006-05-01~ |
25912-79CT0-000 |
US $24.29 |
||
|
2
|
2
25920-68JT0-000 ROD SET,PARKING LOCK PAWLM15A; 2006-05-01~ |
25920-68JT0-000 |
US $21.34 |
||
|
3
|
3
25941-55GT0-000 SHAFT SET,MANUAL SHIFTM15A; 2006-05-01~ |
25941-55GT0-000 |
US $56.67 |
||
|
4
|
4
25961-79CT0-000
Spring set,manual detent
M15A; 2006-05-01~ |
25961-79CT0-000 |
— | ||
| replacement | |||||
|
4
|
4
25961-77MT0-000 SPRING SET,MANUAL DETENTM15A; 2006-05-01~ |
25961-77MT0-000 |
US $20.24 |
||
|
5
|
5
25981-60G10-000 SEAL,OILM15A; 2006-05-01~ |
25981-60G10-000 |
from US $5.83 |
||
