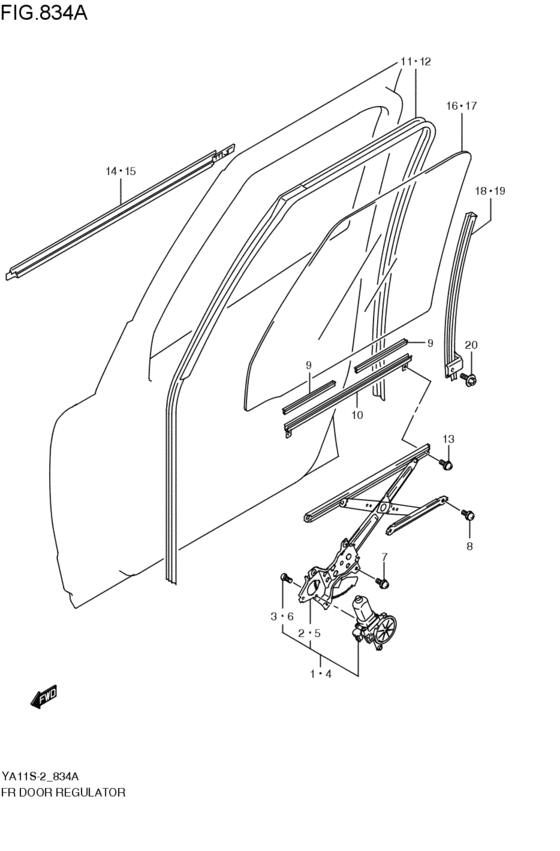

front door regulator (2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83401-79J20-000
Regulator assy,front window,r
2008-07-01~ |
83401-79J20-000 |
— | ||
| replacement | |||||
|
1
|
1
83401-79J22-000 REGULATOR ASSY,FR WINDOW,R2008-07-01~ |
83401-79J22-000 |
US $255.76 |
||
|
2
|
2
83410-79J10-000
Regulator s/assy,fr wdo,r
2008-07-01~ |
83410-79J10-000 |
— | ||
| replacement | |||||
|
2
|
2
83410-79J11-000 REGULATOR ASSY,FR WINDOW,R2008-07-01~ |
83410-79J11-000 |
US $73.60 |
||
|
3
|
3
09139-05063-000 SCREW(5X11)2008-07-01~ |
09139-05063-000 |
US $11.40 |
||
|
4
|
4
83402-79J10-000
Regulator assy,front window,l
2008-07-01~ |
83402-79J10-000 |
— | ||
| replacement | |||||
|
4
|
4
83402-79J12-000 REGULATOR ASSY,FR WINDOW,L2008-07-01~ |
83402-79J12-000 |
US $231.84 |
||
|
5
|
5
83440-79J10-000
Regulator s/assy,fr wdo,l
2008-07-01~ |
83440-79J10-000 |
— | ||
| replacement | |||||
|
5
|
5
83440-79J11-000 REGULATOR ASSY,FR WDO,L2008-07-01~ |
83440-79J11-000 |
US $73.60 |
||
|
6
|
6
09139-05063-000 SCREW(5X11)2008-07-01~ |
09139-05063-000 |
US $11.40 |
||
|
7
|
7
02112-7612A-000 SCREW2008-07-01~ |
02112-7612A-000 |
from US $0.92 |
||
| replacement | |||||
|
7
|
7
02112-7612B-000 SCREW2008-07-01~ |
02112-7612B-000 |
from US $0.96 |
||
|
8
|
8
02112-7612A-000 SCREW2008-07-01~ |
02112-7612A-000 |
from US $0.92 |
||
| replacement | |||||
|
8
|
8
02112-7612B-000 SCREW2008-07-01~ |
02112-7612B-000 |
from US $0.96 |
||
|
9
|
9
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNEL2008-07-01~ |
83691-60A00-000 |
US $2.56 |
||
|
10
|
10
83610-62B00-000 CHANNEL,FR GLASS BOTTOM2008-07-01~ |
83610-62B00-000 |
from US $15.12 |
||
|
11
|
11
83661-80J00-000 RUN,FR DOOR GLASS,R2008-07-01~ |
83661-80J00-000 |
US $98.26 |
||
|
12
|
12
83665-80J00-000 RUN,FR DOOR GLASS,L2008-07-01~ |
83665-80J00-000 |
US $98.26 |
||
|
13
|
13
02112-7612A-000 SCREW2008-07-01~ |
02112-7612A-000 |
from US $0.92 |
||
| replacement | |||||
|
13
|
13
02112-7612B-000 SCREW2008-07-01~ |
02112-7612B-000 |
from US $0.96 |
||
|
14
|
14
83811-80J00-000 WEATHERSTRIP,FR DR OUT,R2008-07-01~ |
83811-80J00-000 |
US $74.40 |
||
|
15
|
15
83821-80J00-000 WEATHERSTRIP,FR DR OUT,L2008-07-01~ |
83821-80J00-000 |
from US $51.05 |
||
|
16
|
16
84531-80J10-000 GLASS,FR DR WDO,RCENTRAL; 2008-07-01~ |
84531-80J10-000 |
US $213.44 |
||
|
17
|
17
84536-80J10-000 GLASS,FR DR WDO,LCENTRAL; 2008-07-01~ |
84536-80J10-000 |
US $191.36 |
||
|
18
|
18
81730-79J00-000 SASH,FR DOOR REAR,R2008-07-01~ |
81730-79J00-000 |
US $15.90 |
||
|
19
|
19
81740-79J00-000 SASH,FR DOOR REAR,L2008-07-01~ |
81740-79J00-000 |
US $15.90 |
||
|
20
|
20
09122-76003-000 SCREW(6X16)Bolt (6x16) 2008-07-01~ |
09122-76003-000 |
US $11.80 |
||
