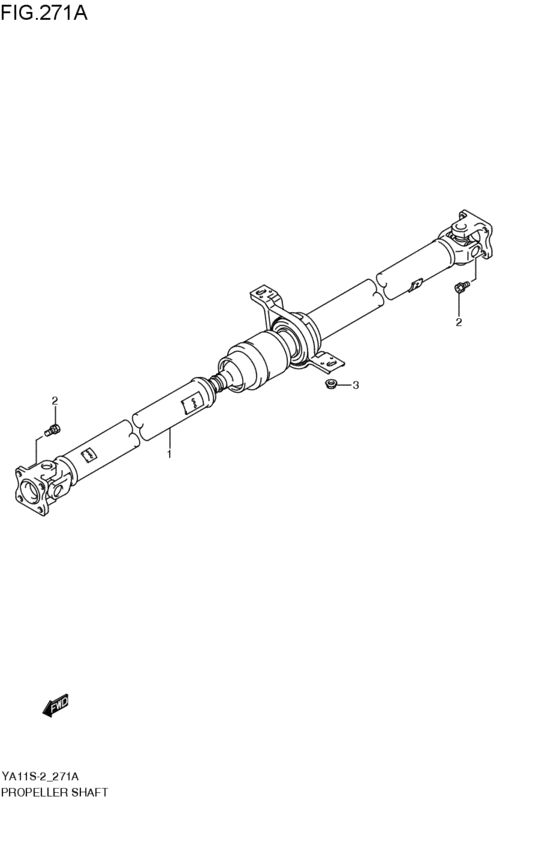

propeller shaft (4WD; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27100-80J02-000
Shaft assy,propeller
4WD; 2008-07-01~ |
27100-80J02-000 |
— | ||
| replacements | |||||
|
1
|
1
27100-80J03-000
SHAFT ASSY,PROPELLER
4WD; 2008-07-01~ |
27100-80J03-000 |
— | ||
|
1
|
1
27100-79J03-000 SHAFT ASSY,PROPELLER4WD; 2008-07-01~ |
27100-79J03-000 |
US $1,732.80 |
||
|
2
|
2
09117-08103-000 BOLT(8X18)4WD; 2008-07-01~ |
09117-08103-000 |
from US $1.69 |
||
|
3
|
3
08316-1010A-000 NUTNut, kick starter 4WD; 2008-07-01~ |
08316-1010A-000 |
from US $0.76 |
||
