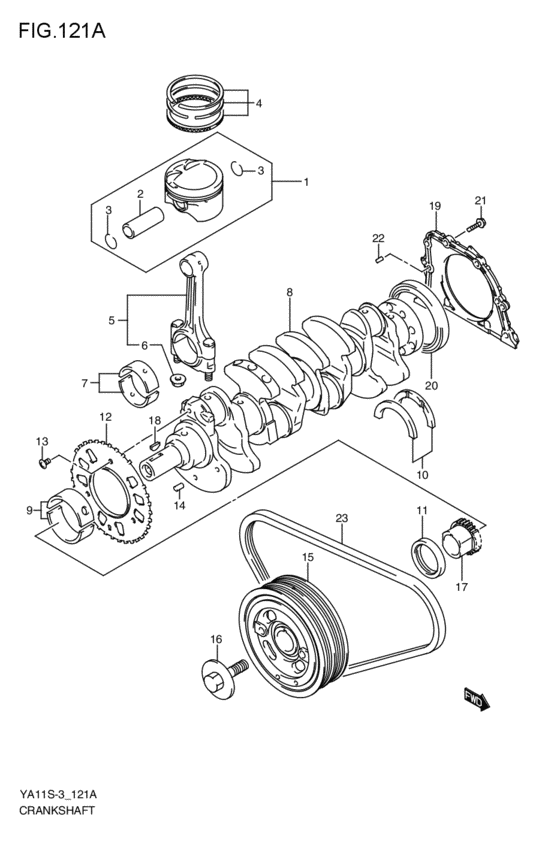

crankshaft (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-54850-000 PISTON SET2009-01-01~ |
12100-54850-000 |
US $114.77 |
||
|
2
|
2
12151-54LA0-000 PIN,PISTON2009-01-01~ |
12151-54LA0-000 |
US $9.38 |
||
|
3
|
3
09381-20004-000 CIRCLIPSnap ring 2009-01-01~ |
09381-20004-000 |
from US $1.51 |
||
|
4
|
4
12140-54LA0-000 RING SET,PISTON (STD)2009-01-01~ |
12140-54LA0-000 |
US $77.52 |
||
|
5
|
5
12160-69GA0-000
Шатун в сборе
2009-01-01~ |
12160-69GA0-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-69GB0-000 CONNROD ASSY2009-01-01~ |
12160-69GB0-000 |
US $97.89 |
||
|
6
|
6
09159-08114-000 NUT2009-01-01~ |
09159-08114-000 |
US $15.50 |
||
|
7
|
7
12100-69830-0A0 BEARING SET,CONNROD GREEN2009-01-01~ |
12100-69830-0A0 |
from US $12.67 |
||
|
7
|
7
12100-69830-0B0 BEARING SET,CONNROD BLACK2009-01-01~ |
12100-69830-0B0 |
from US $14.36 |
||
|
7
|
7
12100-69830-0C0 BEARING SET,CONNROD NON2009-01-01~ |
12100-69830-0C0 |
from US $14.36 |
||
|
7
|
7
12100-69830-0D0 BEARING SET,CONNROD YELLOW2009-01-01~ |
12100-69830-0D0 |
from US $12.44 |
||
|
7
|
7
12100-69830-0E0 BEARING SET,CONNROD BLUE2009-01-01~ |
12100-69830-0E0 |
from US $13.03 |
||
|
7
|
7
12100-69830-025 BEARING SET,CONNROD RED2009-01-01~ |
12100-69830-025 |
from US $14.09 |
||
|
8
|
8
12221-69GA0-000 CRANKSHAFT2009-01-01~ |
12221-69GA0-000 |
US $795.52 |
||
|
9
|
9
12300-57820-0AA BEARING SET,CRANK RED/PURPLE2009-01-01~ |
12300-57820-0AA |
from US $21.17 |
||
|
9
|
9
12300-57820-0BA BEARING SET,CRANK RED/BROWN2009-01-01~ |
12300-57820-0BA |
US $23.18 |
||
|
9
|
9
12300-57820-0CA BEARING SET,CRANK RED/GREEN2009-01-01~ |
12300-57820-0CA |
from US $21.69 |
||
|
9
|
9
12300-57820-0DA BEARING SET,CRANK RED/BLACK2009-01-01~ |
12300-57820-0DA |
from US $19.26 |
||
|
9
|
9
12300-57820-0EA BEARING SET,CRANK RED2009-01-01~ |
12300-57820-0EA |
from US $19.73 |
||
|
9
|
9
12340-57K02-0A0 BEARING SET,CRANK PURPLE2009-01-01~ |
12340-57K02-0A0 |
from US $16.20 |
||
|
9
|
9
12340-57K02-0B0 BEARING SET,CRANK BROWN2009-01-01~ |
12340-57K02-0B0 |
from US $18.54 |
||
|
9
|
9
12340-57K02-0C0 BEARING SET,CRANK GREEN2009-01-01~ |
12340-57K02-0C0 |
from US $14.87 |
||
|
9
|
9
12340-57K02-0D0 BEARING SET,CRANK BLACK2009-01-01~ |
12340-57K02-0D0 |
from US $16.49 |
||
|
9
|
9
12340-57K02-0E0 BEARING SET,CRANK NON2009-01-01~ |
12340-57K02-0E0 |
from US $14.96 |
||
|
10
|
10
12300-60850-000
Bearing set, thrust
2009-01-01~ |
12300-60850-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-000 BEARING SET,CRANK THRUST2009-01-01~ |
12300-78890-000 |
from US $13.07 |
||
|
10
|
10
12300-60850-012
Bearing set,crank thrust
2009-01-01~ |
12300-60850-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-012 BEARING SET,CRANK THRUST US2009-01-01~ |
12300-78890-012 |
from US $12.96 |
||
|
11
|
11
09283-41001-000
Seal,oil,41x53x6
2009-01-01~ |
09283-41001-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-41003-000 SEAL,OIL(41X53X6)2009-01-01~ |
09283-41003-000 |
from US $8.75 |
||
|
12
|
12
12222-54LA0-000 PLATE,SENSOR2009-01-01~ |
12222-54LA0-000 |
US $7.84 |
||
|
13
|
13
12223-69G00-000 SCREW,SENSOR PLATE 6X102009-01-01~ |
12223-69G00-000 |
from US $0.75 |
||
|
14
|
14
09205-05006-000 PIN,SPRING(5X12)2009-01-01~ |
09205-05006-000 |
from US $1.73 |
||
|
15
|
15
12610-64J00-000 PULLEY,CRANKSHAFT2009-01-01~ |
12610-64J00-000 |
US $149.60 |
||
|
16
|
16
12619-69G10-000 BOLT,CRANK PULLEY2009-01-01~ |
12619-69G10-000 |
from US $8.01 |
||
|
17
|
17
12631-54G00-000
Sprocket,crankshaft timing
2009-01-01~ |
12631-54G00-000 |
— | ||
| replacement | |||||
|
17
|
17
12631-54G11-000 SPROCKET,CRANKSHAFT TIMING2009-01-01~ |
12631-54G11-000 |
US $44 |
||
|
18
|
18
08341-31059-000 KEYKey 2009-01-01~ |
08341-31059-000 |
from US $1.49 |
||
|
19
|
19
11341-69G10-000
Housing,oil seal
2009-01-01~ |
11341-69G10-000 |
— | ||
| replacements | |||||
|
19
|
19
09283-83002-000 SEAL,OIL(83X97X7)2009-01-01~ |
09283-83002-000 |
from US $16.85 |
||
|
19
|
19
11341-69G20-000 HOUSING,OIL SEAL2009-01-01~ |
11341-69G20-000 |
US $42.32 |
||
|
20
|
20
09283-83001-000 SEAL,OIL(83X103X8), REAR2009-01-01~ |
09283-83001-000 |
from US $33.71 |
||
|
21
|
21
09103-06282-000 BOLT(6X25)Bolt, shift cam (6x25) 2009-01-01~ |
09103-06282-000 |
from US $3.42 |
||
|
22
|
22
09206-06005-000 PIN(4X6X11)2009-01-01~ |
09206-06005-000 |
from US $1.04 |
||
|
23
|
23
17521-64J00-000 BELT,WATER PUMP 5PK8352009-01-01~ |
17521-64J00-000 |
from US $8.57 |
||
