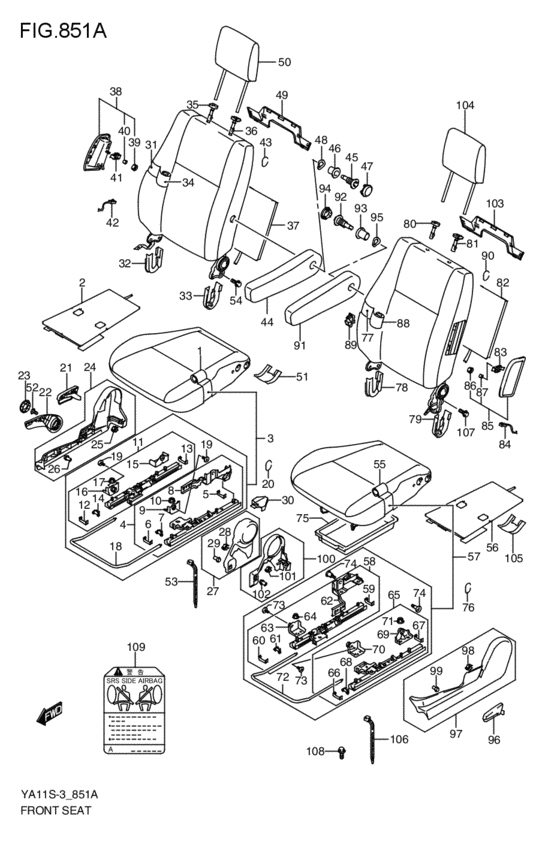

front seat (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85180-63J70-GFZ
Trim comp,fr cush,r
2009-01-01~ |
85180-63J70-GFZ |
— | ||
| replacements | |||||
|
1
|
1
85180-63J71-JUA
TRIM,FR CUSHION,R
2009-01-01~ |
85180-63J71-JUA |
— | ||
|
1
|
1
85180-63J72-JUA Trim,fr Cushion,r2009-01-01~ |
85180-63J72-JUA |
US $218.96 |
||
|
2
|
2
85170-63J00-000
Heater,fr cush
4WD; 2009-01-01~ |
85170-63J00-000 |
— | ||
| replacement | |||||
|
2
|
2
85170-63J02-000 HEATER,FR CUSH4WD; 2009-01-01~ |
85170-63J02-000 |
US $119.97 |
||
|
3
|
3
85105-80J21-000 CUSHION S/ASSY,FR,R2009-01-01~ |
85105-80J21-000 |
US $689.92 |
||
|
4
|
4
86601-80J20-000 ADJUSTER S/ASSY,FR INSIDE,R2009-01-01~ |
86601-80J20-000 |
US $126.59 |
||
|
5
|
5
86652-63J00-000
Cover,lower rail end
2009-01-01~ |
86652-63J00-000 |
— | ||
| replacement | |||||
|
5
|
5
86652-63J01-000 CAP,FR ADJUSTER LWR2009-01-01~ |
86652-63J01-000 |
US $3.04 |
||
|
6
|
6
86653-63J00-000
Cover,lower rail end
2009-01-01~ |
86653-63J00-000 |
— | ||
| replacement | |||||
|
6
|
6
86653-63J01-000 CAP,FR ADJUSTER LWR2009-01-01~ |
86653-63J01-000 |
US $3.04 |
||
|
7
|
7
86654-63J00-000 COVER,UPR RAIL END2009-01-01~ |
86654-63J00-000 |
US $3.04 |
||
|
8
|
8
86712-63J70-000 RISER,RR INS,R2009-01-01~ |
86712-63J70-000 |
US $25.58 |
||
|
9
|
9
86721-63J70-000 RISER,FR INS,R2009-01-01~ |
86721-63J70-000 |
US $15.68 |
||
|
10
|
10
08316-1010A-000 NUTNut, kick starter 2009-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
11
|
11
86603-80J20-000 ADJUSTER S/ASSY,FR OUTSIDE,R2009-01-01~ |
86603-80J20-000 |
US $126.59 |
||
|
12
|
12
86652-63J00-000
Cover,lower rail end
2009-01-01~ |
86652-63J00-000 |
— | ||
| replacement | |||||
|
12
|
12
86652-63J01-000 CAP,FR ADJUSTER LWR2009-01-01~ |
86652-63J01-000 |
US $3.04 |
||
|
13
|
13
86653-63J00-000
Cover,lower rail end
2009-01-01~ |
86653-63J00-000 |
— | ||
| replacement | |||||
|
13
|
13
86653-63J01-000 CAP,FR ADJUSTER LWR2009-01-01~ |
86653-63J01-000 |
US $3.04 |
||
|
14
|
14
86654-63J00-000 COVER,UPR RAIL END2009-01-01~ |
86654-63J00-000 |
US $3.04 |
||
|
15
|
15
86641-63J70-000 RISER,RR OUT2009-01-01~ |
86641-63J70-000 |
US $7.62 |
||
|
16
|
16
86710-63J70-000 RISER,FR OUT,R2009-01-01~ |
86710-63J70-000 |
US $17.22 |
||
|
17
|
17
08316-1010A-000 NUTNut, kick starter 2009-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
18
|
18
86691-63J00-000 HANDLE,FR SEAT ADJ2009-01-01~ |
86691-63J00-000 |
US $22.26 |
||
|
19
|
19
86717-65J00-000 BOLT,RISER2009-01-01~ |
86717-65J00-000 |
US $7.62 |
||
|
20
|
20
09387-19001-000 RING2009-01-01~ |
09387-19001-000 |
US $1.76 |
||
|
21
|
21
85211-65J00-P4Z
Knob,rclng,r
2009-01-01~ |
85211-65J00-P4Z |
— | ||
| replacement | |||||
|
21
|
21
85211-65JA0-P4Z KNOB,RCLNG,R2009-01-01~ |
85211-65JA0-P4Z |
US $4.89 |
||
|
22
|
22
85213-65J00-P4Z LEVER,SEAT LIFTER2009-01-01~ |
85213-65J00-P4Z |
US $11.22 |
||
|
23
|
23
85214-63J20-P4Z CAP,LIFTER LEVER2009-01-01~ |
85214-63J20-P4Z |
US $3.90 |
||
|
24
|
24
85220-63J20-P4Z COVER,RCLNG OUTSIDE,R2009-01-01~ |
85220-63J20-P4Z |
US $29.99 |
||
|
25
|
25
09409-10308-000 CLIP2009-01-01~ |
09409-10308-000 |
US $1.60 |
||
|
26
|
26
09409-10313-000 CLIP2009-01-01~ |
09409-10313-000 |
from US $1.76 |
||
|
27
|
27
85240-65J00-P4Z COVER,FR RCLNG INSIDE,R2009-01-01~ |
85240-65J00-P4Z |
US $8.32 |
||
|
28
|
28
09409-10308-000 CLIP2009-01-01~ |
09409-10308-000 |
US $1.60 |
||
|
29
|
29
09409-10313-000 CLIP2009-01-01~ |
09409-10313-000 |
from US $1.76 |
||
|
30
|
30
85243-63J70-000 COVER,RR RISER INSIDE,R2009-01-01~ |
85243-63J70-000 |
US $11.36 |
||
|
31
|
31
85305-54LC0-000 BACK S/ASSY,FR,R2009-01-01~ |
85305-54LC0-000 |
US $584.32 |
||
|
32
|
32
85222-63J00-P4Z COVER,FF BACK FRAME,R2009-01-01~ |
85222-63J00-P4Z |
US $6 |
||
|
33
|
33
85242-63J00-P4Z COVER,FR BACK FRAME,L(GRAY)2009-01-01~ |
85242-63J00-P4Z |
US $6 |
||
|
34
|
34
85380-80JR0-GFZ
Trim comp,fr back,r
2009-01-01~ |
85380-80JR0-GFZ |
— | ||
| replacements | |||||
|
34
|
34
85380-80JR0-JUA
TRIM,FR BACK,R
2009-01-01~ |
85380-80JR0-JUA |
— | ||
|
34
|
34
85380-80JR1-JUA
Trim,rr Back,r
2009-01-01~ |
85380-80JR1-JUA |
— | ||
|
35
|
35
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
2009-01-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
35
|
35
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
2009-01-01~ |
85341-63J11-P4Z |
— | ||
|
35
|
35
85341-63J12-P4Z Guide,headrestraint2009-01-01~ |
85341-63J12-P4Z |
US $7.36 |
||
|
36
|
36
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
2009-01-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
36
|
36
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
2009-01-01~ |
85840-63J11-P4Z |
— | ||
|
36
|
36
85840-63J12-P4Z Guide Comp,headrestraint2009-01-01~ |
85840-63J12-P4Z |
US $9.12 |
||
|
37
|
37
85370-63J00-000
Heater,fr back
4WD; 2009-01-01~ |
85370-63J00-000 |
— | ||
| replacement | |||||
|
37
|
37
85370-63J01-000 HEATER,FR BACK4WD; 2009-01-01~ |
85370-63J01-000 |
US $112.24 |
||
|
38
|
38
85350-79J00-P4Z MODULE ASSY,SIDE A/B,R2009-01-01~ |
85350-79J00-P4Z |
US $946.88 |
||
|
39
|
39
85352-62J00-000 NUT,SIDE AIRBAG2009-01-01~ |
85352-62J00-000 |
US $6.15 |
||
|
40
|
40
85353-62J00-000 SLEEVE,SIDE AIRBAG2009-01-01~ |
85353-62J00-000 |
US $5.67 |
||
|
41
|
41
85351-62J00-000 FASTENER,SIDE AIR BAG MTG2009-01-01~ |
85351-62J00-000 |
US $7.62 |
||
|
42
|
42
85355-62J00-000 HARNESS ASSY,SIDE AIRBAG2009-01-01~ |
85355-62J00-000 |
US $26.61 |
||
|
43
|
43
09387-19001-000 RING2009-01-01~ |
09387-19001-000 |
US $1.76 |
||
|
44
|
44
85501-80J01-GFY
Armrest assy,fr
2009-01-01~ |
85501-80J01-GFY |
— | ||
| replacement | |||||
|
44
|
44
85501-80J02-JUC
ARMREST ASSY,FR
2009-01-01~ |
85501-80J02-JUC |
— | ||
|
45
|
45
85541-80J00-000 BOLT,ARMREST2009-01-01~ |
85541-80J00-000 |
US $7.21 |
||
|
46
|
46
85542-80J00-000 BUSH,ARMREST2009-01-01~ |
85542-80J00-000 |
US $3.35 |
||
|
47
|
47
85543-80J00-P4Z CAP,FR ARMREST2009-01-01~ |
85543-80J00-P4Z |
US $3.09 |
||
|
48
|
48
09164-20008-000 WASHER2009-01-01~ |
09164-20008-000 |
from US $1.52 |
||
|
49
|
49
85392-65J00-000 SHIELD,FR BACK2009-01-01~ |
85392-65J00-000 |
US $5.12 |
||
|
50
|
50
86401-65J00-GFY
Headrestraint assy
2009-01-01~ |
86401-65J00-GFY |
— | ||
| replacement | |||||
|
50
|
50
86401-65J00-JUC HEADRESTRAINT ASSY2009-01-01~ |
86401-65J00-JUC |
US $118.86 |
||
|
51
|
51
86658-58J90-S9K TRIM,FR CUSHION RR2009-01-01~ |
86658-58J90-S9K |
US $4.64 |
||
|
52
|
52
09132-05043-000 SCREW(5X10)2009-01-01~ |
09132-05043-000 |
US $12.90 |
||
|
53
|
53
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 2009-01-01~ |
09407-14403-000 |
from US $2.08 |
||
|
54
|
54
01550-1016A-000 BoltPlug, oil gallery 2009-01-01~ |
01550-1016A-000 |
from US $4.96 |
||
|
55
|
55
85680-63J50-GFZ
Trim comp,fr cush,l
2009-01-01~ |
85680-63J50-GFZ |
— | ||
| replacement | |||||
|
55
|
55
85680-63J50-JUA TRIM,FR CUSHION,L2009-01-01~ |
85680-63J50-JUA |
US $218.96 |
||
|
56
|
56
85170-63J00-000
Heater,fr cush
4WD; 2009-01-01~ |
85170-63J00-000 |
— | ||
| replacement | |||||
|
56
|
56
85170-63J02-000 HEATER,FR CUSH4WD; 2009-01-01~ |
85170-63J02-000 |
US $119.97 |
||
|
57
|
57
85106-80J40-000 CUSHION S/ASSY,FR,L2009-01-01~ |
85106-80J40-000 |
US $689.92 |
||
|
58
|
58
86602-80J00-000
ADJUSTER S/ASSY,FR INSIDE,L
2009-01-01~ |
86602-80J00-000 |
— | ||
|
59
|
59
86652-63J00-000
Cover,lower rail end
2009-01-01~ |
86652-63J00-000 |
— | ||
| replacement | |||||
|
59
|
59
86652-63J01-000 CAP,FR ADJUSTER LWR2009-01-01~ |
86652-63J01-000 |
US $3.04 |
||
|
60
|
60
86653-63J00-000
Cover,lower rail end
2009-01-01~ |
86653-63J00-000 |
— | ||
| replacement | |||||
|
60
|
60
86653-63J01-000 CAP,FR ADJUSTER LWR2009-01-01~ |
86653-63J01-000 |
US $3.04 |
||
|
61
|
61
86654-63J00-000 COVER,UPR RAIL END2009-01-01~ |
86654-63J00-000 |
US $3.04 |
||
|
62
|
62
86762-63J50-000 RISER,RR INS,L2009-01-01~ |
86762-63J50-000 |
US $23.18 |
||
|
63
|
63
86721-63J50-000 RISER,FR INS2009-01-01~ |
86721-63J50-000 |
US $14.24 |
||
|
64
|
64
08316-1010A-000 NUTNut, kick starter 2009-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
65
|
65
86604-80J00-000
Adjuster sub assy,fr outside,l
2009-01-01~ |
86604-80J00-000 |
— | ||
| replacement | |||||
|
65
|
65
86604-80J01-000
ADJUSTER S/ASSY,FR OUTSIDE,L
2009-01-01~ |
86604-80J01-000 |
— | ||
|
66
|
66
86652-63J00-000
Cover,lower rail end
2009-01-01~ |
86652-63J00-000 |
— | ||
| replacement | |||||
|
66
|
66
86652-63J01-000 CAP,FR ADJUSTER LWR2009-01-01~ |
86652-63J01-000 |
US $3.04 |
||
|
67
|
67
86653-63J00-000
Cover,lower rail end
2009-01-01~ |
86653-63J00-000 |
— | ||
| replacement | |||||
|
67
|
67
86653-63J01-000 CAP,FR ADJUSTER LWR2009-01-01~ |
86653-63J01-000 |
US $3.04 |
||
|
68
|
68
86654-63J00-000 COVER,UPR RAIL END2009-01-01~ |
86654-63J00-000 |
US $3.04 |
||
|
69
|
69
86641-63J50-000
Riser comp,rr outside
2009-01-01~ |
86641-63J50-000 |
— | ||
| replacement | |||||
|
69
|
69
86641-63J51-000 RISER,RR OUT2009-01-01~ |
86641-63J51-000 |
US $10.56 |
||
|
70
|
70
86711-63J50-000 RISER,FR OUT2009-01-01~ |
86711-63J50-000 |
US $7.91 |
||
|
71
|
71
08316-1010A-000 NUTNut, kick starter 2009-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
72
|
72
86691-63J00-000 HANDLE,FR SEAT ADJ2009-01-01~ |
86691-63J00-000 |
US $22.26 |
||
|
73
|
73
01550-1016A-000 BoltPlug, oil gallery 2009-01-01~ |
01550-1016A-000 |
from US $4.96 |
||
|
74
|
74
01550-1035A-000 BOLTBolt, fr fork upper 2009-01-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
75
|
75
85150-63J00-000 TRAY,FR SEAT UNDER2009-01-01~ |
85150-63J00-000 |
US $31.83 |
||
|
76
|
76
09387-19001-000 RING2009-01-01~ |
09387-19001-000 |
US $1.76 |
||
|
77
|
77
85306-54LB0-000
BACK S/ASSY,FR,L
2009-01-01~ |
85306-54LB0-000 |
— | ||
|
78
|
78
85222-63J00-P4Z COVER,FF BACK FRAME,R2009-01-01~ |
85222-63J00-P4Z |
US $6 |
||
|
79
|
79
85242-63J00-P4Z COVER,FR BACK FRAME,L(GRAY)2009-01-01~ |
85242-63J00-P4Z |
US $6 |
||
|
80
|
80
85341-63J10-P4Z
GUIDE,HEADRESTRAINT
2009-01-01~ |
85341-63J10-P4Z |
— | ||
| replacements | |||||
|
80
|
80
85341-63J11-P4Z
GUIDE,HEADRESTRAINT
2009-01-01~ |
85341-63J11-P4Z |
— | ||
|
80
|
80
85341-63J12-P4Z Guide,headrestraint2009-01-01~ |
85341-63J12-P4Z |
US $7.36 |
||
|
81
|
81
85840-63J10-P4Z
GUIDE,HEADRESTRAINT
2009-01-01~ |
85840-63J10-P4Z |
— | ||
| replacements | |||||
|
81
|
81
85840-63J11-P4Z
GUIDE COMP,HEADRESTRAINT
2009-01-01~ |
85840-63J11-P4Z |
— | ||
|
81
|
81
85840-63J12-P4Z Guide Comp,headrestraint2009-01-01~ |
85840-63J12-P4Z |
US $9.12 |
||
|
82
|
82
85370-63J00-000
Heater,fr back
4WD; 2009-01-01~ |
85370-63J00-000 |
— | ||
| replacement | |||||
|
82
|
82
85370-63J01-000 HEATER,FR BACK4WD; 2009-01-01~ |
85370-63J01-000 |
US $112.24 |
||
|
83
|
83
85351-62J00-000 FASTENER,SIDE AIR BAG MTG2009-01-01~ |
85351-62J00-000 |
US $7.62 |
||
|
84
|
84
85355-62J00-000 HARNESS ASSY,SIDE AIRBAG2009-01-01~ |
85355-62J00-000 |
US $26.61 |
||
|
85
|
85
85850-79J00-P4Z MODULE ASSY,SIDE A/B,L2009-01-01~ |
85850-79J00-P4Z |
US $946.88 |
||
|
86
|
86
85352-62J00-000 NUT,SIDE AIRBAG2009-01-01~ |
85352-62J00-000 |
US $6.15 |
||
|
87
|
87
85353-62J00-000 SLEEVE,SIDE AIRBAG2009-01-01~ |
85353-62J00-000 |
US $5.67 |
||
|
88
|
88
85880-80JB0-GFZ
Trim comp,fr back,l
2009-01-01~ |
85880-80JB0-GFZ |
— | ||
| replacement | |||||
|
88
|
88
85880-80JB0-JUA
TRIM,FR BACK,L
2009-01-01~ |
85880-80JB0-JUA |
— | ||
|
89
|
89
86590-58J01-P4Z HOOK,SEAT BACK2009-01-01~ |
86590-58J01-P4Z |
US $7.18 |
||
|
90
|
90
09387-19001-000 RING2009-01-01~ |
09387-19001-000 |
US $1.76 |
||
|
91
|
91
85501-80J01-GFY
Armrest assy,fr
2009-01-01~ |
85501-80J01-GFY |
— | ||
| replacement | |||||
|
91
|
91
85501-80J02-JUC
ARMREST ASSY,FR
2009-01-01~ |
85501-80J02-JUC |
— | ||
|
92
|
92
85541-80J00-000 BOLT,ARMREST2009-01-01~ |
85541-80J00-000 |
US $7.21 |
||
|
93
|
93
85542-80J00-000 BUSH,ARMREST2009-01-01~ |
85542-80J00-000 |
US $3.35 |
||
|
94
|
94
85543-80J00-P4Z CAP,FR ARMREST2009-01-01~ |
85543-80J00-P4Z |
US $3.09 |
||
|
95
|
95
09164-20008-000 WASHER2009-01-01~ |
09164-20008-000 |
from US $1.52 |
||
|
96
|
96
85711-65J00-P4Z
Knob,rclng,l
2009-01-01~ |
85711-65J00-P4Z |
— | ||
| replacement | |||||
|
96
|
96
85711-65JA0-P4Z KNOB,RCLNG,L2009-01-01~ |
85711-65JA0-P4Z |
US $4.89 |
||
|
97
|
97
85720-63J20-P4Z COVER,RCLNG OUTSIDE,L2009-01-01~ |
85720-63J20-P4Z |
US $29.99 |
||
|
98
|
98
09409-10308-000 CLIP2009-01-01~ |
09409-10308-000 |
US $1.60 |
||
|
99
|
99
09409-10313-000 CLIP2009-01-01~ |
09409-10313-000 |
from US $1.76 |
||
|
100
|
100
85740-65J00-P4Z COVER,FR RCLNG INSIDE,L2009-01-01~ |
85740-65J00-P4Z |
US $8.32 |
||
|
101
|
101
09409-10308-000 CLIP2009-01-01~ |
09409-10308-000 |
US $1.60 |
||
|
102
|
102
09409-10313-000 CLIP2009-01-01~ |
09409-10313-000 |
from US $1.76 |
||
|
103
|
103
85392-65J00-000 SHIELD,FR BACK2009-01-01~ |
85392-65J00-000 |
US $5.12 |
||
|
104
|
104
86401-65J00-GFY
Headrestraint assy
2009-01-01~ |
86401-65J00-GFY |
— | ||
| replacement | |||||
|
104
|
104
86401-65J00-JUC HEADRESTRAINT ASSY2009-01-01~ |
86401-65J00-JUC |
US $118.86 |
||
|
105
|
105
86658-58J90-S9K TRIM,FR CUSHION RR2009-01-01~ |
86658-58J90-S9K |
US $4.64 |
||
|
106
|
106
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 2009-01-01~ |
09407-14403-000 |
from US $2.08 |
||
|
107
|
107
01550-1016A-000 BoltPlug, oil gallery 2009-01-01~ |
01550-1016A-000 |
from US $4.96 |
||
|
108
|
108
09119-08097-000 BOLT(8X25)2009-01-01~ |
09119-08097-000 |
from US $1.76 |
||
|
109
|
109
85354-59JA0-000
LABEL,SIDE AIRBAG
2009-01-01~ |
85354-59JA0-000 |
— | ||
| replacement | |||||
|
109
|
109
85354-59JK0-000 LABEL,SIDE AIRBAG2009-01-01~ |
85354-59JK0-000 |
US $3.84 |
||
