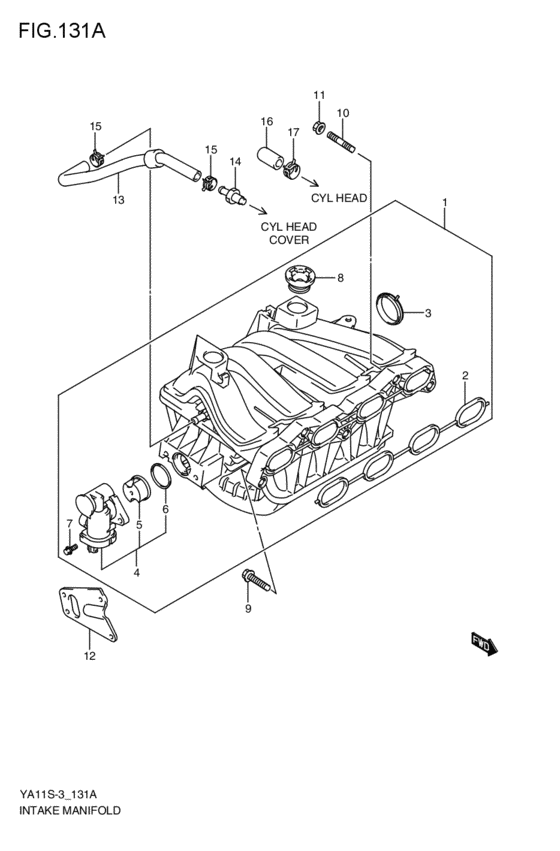

intake manifold (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-54LA0-000
Manifold comp,intake
2009-01-01~ |
13110-54LA0-000 |
— | ||
| replacement | |||||
|
1
|
1
13110-72L00-000 MANIFOLD,INTK2009-01-01~ |
13110-72L00-000 |
US $542.08 |
||
|
2
|
2
13119-54LA0-000 GASKET,INTK MANF2009-01-01~ |
13119-54LA0-000 |
US $14.09 |
||
|
3
|
3
13421-54LA0-000 GASKET,THROTTLE BODY2009-01-01~ |
13421-54LA0-000 |
from US $7.18 |
||
|
4
|
4
13470-54LA0-000
アクチュエータアッシ
2009-01-01~ |
13470-54LA0-000 |
— | ||
|
5
|
5
13472-54LA0-000 RETAINER,VALVE ACTUATOR2009-01-01~ |
13472-54LA0-000 |
US $6.29 |
||
|
6
|
6
13473-54LA0-000 GASKET,VALVE ACTUATOR2009-01-01~ |
13473-54LA0-000 |
US $4.42 |
||
|
7
|
7
13474-54LA0-000 Bolt2009-01-01~ |
13474-54LA0-000 |
US $5.23 |
||
|
8
|
8
13723-54LA0-000
CUSHION
2009-01-01~ |
13723-54LA0-000 |
— | ||
|
9
|
9
01550-0835A-000 BOLT2009-01-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
10
|
10
09108-08266-000 BOLT,STUD2009-01-01~ |
09108-08266-000 |
US $1.92 |
||
|
11
|
11
08316-1008A-000 NUTNut, idle gear shaft 2009-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
12
|
12
11851-54LA0-000 HOOK,ENGINE2009-01-01~ |
11851-54LA0-000 |
US $8.02 |
||
|
13
|
13
11193-54LA0-000 HOSE,PCV2009-01-01~ |
11193-54LA0-000 |
US $32 |
||
|
14
|
14
18118-54G00-000
VALVE,PCV
2009-01-01~ |
18118-54G00-000 |
— | ||
| replacement | |||||
|
14
|
14
18118-54G01-000 VALVE,PCV2009-01-01~ |
18118-54G01-000 |
from US $23.04 |
||
|
15
|
15
09401-13414-000 CLIPClip, pcv hose 2009-01-01~ |
09401-13414-000 |
from US $1.60 |
||
|
16
|
16
09251-07004-000 CAP2009-01-01~ |
09251-07004-000 |
US $43.40 |
||
|
17
|
17
09401-12404-000 CLIPClip 2009-01-01~ |
09401-12404-000 |
from US $1.52 |
||
