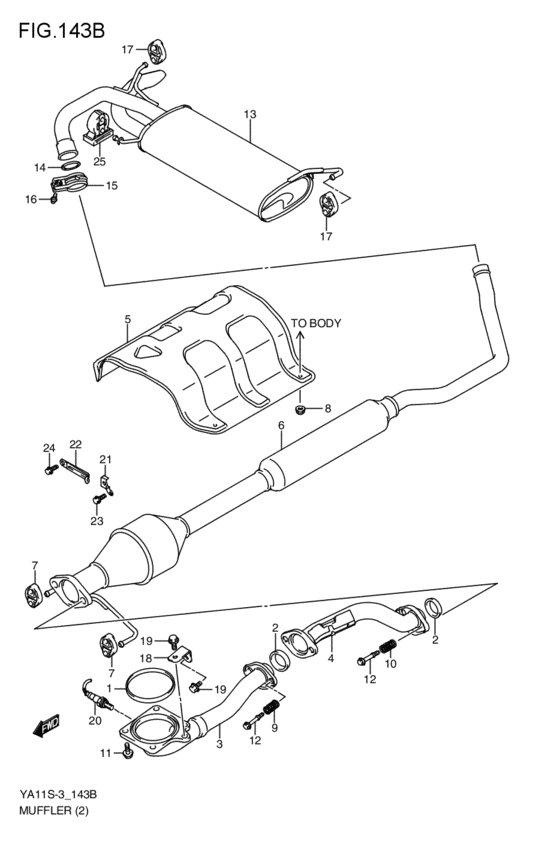

muffler (5DR; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-70H00-000 GASKET,EXH MANF5DR; 2009-01-01~ |
14181-70H00-000 |
from US $9.47 |
||
|
2
|
2
14183-76A00-000 RING,SEAL EXH PIPE5DR; 2009-01-01~ |
14183-76A00-000 |
from US $11.57 |
||
|
3
|
3
14190-80JA0-000 PIPE,EXH NO.15DR; 2009-01-01~ |
14190-80JA0-000 |
US $483.20 |
||
|
4
|
4
14220-80J10-000 PIPE,EXHAUST5DR; 2009-01-01~ |
14220-80J10-000 |
US $297.60 |
||
|
5
|
5
14231-79J01-000 INSULATOR,CATALYST HEAT5DR; 2009-01-01~ |
14231-79J01-000 |
US $53.96 |
||
|
6
|
6
14250-54LA0-H02 PIPE,EXH CENTER5DR; 2009-01-01~ |
14250-54LA0-H02 |
US $1,300.32 |
||
|
7
|
7
14281-80JA0-000 MOUNTING,MUF5DR; 2009-01-01~ |
14281-80JA0-000 |
from US $4.68 |
||
|
8
|
8
14357-72J00-000 NUT5DR; 2009-01-01~ |
14357-72J00-000 |
US $1.52 |
||
|
9
|
9
14492-67D00-000 SPRING,EXH PIPE5DR; 2009-01-01~ |
14492-67D00-000 |
from US $5.69 |
||
|
10
|
10
14492-67D00-000 SPRING,EXH PIPE5DR; 2009-01-01~ |
14492-67D00-000 |
from US $5.69 |
||
|
11
|
11
09103-10324-000 BOLT(10X20)5DR; 2009-01-01~ |
09103-10324-000 |
from US $2.24 |
||
|
12
|
12
09119-10073-000 BOLT(10X65)5DR; 2009-01-01~ |
09119-10073-000 |
from US $5.76 |
||
|
13
|
13
14300-54L00-000 MUFFLER5DR; 2009-01-01~ |
14300-54L00-000 |
US $461.12 |
||
|
14
|
14
14184-80J00-000 GASKET,EXH PIPE5DR; 2009-01-01~ |
14184-80J00-000 |
from US $7.67 |
||
|
15
|
15
14185-80J00-000 CLAMP,EXH PIPE5DR; 2009-01-01~ |
14185-80J00-000 |
US $10.49 |
||
|
16
|
16
14186-80J00-000 BOLT,CLAMP 8X405DR; 2009-01-01~ |
14186-80J00-000 |
US $2.58 |
||
|
17
|
17
14281-80JA0-000 MOUNTING,MUF5DR; 2009-01-01~ |
14281-80JA0-000 |
from US $4.68 |
||
|
18
|
18
14271-63J00-000
Stiffener,exh manf,r
5DR; 2009-01-01~ |
14271-63J00-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-1025A-000 BOLTBolt, drive gear 5DR; 2009-01-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
18
|
18
14271-63J01-000 STIFFENER,EXH MANF5DR; 2009-01-01~ |
14271-63J01-000 |
US $13.28 |
||
|
19
|
19
09103-10324-000 BOLT(10X20)5DR; 2009-01-01~ |
09103-10324-000 |
from US $2.24 |
||
|
20
|
20
18213-56KB0-000 SENSOR,OXYGEN5DR; 2009-01-01~ |
18213-56KB0-000 |
US $353.60 |
||
|
21
|
21
18214-63J00-000
Bracket,oxygen sensor
5DR; 2009-01-01~ |
18214-63J00-000 |
— | ||
| replacement | |||||
|
21
|
21
18214-63J01-000 BRACKET,OXYGEN SENSOR5DR; 2009-01-01~ |
18214-63J01-000 |
US $1.73 |
||
|
22
|
22
09404-08419-000 CLAMP(L:80)5DR; 2009-01-01~ |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
22
|
22
09404-08422-000 Clamp,wiring Harness5DR; 2009-01-01~ |
09404-08422-000 |
from US $3.62 |
||
|
23
|
23
01550-0612A-000 BOLT5DR; 2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
24
|
24
01550-0816A-000 BOLTBolt, rear 5DR; 2009-01-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
25
|
25
14281-80J00-000 MOUNTING,MUF5DR; 2009-01-01~ |
14281-80J00-000 |
from US $16.94 |
||
