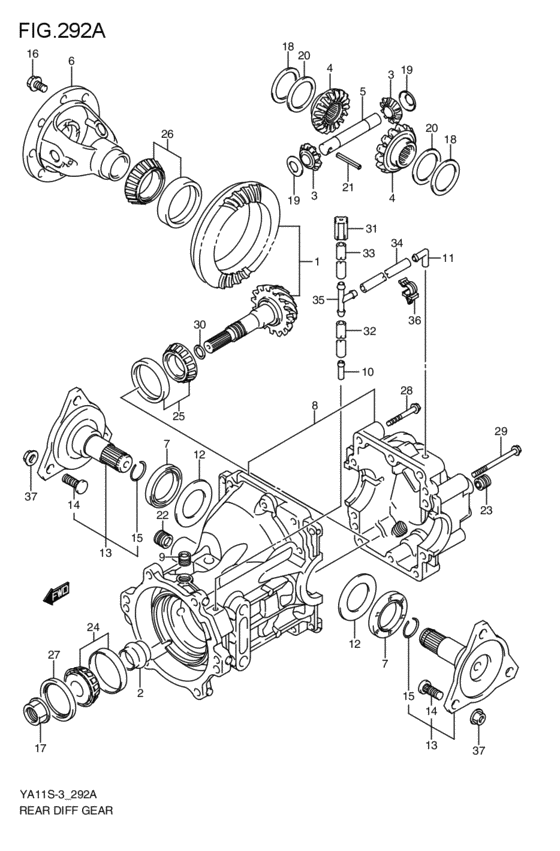

リヤデファレンシャルギヤ (4WD; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27300-81880-000 BEVEL PINION&GEAR SET4WD; 2009-01-01~ |
27300-81880-000 |
US $538.56 |
||
|
2
|
2
27315-63J00-000 SPACER,BEVEL PINION4WD; 2009-01-01~ |
27315-63J00-000 |
US $8.76 |
||
|
3
|
3
27331-78FJ1-000 PINION,DIFFERENTIAL4WD; 2009-01-01~ |
27331-78FJ1-000 |
from US $26.60 |
||
|
4
|
4
27341-76G11-000
Gear,diffrential
4WD; 2009-01-01~ |
27341-76G11-000 |
— | ||
| replacement | |||||
|
4
|
4
27341-76G12-000 GEAR,DIFF4WD; 2009-01-01~ |
27341-76G12-000 |
US $64.77 |
||
|
5
|
5
27351-62B00-000 SHAFT,DIFF SIDE PINION4WD; 2009-01-01~ |
27351-62B00-000 |
from US $13.97 |
||
|
6
|
6
27411-63J00-000 CASE,DIFF4WD; 2009-01-01~ |
27411-63J00-000 |
US $166.70 |
||
|
7
|
7
27431-73B20-000 OIL SEAL,DIFF SIDESeal, defferential side oil 4WD; 2009-01-01~ |
27431-73B20-000 |
US $11.63 |
||
| replacement | |||||
|
7
|
7
27431-73H30-000 SEAL,OIL4WD; 2009-01-01~ |
27431-73H30-000 |
from US $12.67 |
||
|
8
|
8
27400-79840-000 CARRIER SET,DIFF4WD; 2009-01-01~ |
27400-79840-000 |
US $386.40 |
||
|
9
|
9
09246-08004-000 PLUG,3/8PT H:44WD; 2009-01-01~ |
09246-08004-000 |
US $1.68 |
||
|
10
|
10
09364-06007-000 UNION4WD; 2009-01-01~ |
09364-06007-000 |
US $17.70 |
||
|
11
|
11
09364-08017-000 UNION4WD; 2009-01-01~ |
09364-08017-000 |
US $62.90 |
||
|
12
|
12
27453-63J00-230 SHIM,DIFF SIDE T:2.304WD; 2009-01-01~ |
27453-63J00-230 |
US $6.51 |
||
|
12
|
12
27453-63J00-235 SHIM,DIFF SIDE T:2.354WD; 2009-01-01~ |
27453-63J00-235 |
US $6.51 |
||
|
12
|
12
27453-63J00-240 SHIM,DIFF SIDE T:2.404WD; 2009-01-01~ |
27453-63J00-240 |
US $6.51 |
||
|
12
|
12
27453-63J00-245 SHIM,DIFF SIDE T:2.454WD; 2009-01-01~ |
27453-63J00-245 |
US $6.51 |
||
|
12
|
12
27453-63J00-250 SHIM,DIFF SIDE T:2.504WD; 2009-01-01~ |
27453-63J00-250 |
US $6.51 |
||
|
12
|
12
27453-63J00-255 SHIM,DIFF SIDE T:2.554WD; 2009-01-01~ |
27453-63J00-255 |
US $6.51 |
||
|
12
|
12
27453-63J00-260 SHIM,DIFF SIDE T:2.604WD; 2009-01-01~ |
27453-63J00-260 |
US $6.51 |
||
|
12
|
12
27453-63J00-265 SHIM,DIFF SIDE T:2.654WD; 2009-01-01~ |
27453-63J00-265 |
US $6.51 |
||
|
12
|
12
27453-63J00-270 SHIM,DIFF SIDE T:2.704WD; 2009-01-01~ |
27453-63J00-270 |
US $6.51 |
||
|
12
|
12
27453-63J10-000 SHIM,DIFF SIDE T:0.454WD; 2009-01-01~ |
27453-63J10-000 |
US $2.61 |
||
|
13
|
13
27780-79J02-000
FLANGE,DRIVE SHAFT
4WD; 2009-01-01~ |
27780-79J02-000 |
— | ||
| replacement | |||||
|
13
|
13
27780-79J10-000 FLANGE,DRIVE SHAFT4WD; 2009-01-01~ |
27780-79J10-000 |
US $107.06 |
||
|
14
|
14
09119-10040-000 BOLT(10X25)4WD; 2009-01-01~ |
09119-10040-000 |
US $1.92 |
||
|
15
|
15
09381-24006-000 RING4WD; 2009-01-01~ |
09381-24006-000 |
US $13.20 |
||
|
16
|
16
09103-10309-000 BOLT(10X16)4WD; 2009-01-01~ |
09103-10309-000 |
US $1.67 |
||
|
17
|
17
09159-24011-000 NUT4WD; 2009-01-01~ |
09159-24011-000 |
US $137.60 |
||
|
18
|
18
09160-35002-000 WASHER(35X46X1)4WD; 2009-01-01~ |
09160-35002-000 |
from US $1.40 |
||
|
18
|
18
09160-35003-000 WASHER(35X46X1.1)4WD; 2009-01-01~ |
09160-35003-000 |
from US $1.96 |
||
|
18
|
18
09160-35004-000 WASHER(35X46X1.2)4WD; 2009-01-01~ |
09160-35004-000 |
from US $1.78 |
||
|
18
|
18
09160-35006-000 WASHER(35X46X0.9)4WD; 2009-01-01~ |
09160-35006-000 |
from US $1.60 |
||
|
18
|
18
09160-35008-000 WASHER(35X46X0.95)Washer (35x46x0.95) 4WD; 2009-01-01~ |
09160-35008-000 |
from US $6.70 |
||
|
18
|
18
09160-35009-000 WASHER(35X46X1.05)4WD; 2009-01-01~ |
09160-35009-000 |
from US $6.70 |
||
|
18
|
18
09160-35010-000 WASHER(35X46X1.15)4WD; 2009-01-01~ |
09160-35010-000 |
from US $6.49 |
||
|
19
|
19
09164-15003-000 WASHER4WD; 2009-01-01~ |
09164-15003-000 |
from US $0.95 |
||
|
20
|
20
09164-35003-000 WASHER4WD; 2009-01-01~ |
09164-35003-000 |
from US $3.74 |
||
|
21
|
21
09205-05016-000 PIN,SPRING(5X32)4WD; 2009-01-01~ |
09205-05016-000 |
US $1.12 |
||
|
22
|
22
09246-16010-000 PLUG4WD; 2009-01-01~ |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
22
|
22
09246-16021-000 Plug,t/m Oil Drain4WD; 2009-01-01~ |
09246-16021-000 |
from US $4.01 |
||
|
23
|
23
09246-16010-000 PLUG4WD; 2009-01-01~ |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
23
|
23
09246-16021-000 Plug,t/m Oil Drain4WD; 2009-01-01~ |
09246-16021-000 |
from US $4.01 |
||
|
24
|
24
09265-25034-000 BEARING(25X62X18.25)4WD; 2009-01-01~ |
09265-25034-000 |
US $31.20 |
||
|
25
|
25
09265-30010-000 BEARING(30X72X20.75)4WD; 2009-01-01~ |
09265-30010-000 |
US $45.60 |
||
|
26
|
26
09265-35013-000 BEARING(35X62X20)4WD; 2009-01-01~ |
09265-35013-000 |
US $24.80 |
||
|
27
|
27
09283-50010-000 SEAL,OIL(49.9X64X7)4WD; 2009-01-01~ |
09283-50010-000 |
from US $5.96 |
||
|
28
|
28
01550-0855A-000 BOLTBolt, gear holder 4WD; 2009-01-01~ |
01550-0855A-000 |
from US $1.22 |
||
|
29
|
29
01550-0890A-000 Bolt4WD; 2009-01-01~ |
01550-0890A-000 |
from US $3.62 |
||
|
30
|
30
29521-74C00-000 SHIM,BEVEL PINION T:0.604WD; 2009-01-01~ |
29521-74C00-000 |
US $4.31 |
||
|
30
|
30
29521-74C10-000 SHIM,T/F PINION BRG T:0.634WD; 2009-01-01~ |
29521-74C10-000 |
US $4.31 |
||
|
30
|
30
29521-74C20-000 SHIM,T/F PINION BRG T:0.664WD; 2009-01-01~ |
29521-74C20-000 |
US $4.31 |
||
|
30
|
30
29521-74C30-000 SHIM,T0.694WD; 2009-01-01~ |
29521-74C30-000 |
US $4.31 |
||
|
30
|
30
29521-74C40-000 SHIM,BEVEL PINION T:0.724WD; 2009-01-01~ |
29521-74C40-000 |
US $2.74 |
||
|
30
|
30
29521-74C50-000 SHIM,T/F PINION BRG T:0.754WD; 2009-01-01~ |
29521-74C50-000 |
US $2.74 |
||
|
30
|
30
29521-74C60-000 SHIM,T/F PINION BRG T:0.784WD; 2009-01-01~ |
29521-74C60-000 |
US $2.74 |
||
|
30
|
30
29521-74C70-000 SHIM,BEVEL PINION T:0.814WD; 2009-01-01~ |
29521-74C70-000 |
US $2.74 |
||
|
30
|
30
29521-74C80-000 SHIM,BEVEL PINION T:0.844WD; 2009-01-01~ |
29521-74C80-000 |
US $2.74 |
||
|
30
|
30
29521-74C90-000 SHIM,T/F PINION BRG T:0.874WD; 2009-01-01~ |
29521-74C90-000 |
US $4.31 |
||
|
30
|
30
09181-30001-000 SHIM(30X38X0.3)4WD; 2009-01-01~ |
09181-30001-000 |
US $8.50 |
||
|
31
|
31
27991-65D01-000 PLUG,BREATHER4WD; 2009-01-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
32
|
32
09352-50823-600
HOSE(5X8.2X600)
L:600>90; 4WD; 2009-01-01~ |
09352-50823-600 |
— | ||
| replacements | |||||
|
32
|
32
44420-44AR0-000 HOSE SET,FUELL:600>90; 4WD; 2009-01-01~ |
44420-44AR0-000 |
US $11.95 |
||
|
32
|
32
09352-50005-600 Hose(5X8.2X600)L:600>90; 4WD; 2009-01-01~ |
09352-50005-600 |
US $4.10 |
||
|
33
|
33
09352-70113-600
HOSE(7X11X600)
L:600>110; 4WD; 2009-01-01~ |
09352-70113-600 |
— | ||
| replacement | |||||
|
33
|
33
09352-70119-600 Hose(7X11X600)L:600>110; 4WD; 2009-01-01~ |
09352-70119-600 |
from US $4.64 |
||
|
34
|
34
09352-70113-600
HOSE(7X11X600)
L:600>200; 4WD; 2009-01-01~ |
09352-70113-600 |
— | ||
| replacement | |||||
|
34
|
34
09352-70119-600 Hose(7X11X600)L:600>200; 4WD; 2009-01-01~ |
09352-70119-600 |
from US $4.64 |
||
|
35
|
35
09367-08005-000 3 WAY3 way (fltr to pump) 4WD; 2009-01-01~ |
09367-08005-000 |
from US $6.58 |
||
|
36
|
36
09403-11314-000 CLAMP4WD; 2009-01-01~ |
09403-11314-000 |
from US $5.20 |
||
|
37
|
37
08316-1010A-000 NUTNut, kick starter 4WD; 2009-01-01~ |
08316-1010A-000 |
from US $0.76 |
||
