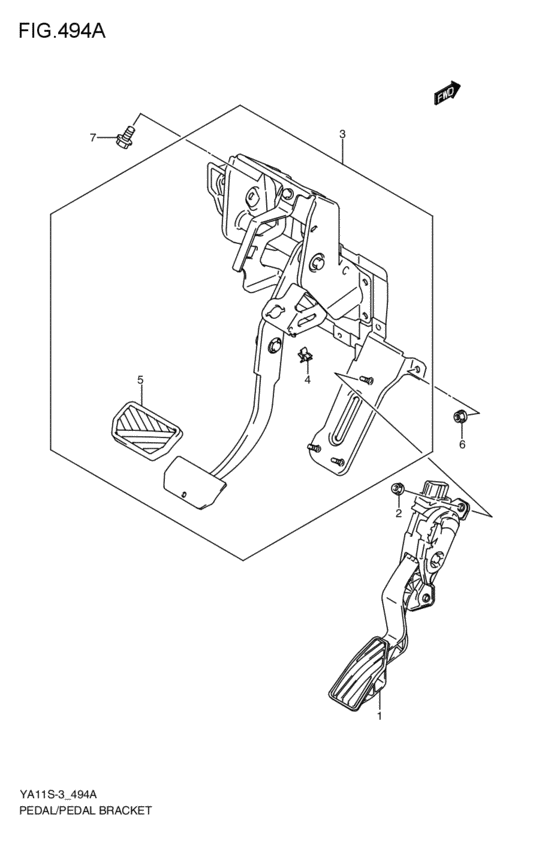

pedal / pedal bracket (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49400-79J40-000
Pedal assy,accelerator
2009-01-01~ |
49400-79J40-000 |
— | ||
| replacement | |||||
|
1
|
1
49400-79J41-000 PEDAL ASSY,ACCELERATOR2009-01-01~ |
49400-79J41-000 |
US $534.35 |
||
|
2
|
2
09159-06076-000 NUT2009-01-01~ |
09159-06076-000 |
from US $1.28 |
||
|
3
|
3
49600-80J11-000
Pedal assy,brake & clutch
2009-01-01~ |
49600-80J11-000 |
— | ||
| replacement | |||||
|
3
|
3
49600-80J12-000 PEDAL ASSY,BRAKE&CLUTCH2009-01-01~ |
49600-80J12-000 |
US $161.55 |
||
|
4
|
4
75411-76G00-000 CLAMP,CABLE2009-01-01~ |
75411-76G00-000 |
US $2.39 |
||
|
5
|
5
49751-58J10-000 PAD,PEDAL2009-01-01~ |
49751-58J10-000 |
from US $4.91 |
||
|
6
|
6
09159-08127-000 NUT2009-01-01~ |
09159-08127-000 |
US $9.90 |
||
|
7
|
7
01551-0816C-000 Bolt2009-01-01~ |
01551-0816C-000 |
from US $0.96 |
||
