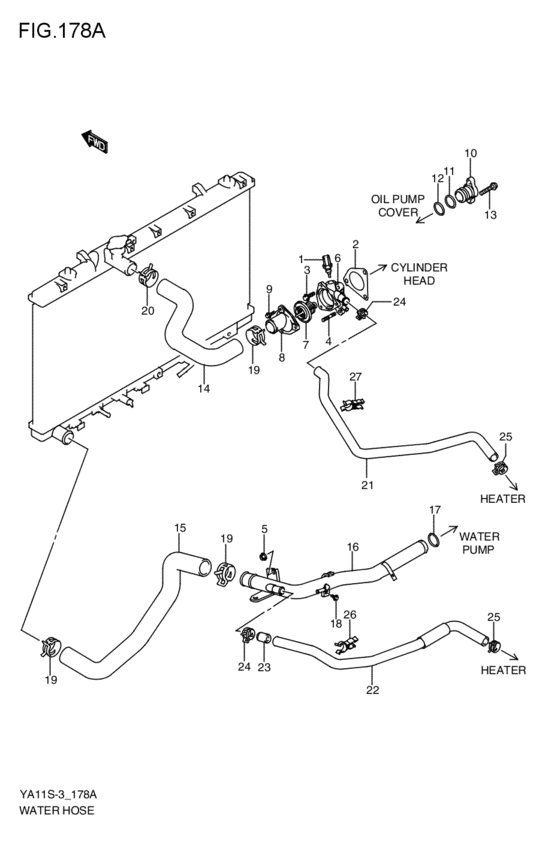

water hose (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-73H00-000 Sensor,water Temp2009-01-01~ |
13650-73H00-000 |
from US $28.19 |
||
|
2
|
2
17699-54LA0-000 GASKET,WATER OUTLET CAP2009-01-01~ |
17699-54LA0-000 |
US $4.48 |
||
|
3
|
3
01550-0825A-000 BOLT2009-01-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01421-0825A-000 BOLT,STUD2009-01-01~ |
01421-0825A-000 |
from US $1.12 |
||
|
5
|
5
08316-1008A-000 NUTNut, idle gear shaft 2009-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
6
|
6
17690-54LA0-000 CASE,THERMOSTAT2009-01-01~ |
17690-54LA0-000 |
US $49.60 |
||
|
7
|
7
17670-66D01-000
Thermostat,wtr(88?c)
2009-01-01~ |
17670-66D01-000 |
— | ||
| replacement | |||||
|
7
|
7
17670-66M00-000 THERMOSTAT,WATER2009-01-01~ |
17670-66M00-000 |
from US $25.60 |
||
|
8
|
8
17561-54LA0-000 CAP,WATER THERMOSTAT2009-01-01~ |
17561-54LA0-000 |
from US $20.84 |
||
|
9
|
9
01550-0620A-000 BOLT2009-01-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
10
|
10
17581-69G00-000 CAP,WATER OUTLET2009-01-01~ |
17581-69G00-000 |
from US $36.54 |
||
|
11
|
11
17582-54D00-000 O-RING,NO.1 D:3.5 ID:30.72009-01-01~ |
17582-54D00-000 |
from US $2.24 |
||
|
12
|
12
17583-54D00-000 O-RING,NO.2 D:3.8 ID:27.72009-01-01~ |
17583-54D00-000 |
from US $2.72 |
||
|
13
|
13
01550-0845A-000 BOLTBolt, oil pump (s) 2009-01-01~ |
01550-0845A-000 |
US $5.03 |
||
|
14
|
14
17852-54LA0-000 HOSE,RADIATOR INLET2009-01-01~ |
17852-54LA0-000 |
from US $25.20 |
||
|
15
|
15
17854-54LA0-000 HOSE,RADIATOR OUTLET2009-01-01~ |
17854-54LA0-000 |
from US $30.11 |
||
|
16
|
16
17840-54LA0-000 PIPE,WATER INLET2009-01-01~ |
17840-54LA0-000 |
US $88.93 |
||
|
17
|
17
09280-28008-000 O RING(D:3.5,ID:27.7)2009-01-01~ |
09280-28008-000 |
from US $0.63 |
||
|
18
|
18
01550-0612A-000 BOLT2009-01-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
09401-35403-000 CLIP2009-01-01~ |
09401-35403-000 |
from US $2.56 |
||
|
20
|
20
09401-35403-000 CLIP2009-01-01~ |
09401-35403-000 |
from US $2.56 |
||
|
21
|
21
17871-54LA0-000 HOSE,HEATER INLET2009-01-01~ |
17871-54LA0-000 |
US $67.20 |
||
|
22
|
22
17872-54LA0-000 HOSE,HEATER OUTLET2009-01-01~ |
17872-54LA0-000 |
US $67.20 |
||
|
23
|
23
17879-54LA0-000 SPACER,HTR HOSE2009-01-01~ |
17879-54LA0-000 |
US $3.65 |
||
|
24
|
24
09401-21405-000 CLIP2009-01-01~ |
09401-21405-000 |
US $1.60 |
||
|
25
|
25
09401-21405-000 CLIP2009-01-01~ |
09401-21405-000 |
US $1.60 |
||
|
26
|
26
09408-00166-000 CLAMP2009-01-01~ |
09408-00166-000 |
US $33.50 |
||
|
27
|
27
09408-00186-000 CLAMP2009-01-01~ |
09408-00186-000 |
US $26.90 |
||
