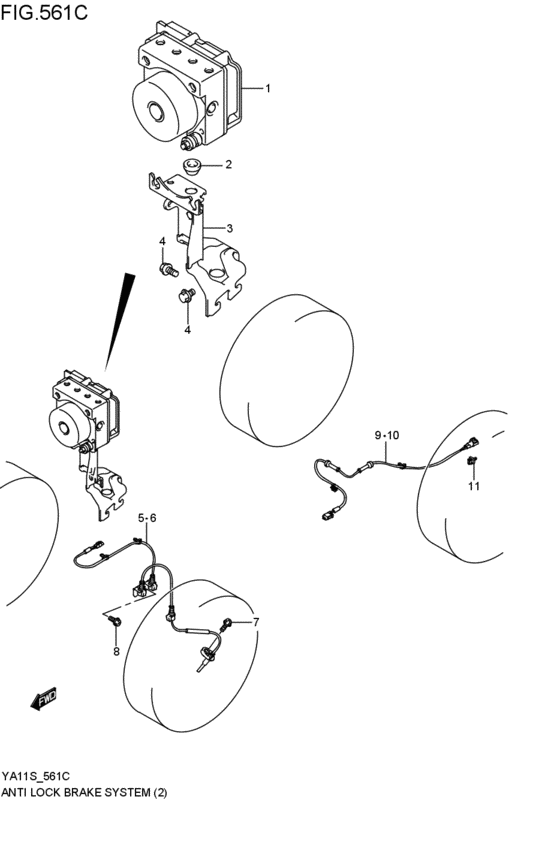

antilock brake system (4WD; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-80J92-000 ACTUATOR ASSY,ABS4WD:(E,F,FS,FC,G,Q,QS,R,RS); 2006-05-01~ |
56110-80J92-000 |
US $1,182.72 |
||
|
2
|
2
56121-58J00-000 DAMPER,ACTUATOR MOUNT4WD; 2006-05-01~ |
56121-58J00-000 |
US $3.39 |
||
|
3
|
3
56161-80J10-000 BRACKET,ACTUATOR4WD:(E,F,FS,FC,G,Q,QS,R,RS); 2006-05-01~ |
56161-80J10-000 |
US $23.18 |
||
|
4
|
4
01551-0812A-000 Bolt4WD; 2006-05-01~ |
01551-0812A-000 |
US $13.20 |
||
|
5
|
5
56210-79J00-000
Sensor comp,fr wheel,r
4WD; 2006-05-01~ |
56210-79J00-000 |
— | ||
| replacement | |||||
|
5
|
5
56210-79J10-000 SENSOR,FR WHEEL,R4WD; 2006-05-01~ |
56210-79J10-000 |
US $116.29 |
||
|
6
|
6
56220-79J00-000
Sensor comp,fr wheel,l
4WD; 2006-05-01~ |
56220-79J00-000 |
— | ||
| replacement | |||||
|
6
|
6
56220-79J10-000 SENSOR,FR WHEEL,L4WD; 2006-05-01~ |
56220-79J10-000 |
US $116.29 |
||
|
7
|
7
02162-0616A-000 SCREW4WD; 2006-05-01~ |
02162-0616A-000 |
from US $3.01 |
||
| replacement | |||||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 4WD; 2006-05-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 4WD; 2006-05-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
56315-79J00-000 HARNESS,RR WHEEL SENSOR,R4WD; 2006-05-01~ |
56315-79J00-000 |
US $94.40 |
||
|
10
|
10
56325-79J00-000 HARNESS,RR WHEEL SENSOR,L4WD; 2006-05-01~ |
56325-79J00-000 |
US $94.40 |
||
|
11
|
11
56324-50E51-000 CLAMP,WHEEL SENSOR HARNESS4WD; 2006-05-01~ |
56324-50E51-000 |
US $1.60 |
||
