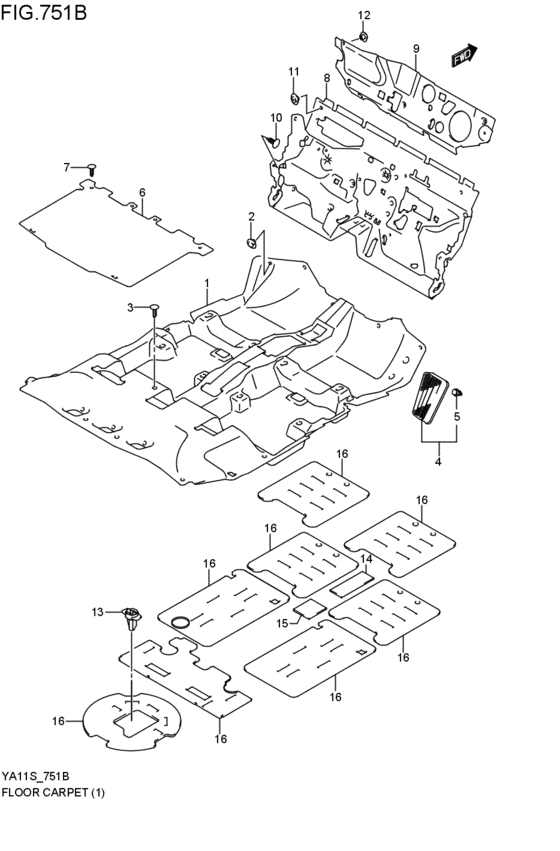

floor mat / carpet (5DR; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75110-80J30-S01
Carpet comp,floor
グレ-; 5DR:4WD; 2006-05-01~ |
75110-80J30-S01 |
— | ||
| replacement | |||||
|
1
|
1
75110-80J31-S01
CARPET,FL
グレ-; 5DR:4WD; 2006-05-01~ |
75110-80J31-S01 |
— | ||
|
2
|
2
09148-05037-000 CLIP5DR; 2006-05-01~ |
09148-05037-000 |
US $1.28 |
||
|
3
|
3
09409-10302-P4Z CLIP(GRAY)グレ-; 5DR; 2006-05-01~ |
09409-10302-P4Z |
US $12.90 |
||
|
4
|
4
75441-80J01-000 PEDAL,FOOTREST5DR; 2006-05-01~ |
75441-80J01-000 |
US $9.20 |
||
|
5
|
5
09409-08340-000 CLIP5DR; 2006-09-01~ |
09409-08340-000 |
US $17.30 |
||
|
5
|
5
09409-11304-000 CLIP5DR; 2006-05-01~2006-08-01 |
09409-11304-000 |
US $2.08 |
||
|
6
|
6
75130-80J00-S01 CARPET,LUGGAGE FLグレ-; 5DR:(E,G,R,RS,S,T); 2006-05-01~ |
75130-80J00-S01 |
US $128.06 |
||
|
7
|
7
87421-76G00-P4Z CLIP(GRAY)グレ-; 5DR; 2006-05-01~ |
87421-76G00-P4Z |
US $1.99 |
||
|
8
|
8
75220-80J00-000
SILENCER,DASH PANEL
5DR; 2006-05-01~ |
75220-80J00-000 |
— | ||
|
9
|
9
75280-80J00-000 SILENCER,DASH OUTER5DR; 2006-05-01~ |
75280-80J00-000 |
US $77.65 |
||
|
10
|
10
09409-10302-P4Z CLIP(GRAY)グレ-; 5DR; 2006-05-01~ |
09409-10302-P4Z |
US $12.90 |
||
|
11
|
11
09148-05037-000 CLIP5DR; 2006-05-01~ |
09148-05037-000 |
US $1.28 |
||
|
12
|
12
09148-05037-000 CLIP5DR; 2006-05-01~ |
09148-05037-000 |
US $1.28 |
||
|
13
|
13
75450-80J00-000
HOLDER,SPARE TIRE
5DR; 2006-05-01~ |
75450-80J00-000 |
— | ||
|
14
|
14
69133-75H00-000 SHEET,BACK DR OTR CTR5DR; 2006-05-01~ |
69133-75H00-000 |
US $5 |
||
|
15
|
15
75231-79J00-000 SHEET,COWL UPPER PANEL5DR; 2006-05-01~ |
75231-79J00-000 |
US $5.59 |
||
|
16
|
16
99611-60A01-000 SHEET,SILENCER 800X1000X35DR; 2006-05-01~ |
99611-60A01-000 |
US $62.40 |
||
