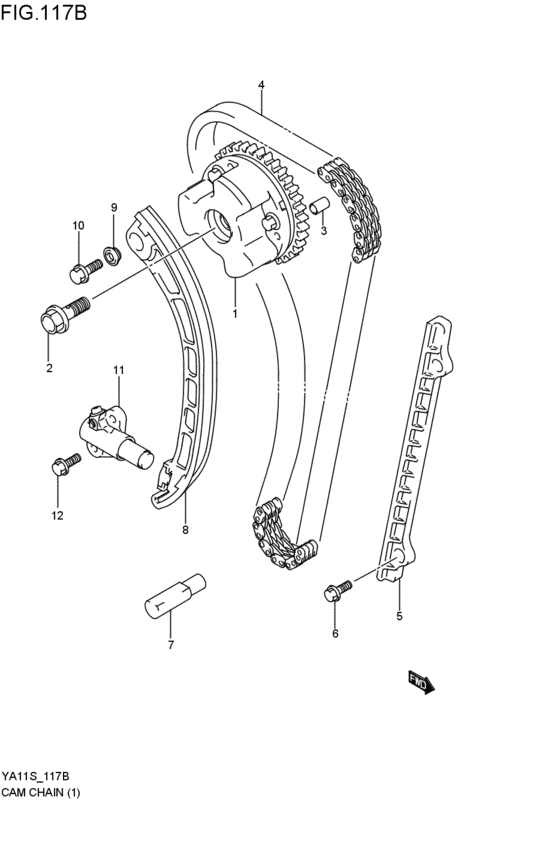

cam chain (M15A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12740-54GE1-000 SPROCKET ASSY,CAMSHAFT TIMINGM15A; 2006-05-01~ |
12740-54GE1-000 |
US $387.20 |
||
|
2
|
2
12753-69GE1-000
BOLT,CAMSHAFT TIMING
M15A; 2006-05-01~ |
12753-69GE1-000 |
— | ||
| replacement | |||||
|
2
|
2
12753-69GE2-000 BOLT,CAMSHAFT TIMINGM15A; 2006-05-01~ |
12753-69GE2-000 |
US $4.64 |
||
|
3
|
3
09206-05001-000 PIN(3.4X5X10)M15A; 2006-05-01~ |
09206-05001-000 |
US $1.12 |
||
|
4
|
4
12761-54G00-000 CHAIN,TIMINGM15A; 2006-05-01~ |
12761-54G00-000 |
US $104 |
||
|
5
|
5
12771-54G01-000
ガイド,タイミングチェーンNO.1
M15A; 2006-05-01~ |
12771-54G01-000 |
— | ||
| replacement | |||||
|
5
|
5
12771-61M00-000 GUIDE,TIMING CHAIN NO.1M15A; 2006-05-01~ |
12771-61M00-000 |
US $22.40 |
||
|
6
|
6
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide M15A; 2006-05-01~ |
12776-85FA0-000 |
US $3.04 |
||
|
7
|
7
12781-69G00-000 JET,TIMING CHAINM15A; 2006-05-01~ |
12781-69G00-000 |
US $8.48 |
||
|
8
|
8
12811-69G02-000 TENSIONER,TIMING CHAINM15A; 2006-05-01~ |
12811-69G02-000 |
US $82.40 |
||
|
9
|
9
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner M15A; 2006-05-01~ |
12812-73G10-000 |
US $4.48 |
||
|
10
|
10
01550-0830A-000 BOLTBolt, mount oil seal cover M15A; 2006-05-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
11
|
11
12831-69G00-000
Adjuster assy,tensioner
M15A; 2006-05-01~ |
12831-69G00-000 |
— | ||
| replacement | |||||
|
11
|
11
12831-69G10-000 ADJUSTER ASSY,TENSIONERM15A; 2006-05-01~ |
12831-69G10-000 |
US $112.48 |
||
|
12
|
12
01550-0620A-000 BOLTM15A; 2006-05-01~ |
01550-0620A-000 |
from US $0.76 |
||
