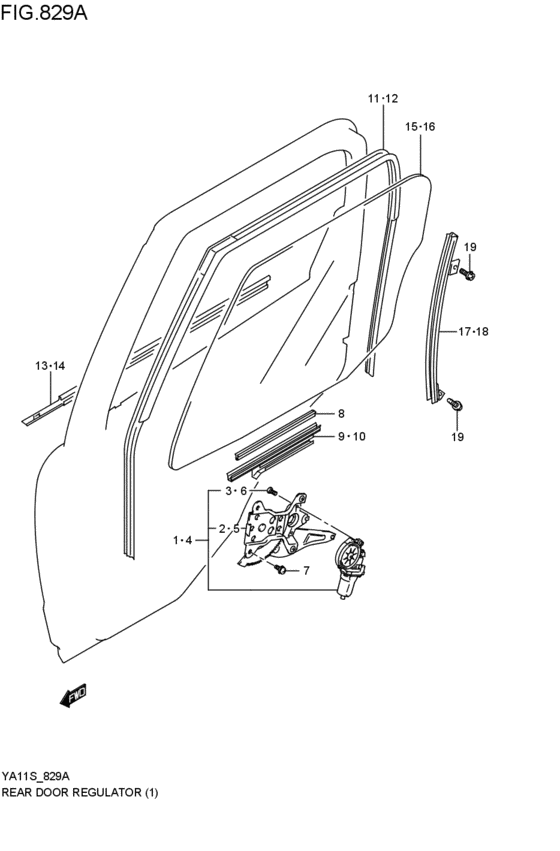

rear door regulator (5DR; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83501-79J10-000
Regulator assy,rear window,r
5DR; 2006-05-01~ |
83501-79J10-000 |
— | ||
| replacement | |||||
|
1
|
1
83501-79J12-000 REGULATOR ASSY,RR WINDOW,R5DR; 2006-05-01~ |
83501-79J12-000 |
US $213.44 |
||
|
2
|
2
83510-79J10-000
Regulator s/assy,rr wdo,r
5DR; 2006-05-01~ |
83510-79J10-000 |
— | ||
| replacement | |||||
|
2
|
2
83510-79J11-000 REGULATOR ASSY,RR WDO,R5DR; 2006-05-01~ |
83510-79J11-000 |
US $66.24 |
||
|
3
|
3
09139-05063-000 SCREW(5X11)5DR; 2006-05-01~ |
09139-05063-000 |
US $11.40 |
||
|
4
|
4
83502-79J10-000
Regulator assy,rear window,l
5DR; 2006-05-01~ |
83502-79J10-000 |
— | ||
| replacement | |||||
|
4
|
4
83502-79J12-000 REGULATOR ASSY,RR WINDOW,L5DR; 2006-05-01~ |
83502-79J12-000 |
US $213.44 |
||
|
5
|
5
83540-79J10-000
Regulator s/assy,rr wdo,l
5DR; 2006-05-01~ |
83540-79J10-000 |
— | ||
| replacement | |||||
|
5
|
5
83540-79J11-000 REGULATOR ASSY,RR WINDOW,L5DR; 2006-05-01~ |
83540-79J11-000 |
US $66.24 |
||
|
6
|
6
09139-05063-000 SCREW(5X11)5DR; 2006-05-01~ |
09139-05063-000 |
US $11.40 |
||
|
7
|
7
02112-7612A-000 SCREW5DR; 2006-05-01~ |
02112-7612A-000 |
from US $0.92 |
||
| replacement | |||||
|
7
|
7
02112-7612B-000 SCREW5DR; 2006-05-01~ |
02112-7612B-000 |
from US $0.96 |
||
|
8
|
8
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNEL5DR; 2006-05-01~ |
83691-60A00-000 |
US $2.56 |
||
|
9
|
9
83630-72J00-000 CHANNEL,RR GLASS BOTTOM,R5DR; 2006-05-01~ |
83630-72J00-000 |
US $19.20 |
||
|
10
|
10
83640-72J00-000 CHANNEL,RR GLASS BOTTOM,L5DR; 2006-05-01~ |
83640-72J00-000 |
US $19.20 |
||
|
11
|
11
83671-80J00-000 RUN,RR DOOR GLASS,R5DR; 2006-05-01~ |
83671-80J00-000 |
US $93.84 |
||
|
12
|
12
83675-80J00-000 RUN,RR DOOR GLASS,L5DR; 2006-05-01~ |
83675-80J00-000 |
US $93.84 |
||
|
13
|
13
83831-80J00-000 WEATHERSTRIP,RR DR OUT,R5DR; 2006-05-01~ |
83831-80J00-000 |
US $82.40 |
||
|
14
|
14
83841-80J00-000 WEATHERSTRIP,RR DR OUT,L5DR; 2006-05-01~ |
83841-80J00-000 |
from US $52.81 |
||
|
15
|
15
84541-80J20-000 GLASS,RR DR WINDOW,R(DARK)CENTRAL; 5DR; 2006-05-01~ |
84541-80J20-000 |
from US $144.09 |
||
|
16
|
16
84546-80J20-000 GLASS,RR DR WINDOW,L(DARK)CENTRAL; 5DR; 2006-05-01~ |
84546-80J20-000 |
US $165.60 |
||
|
17
|
17
81770-79J00-000 SASH,RR DOOR REAR,R5DR; 2006-05-01~ |
81770-79J00-000 |
US $13.14 |
||
|
18
|
18
81780-79J00-000 SASH,RR DOOR REAR,L5DR; 2006-05-01~ |
81780-79J00-000 |
US $17.11 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket 5DR; 2006-05-01~ |
02162-0612A-000 |
from US $0.80 |
||
