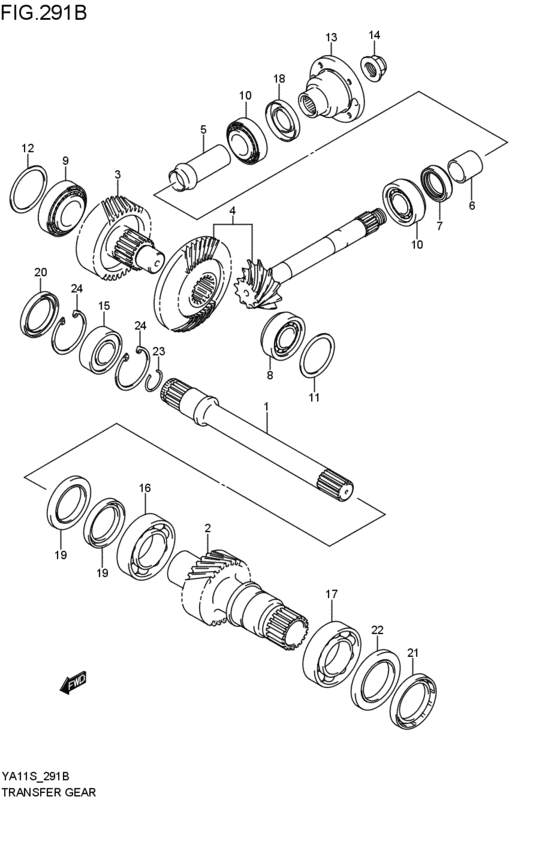

transfer gear (4WD; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27811-80J30-000
シャフト,ドライブインターミディエート
4WD:M15A; 2006-05-01~ |
27811-80J30-000 |
— | ||
| replacements | |||||
|
1
|
1
09381-25006-000 RING,SNAP4WD:M15A; 2006-05-01~ |
09381-25006-000 |
US $13.20 |
||
|
1
|
1
27811-80J31-000 SHAFT,DRIVE INTERMEDIATE4WD:M15A; 2006-05-01~ |
27811-80J31-000 |
US $130.64 |
||
|
2
|
2
29111-80J30-000
Gear,reduction drive
4WD:M15A; 2006-05-01~ |
29111-80J30-000 |
— | ||
| replacement | |||||
|
2
|
2
29111-80J31-000 GEAR,REDUCTION DRIVE4WD:M15A; 2006-05-01~ |
29111-80J31-000 |
US $338.56 |
||
|
3
|
3
29131-80J00-000
ギヤ,リダクションドリブン
4WD; 2006-05-01~ |
29131-80J00-000 |
— | ||
| replacement | |||||
|
3
|
3
29131-80J01-000 GEAR,REDUCTION DRIVE4WD; 2006-05-01~ |
29131-80J01-000 |
US $292.56 |
||
|
4
|
4
27300-81890-000 BEVEL PINION&GEAR SET4WD; 2006-05-01~ |
27300-81890-000 |
US $482.24 |
||
|
5
|
5
27315-75F90-000 SPACER,T/F OUTPUT PINION4WD; 2006-05-01~ |
27315-75F90-000 |
US $39.20 |
||
|
6
|
6
27316-80J00-000 SPACER,T/F OUTPUT PINION NO.24WD; 2006-05-01~ |
27316-80J00-000 |
US $35.20 |
||
|
7
|
7
24151-64J00-000 SEAL,PUMP4WD; 2006-05-01~ |
24151-64J00-000 |
from US $10.67 |
||
|
8
|
8
27390-80J00-000 BEARING ASSY,T/F INPUT,L4WD; 2006-05-01~ |
27390-80J00-000 |
US $50.05 |
||
|
9
|
9
27390-80J10-000
Bearing assy,t/f input right
4WD; 2006-05-01~ |
27390-80J10-000 |
— | ||
| replacement | |||||
|
9
|
9
09265-35014-000 BEARING(35X72X28.75)4WD; 2006-05-01~ |
09265-35014-000 |
US $34.78 |
||
|
10
|
10
27390-80J20-000
Bearing assy,t/f output
4WD; 2006-05-01~ |
27390-80J20-000 |
— | ||
| replacement | |||||
|
10
|
10
09265-25042-000 BEARING(25X62X21.25)4WD; 2006-05-01~ |
09265-25042-000 |
US $52.62 |
||
|
11
|
11
29261-80J10-060 SHIM,T/F INPUT T:0.60,L4WD; 2006-05-01~ |
29261-80J10-060 |
US $5.81 |
||
|
11
|
11
29261-80J10-065 SHIM,T/F INPUT T:0.65,L4WD; 2006-05-01~ |
29261-80J10-065 |
US $5.81 |
||
|
11
|
11
29261-80J10-070 SHIM,T/F INPUT T:0.70,L4WD; 2006-05-01~ |
29261-80J10-070 |
US $5.81 |
||
|
11
|
11
29261-80J10-075 SHIM,T/F INPUT T:0.75,L4WD; 2006-05-01~ |
29261-80J10-075 |
US $5.81 |
||
|
11
|
11
29261-80J10-080 SHIM,T/F INPUT T:0.80,L4WD; 2006-05-01~ |
29261-80J10-080 |
US $5.81 |
||
|
11
|
11
29261-80J10-085 SHIM,T/F INPUT T:0.85,L4WD; 2006-05-01~ |
29261-80J10-085 |
US $5.81 |
||
|
11
|
11
29261-80J10-090 SHIM,T/F INPUT T:0.90,L4WD; 2006-05-01~ |
29261-80J10-090 |
US $5.81 |
||
|
11
|
11
29261-80J10-095 SHIM,T/F INPUT T:0.95,L4WD; 2006-05-01~ |
29261-80J10-095 |
US $5.81 |
||
|
11
|
11
29261-80J10-100 SHIM,T/F INPUT T:1.00,L4WD; 2006-05-01~ |
29261-80J10-100 |
US $5.81 |
||
|
11
|
11
29261-80J10-105 SHIM,T/F INPUT T:1.05,L4WD; 2006-05-01~ |
29261-80J10-105 |
US $5.81 |
||
|
12
|
12
29261-80J20-100 SHIM,T/F INPUT T:1.00,R4WD; 2006-05-01~ |
29261-80J20-100 |
US $4.89 |
||
|
12
|
12
29261-80J20-105 SHIM,T/F INPUT T:1.05,R4WD; 2006-05-01~ |
29261-80J20-105 |
US $4.89 |
||
|
12
|
12
29261-80J20-060 SHIM,T/F INPUT T:0.60,R4WD; 2006-05-01~ |
29261-80J20-060 |
US $4.89 |
||
|
12
|
12
29261-80J20-065 SHIM,T/F INPUT T:0.65,R4WD; 2006-05-01~ |
29261-80J20-065 |
US $4.89 |
||
|
12
|
12
29261-80J20-070 SHIM,T/F INPUT T:0.70,R4WD; 2006-05-01~ |
29261-80J20-070 |
US $4.89 |
||
|
12
|
12
29261-80J20-075 SHIM,T/F INPUT T:0.75,R4WD; 2006-05-01~ |
29261-80J20-075 |
US $4.89 |
||
|
12
|
12
29261-80J20-080 SHIM,T/F INPUT T:0.80,R4WD; 2006-05-01~ |
29261-80J20-080 |
US $4.89 |
||
|
12
|
12
29261-80J20-085 SHIM,T/F INPUT T:0.85,R4WD; 2006-05-01~ |
29261-80J20-085 |
US $4.89 |
||
|
12
|
12
29261-80J20-090 SHIM,T/F INPUT T:0.90,R4WD; 2006-05-01~ |
29261-80J20-090 |
US $4.89 |
||
|
12
|
12
29261-80J20-095 SHIM,T/F INPUT T:0.95,R4WD; 2006-05-01~ |
29261-80J20-095 |
US $4.89 |
||
|
13
|
13
29291-75F91-000 FLANGE,T/F OUTPUT4WD; 2006-05-01~ |
29291-75F91-000 |
US $174.40 |
||
|
14
|
14
09159-20012-000 NUT4WD; 2006-05-01~ |
09159-20012-000 |
US $89.10 |
||
|
15
|
15
09262-28041-000 BEARING(28X58X16)4WD; 2006-05-01~ |
09262-28041-000 |
from US $29.57 |
||
|
16
|
16
09262-40016-000 BEARING(40X80X18)4WD; 2006-05-01~ |
09262-40016-000 |
US $40.48 |
||
|
17
|
17
09262-45010-000 BEARING(45X75X16)4WD; 2006-05-01~ |
09262-45010-000 |
from US $37.17 |
||
|
18
|
18
09283-35054-000
Seal,oil,35x62x9.5
4WD; 2006-05-01~ |
09283-35054-000 |
— | ||
| replacement | |||||
|
18
|
18
09283-35037-000 SEAL,OIL(35X62X9.5)4WD; 2006-05-01~ |
09283-35037-000 |
from US $8.46 |
||
|
19
|
19
09283-40028-000 SEAL,OIL(40X58X9.6)4WD; 2006-05-01~ |
09283-40028-000 |
from US $10.08 |
||
|
20
|
20
09283-40028-000 SEAL,OIL(40X58X9.6)4WD; 2006-05-01~ |
09283-40028-000 |
from US $10.08 |
||
|
21
|
21
09283-44012-000
Oil seal, primary driven lh
4WD; 2006-05-01~ |
09283-44012-000 |
— | ||
| replacement | |||||
|
21
|
21
09283-44018-000 SEAL,OIL(44X62X7)4WD; 2006-05-01~ |
09283-44018-000 |
from US $11.10 |
||
|
22
|
22
09283-44016-000
Seal,oil,44x68x7
4WD; 2006-05-01~ |
09283-44016-000 |
— | ||
| replacement | |||||
|
22
|
22
09283-44017-000 SEAL,OIL(44X68X7.3)4WD; 2006-05-01~ |
09283-44017-000 |
from US $7.47 |
||
|
23
|
23
09381-25002-000 RING,SNAP4WD; 2006-05-01~ |
09381-25002-000 |
from US $1.85 |
||
|
24
|
24
08331-4158A-000 CIRCLIP4WD; 2006-05-01~ |
08331-4158A-000 |
from US $2.56 |
||
