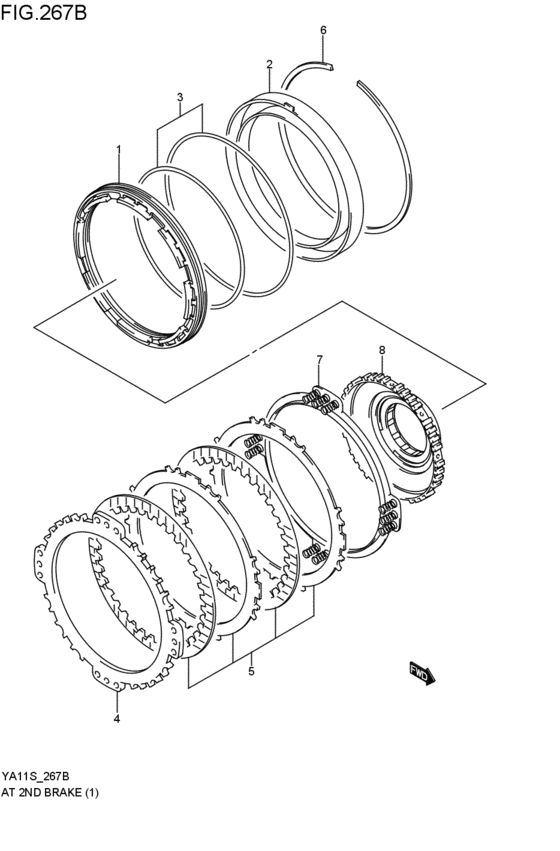

at - second brakes (M15A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- RS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26731-70H10-000 PISTON,2ND BRAKEM15A; 2006-05-01~ |
26731-70H10-000 |
US $35.20 |
||
|
2
|
2
26732-79C10-000 CYLINDER,2ND BRAKE PISTONM15A; 2006-05-01~ |
26732-79C10-000 |
US $20.79 |
||
|
3
|
3
26733-79CT0-000 O-RING SET,2ND BRAKEM15A; 2006-05-01~ |
26733-79CT0-000 |
from US $4.68 |
||
|
4
|
4
26741-79C10-000 PLATE,2ND BRAKE RETAINERM15A; 2006-05-01~ |
26741-79C10-000 |
US $24.80 |
||
|
5
|
5
26742-68JT0-000 DISC SET,2ND BRAKEM15A; 2006-05-01~ |
26742-68JT0-000 |
US $37.60 |
||
|
6
|
6
26744-79C10-000 RING,2ND BRAKE PLATEM15A; 2006-05-01~ |
26744-79C10-000 |
from US $4.28 |
||
|
7
|
7
26750-79C10-000 SPRING ASSY,2ND BRAKEM15A; 2006-05-01~ |
26750-79C10-000 |
US $9.20 |
||
|
8
|
8
26760-68J10-000 CLUTCH ASSY,2ND BKM15A; 2006-05-01~ |
26760-68J10-000 |
US $100 |
