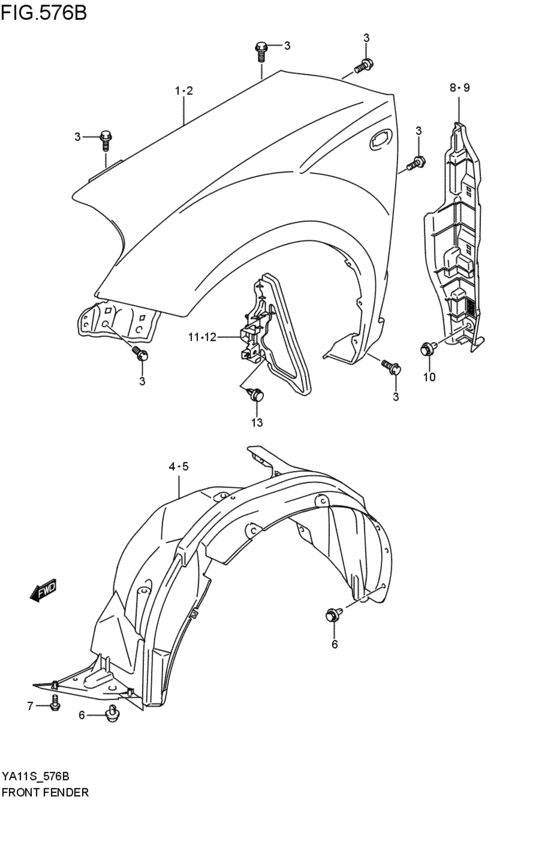

front fender (2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57611-80J30-000
Panel,front fender,r
Q,QS,R,RS,T; 2006-05-01~ |
57611-80J30-000 |
— | ||
| replacement | |||||
|
1
|
1
57600-81810-000 PANEL SET,FR FENDER,RQ,QS,R,RS,T; 2006-05-01~ |
57600-81810-000 |
US $253.92 |
||
|
2
|
2
57711-80J30-000
Panel,front fender,l
Q,QS,R,RS,T; 2006-05-01~ |
57711-80J30-000 |
— | ||
| replacement | |||||
|
2
|
2
57700-80850-000 PANEL SET,FR FENDER,LQ,QS,R,RS,T; 2006-05-01~ |
57700-80850-000 |
US $253.92 |
||
|
3
|
3
01550-0612A-000 BOLT2006-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
72321-80J00-000 LINING,FR FENDER,R2006-05-01~ |
72321-80J00-000 |
US $54.83 |
||
|
5
|
5
72322-80J00-000 LINING,FR FENDER,L2006-05-01~ |
72322-80J00-000 |
US $54.83 |
||
|
6
|
6
09409-07332-000 CLIP2006-05-01~ |
09409-07332-000 |
from US $1.28 |
||
|
7
|
7
09136-05068-000 SCREW(5X20)2006-05-01~ |
09136-05068-000 |
from US $0.96 |
||
|
8
|
8
72351-80J00-000 COVER,FR FENDER,R2006-05-01~ |
72351-80J00-000 |
US $26.86 |
||
|
9
|
9
72352-80J00-000 COVER,FR FENDER,L2006-05-01~ |
72352-80J00-000 |
US $26.86 |
||
|
10
|
10
09409-07332-000 CLIP2006-05-01~ |
09409-07332-000 |
from US $1.28 |
||
