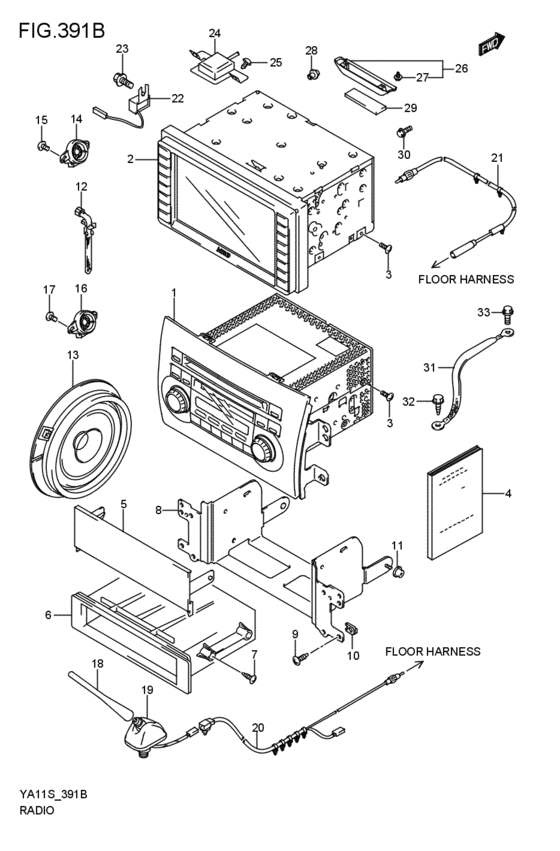

radio (2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- RS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
39920-65JD0-000
ユニットアッシ,ナビ
ナビ シヨウ,CLARION; G,R,RS; 2006-05-01~2007-06-01 |
39920-65JD0-000 |
— | ||
|
2
|
2
39920-65JE0-000
ユニットアッシ,ナビ
ナビ シヨウ,CLARION; G,R,RS; 2007-07-01~ |
39920-65JE0-000 |
— | ||
|
3
|
3
02142-0506A-000 SCREW2006-05-01~ |
02142-0506A-000 |
US $0.80 |
||
|
4
|
4
39103-65JC0-000
マニュアル,ナビ
ナビ シヨウ,CLARION; G,R,RS; 2006-05-01~2007-06-01 |
39103-65JC0-000 |
— | ||
|
4
|
4
39103-65JD0-000
マニュアル,ナビ
ナビ シヨウ; G,R,RS; 2007-07-01~ |
39103-65JD0-000 |
— | ||
|
8
|
8
39321-80JA1-000 BRACKET,TUNERRS; 2006-05-01~ |
39321-80JA1-000 |
US $15.53 |
||
|
9
|
9
03541-0516A-000 SCREW2006-05-01~ |
03541-0516A-000 |
from US $0.76 |
||
|
10
|
10
09148-05045-000 NUT2006-05-01~ |
09148-05045-000 |
from US $0.81 |
||
|
11
|
11
34955-54G10-000 BUSH,RADIO BRKT2006-05-01~ |
34955-54G10-000 |
US $1.44 |
||
|
13
|
13
39102-63J50-000 SPEAKER ASSY2006-05-01~ |
39102-63J50-000 |
US $120.80 |
||
|
14
|
14
39102-79J00-000 SPEAKER ASSY,TWEETER FR4DR:G,5DR; 2006-05-01~ |
39102-79J00-000 |
US $17.26 |
||
|
15
|
15
03541-0410A-000 SCREW2006-05-01~ |
03541-0410A-000 |
from US $0.80 |
||
|
16
|
16
39102-79J10-000 SPEAKER ASSY,TWEETER RR4DR:G,5DR; 2006-05-01~ |
39102-79J10-000 |
US $17.26 |
||
|
17
|
17
03541-0410A-000 SCREW2006-05-01~ |
03541-0410A-000 |
from US $0.80 |
||
|
18
|
18
39251-81J00-000 ROD,ANTENNA5DR; 2006-05-01~ |
39251-81J00-000 |
US $101.84 |
||
|
19
|
19
39253-81J03-000 BASE,ANTENNA5DR; 2006-05-01~ |
39253-81J03-000 |
US $83.54 |
||
|
20
|
20
39271-80J10-000 FEEDER,ANT ROOF5DR; 2006-05-01~ |
39271-80J10-000 |
US $33.12 |
||
|
21
|
21
39270-80JA0-000
フィーダ,アンテナインストゥルメントパネル
ナビ シヨウ; RS; 2006-05-01~ |
39270-80JA0-000 |
— | ||
|
24
|
24
39950-80J00-000 ANTENNA ASSY,GPSナビ シヨウ,CLARION; G,R,RS; 2006-05-01~ |
39950-80J00-000 |
US $63.30 |
||
|
25
|
25
03541-0516A-000 SCREWナビ シヨウ; G,R,RS; 2006-05-01~ |
03541-0516A-000 |
from US $0.76 |
||
|
26
|
26
35819-80J00-000
カバー,アンテナ
ナビ シヨウ; G,R,RS; 2006-05-01~ |
35819-80J00-000 |
— | ||
|
27
|
27
09409-10312-000 CLIPナビ シヨウ; G,R,RS; 2006-05-01~ |
09409-10312-000 |
US $1.76 |
||
|
28
|
28
36993-80J00-000
グロメット,テレビバック
ナビ シヨウ; G,R,RS; 2006-05-01~ |
36993-80J00-000 |
— | ||
|
29
|
29
36930-82010-000 COVER,HARNESSCover, roof wire ナビ シヨウ; G,R,RS; 2006-05-01~ |
36930-82010-000 |
from US $1.73 |
||
|
30
|
30
09115-06005-000 BOLT(6X16)ナビ シヨウ; G,R,RS; 2006-05-01~ |
09115-06005-000 |
US $1.28 |
||
|
31
|
31
39312-78F10-000 WIRE,NOISE SUPPR2006-05-01~ |
39312-78F10-000 |
US $5.76 |
||
|
32
|
32
09115-06005-000 BOLT(6X16)2006-05-01~ |
09115-06005-000 |
US $1.28 |
||
|
33
|
33
09103-06168-000 BOLT(6X10)2006-05-01~ |
09103-06168-000 |
US $1.60 |
