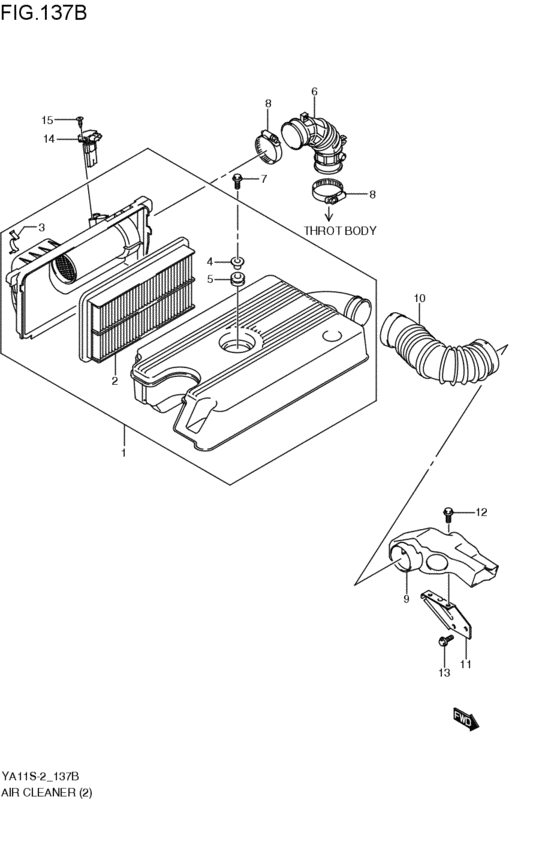

air cleaner (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-80J00-000 CLEANER ASSY,AIRJ20A; 2008-07-01~ |
13700-80J00-000 |
US $290.72 |
||
|
2
|
2
13780-80J00-000 ELEMENT,AIR CLEANERJ20A; 2008-07-01~ |
13780-80J00-000 |
from US $22.30 |
||
|
3
|
3
13755-80J00-000 CLIP,AIR CLEANERJ20A; 2008-07-01~ |
13755-80J00-000 |
US $5.63 |
||
|
4
|
4
13877-80J00-000 COLLAR,AIR CLNRJ20A; 2008-07-01~ |
13877-80J00-000 |
US $5 |
||
|
5
|
5
13878-80J00-000 CUSHION,AIR CLNRJ20A; 2008-07-01~ |
13878-80J00-000 |
US $3.72 |
||
|
6
|
6
13881-80J00-000 HOSE,AIR CLEANER OUTLETJ20A; 2008-07-01~ |
13881-80J00-000 |
US $43.33 |
||
|
7
|
7
01550-0620A-000 BOLTJ20A; 2008-07-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
8
|
8
09402-82511-000 CLAMPJ20A; 2008-07-01~ |
09402-82511-000 |
US $65.90 |
||
|
9
|
9
13765-80J10-000 PIPE,AIR CLNR SUCTIONJ20A; 2008-07-01~ |
13765-80J10-000 |
US $49.68 |
||
|
10
|
10
13766-80J00-000 HOSE,AIR SUCTIONJ20A; 2008-07-01~ |
13766-80J00-000 |
US $52.62 |
||
|
11
|
11
13811-80J00-000 BRACKET,SUCT PIPEJ20A; 2008-07-01~ |
13811-80J00-000 |
US $7.69 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket J20A; 2008-07-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket J20A; 2008-07-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
14
|
14
13800-80J00-000 SENSOR ASSY,MAIN AIR FLOWJ20A; 2008-07-01~ |
13800-80J00-000 |
US $314.64 |
||
|
15
|
15
03511-0410A-000 SCREWJ20A; 2008-07-01~ |
03511-0410A-000 |
from US $2.40 |
