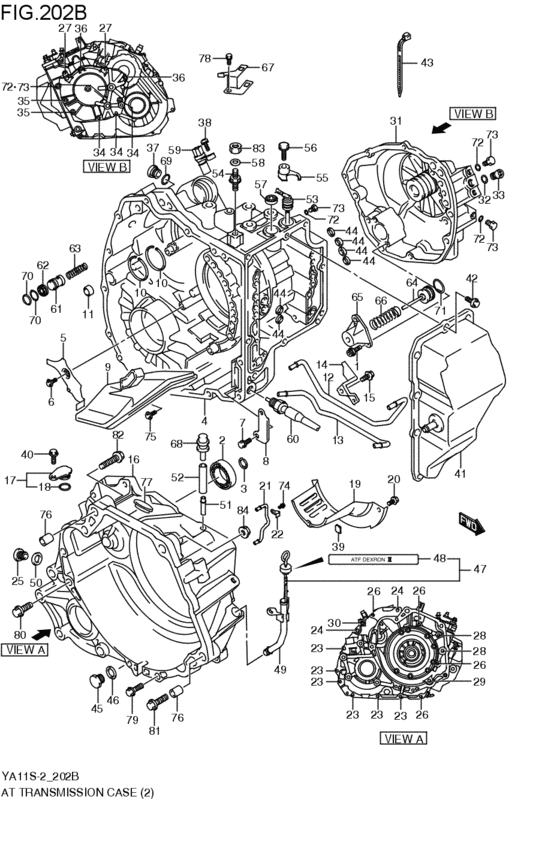

at - transmission case (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22892-59J10-000 BOLT,FWD CL ACCUMULATOR COVERJ20A; 2008-07-01~ |
22892-59J10-000 |
US $3.09 |
||
|
2
|
2
24662-59J10-000 BEARING,COUNTERSHAFT FRJ20A; 2008-07-01~ |
24662-59J10-000 |
US $70.29 |
||
|
3
|
3
24664-59J10-000 SEAL,COUNTERSHAFT FRJ20A; 2008-07-01~ |
24664-59J10-000 |
US $5.59 |
||
|
4
|
4
24710-59J12-000 CASE,T/MJ20A; 2008-07-01~ |
24710-59J12-000 |
US $1,651.20 |
||
|
5
|
5
24711-59J10-000 PLATE,OIL RESERVOIR,LJ20A; 2008-07-01~ |
24711-59J10-000 |
US $5.89 |
||
|
6
|
6
24712-59J10-000 BOLT,OIL RESERVOIR PLATE,LJ20A; 2008-07-01~ |
24712-59J10-000 |
US $2.36 |
||
|
7
|
7
24712-59J10-000 BOLT,OIL RESERVOIR PLATE,LJ20A; 2008-07-01~ |
24712-59J10-000 |
US $2.36 |
||
|
8
|
8
24713-59J10-000 PLATE,T/M CASEJ20A; 2008-07-01~ |
24713-59J10-000 |
US $4.64 |
||
|
9
|
9
24714-59J10-000 STRAINER ASSY,OILJ20A; 2008-07-01~ |
24714-59J10-000 |
from US $109.64 |
||
|
10
|
10
24715-59J10-000 SEAL,U/D CLUTCH DRUMJ20A; 2008-07-01~ |
24715-59J10-000 |
US $9.16 |
||
|
11
|
11
24716-59J10-000 GASKET,GOVERNOR APPLY NO.1J20A; 2008-07-01~ |
24716-59J10-000 |
US $9.90 |
||
|
12
|
12
24717-59J10-000 PIPE,U/D CLUTCHJ20A; 2008-07-01~ |
24717-59J10-000 |
US $12.70 |
||
|
13
|
13
24717-59J30-000 PIPE,DIFF LH BRG LUBRICATIONJ20A; 2008-07-01~ |
24717-59J30-000 |
US $12.70 |
||
|
14
|
14
24718-59J10-000 SPRING,DIFF LEFT LUB RTNGJ20A; 2008-07-01~ |
24718-59J10-000 |
US $24.10 |
||
|
15
|
15
24719-59J10-000 BOLT,DIFF,LH LUB RTNG SPRINGJ20A; 2008-07-01~ |
24719-59J10-000 |
US $4.86 |
||
|
16
|
16
24721-59J10-000 HOUSING,TORQUE CONVERTERJ20A; 2008-07-01~ |
24721-59J10-000 |
US $1,255.60 |
||
|
17
|
17
24721-80J11-000 CAP,SPEEDOMETER SENSORJ20A; 2008-07-01~ |
24721-80J11-000 |
US $19.20 |
||
|
18
|
18
09280-15018-000 O RING(D:2.4,ID:14.8)J20A; 2008-07-01~ |
09280-15018-000 |
US $28 |
||
|
19
|
19
24722-59J10-000 PLATE,OIL RESERVOIR,RJ20A; 2008-07-01~ |
24722-59J10-000 |
US $18.58 |
||
|
20
|
20
24723-59J30-000
BOLT,OIL RESERVOIR PLATE,R
J20A; 2008-07-01~ |
24723-59J30-000 |
— | ||
|
21
|
21
24724-59J10-000 PIPE,DIFF RH BRG LUBRICATIONJ20A; 2008-07-01~ |
24724-59J10-000 |
US $10.12 |
||
|
22
|
22
24725-59J10-000 CLAMP,DIFF BRG LUB PIPEJ20A; 2008-07-01~ |
24725-59J10-000 |
US $2.43 |
||
|
23
|
23
24725-60G10-000 BOLT,HOUSING NO.1J20A; 2008-07-01~ |
24725-60G10-000 |
US $4.27 |
||
|
24
|
24
24725-60G30-000 BOLT,T/C HOUSING NO.6J20A; 2008-07-01~ |
24725-60G30-000 |
US $9.38 |
||
|
25
|
25
24726-59J10-000
PLUG,DIFF RH BRG LUBRICATION
J20A; 2008-07-01~ |
24726-59J10-000 |
— | ||
|
26
|
26
24727-59J10-000 BOLT,T/C HOUSING NO.2J20A; 2008-07-01~ |
24727-59J10-000 |
US $5.12 |
||
|
27
|
27
24727-60G10-000 BOLT,HOUSING NO.3J20A; 2008-07-01~ |
24727-60G10-000 |
US $4.75 |
||
|
28
|
28
24728-59J10-000 BOLT,T/C HOUSING NO.3J20A; 2008-07-01~ |
24728-59J10-000 |
US $5.12 |
||
|
29
|
29
24729-59J10-000 BOLT,T/C HOUSING NO.4J20A; 2008-07-01~ |
24729-59J10-000 |
US $5.41 |
||
|
30
|
30
24729-59J30-000 BOLT,T/C HOUSING NO.5J20A; 2008-07-01~ |
24729-59J30-000 |
US $5.12 |
||
|
31
|
31
24731-59J10-000 COVER,T/M RRJ20A; 2008-07-01~ |
24731-59J10-000 |
US $542.08 |
||
|
32
|
32
24733-53J10-000 O-RING,OIL PIPE UNIONJ20A; 2008-07-01~ |
24733-53J10-000 |
US $1.60 |
||
|
33
|
33
24734-59J10-000 PLUG,T/M CASE NO.4J20A; 2008-07-01~ |
24734-59J10-000 |
US $6.62 |
||
|
34
|
34
24735-59J10-000 BOLT,T/M RR COVER NO.2J20A; 2008-07-01~ |
24735-59J10-000 |
US $5.12 |
||
|
35
|
35
24736-59J10-000 BOLT,T/M RR COVER NO.3J20A; 2008-07-01~ |
24736-59J10-000 |
US $5.41 |
||
|
36
|
36
24737-59J10-000 BOLT,T/M RR COVER NO.4J20A; 2008-07-01~ |
24737-59J10-000 |
US $6.15 |
||
|
37
|
37
24741-59J10-000 PLUG,T/M CASE NO.2J20A; 2008-07-01~ |
24741-59J10-000 |
US $8.98 |
||
|
38
|
38
24742-59J10-000 BOLT,SPEED SENSORJ20A; 2008-07-01~ |
24742-59J10-000 |
US $2.13 |
||
|
39
|
39
24745-59J00-000 MAGNET,OIL CLEANERJ20A; 2008-07-01~ |
24745-59J00-000 |
US $2.13 |
||
|
40
|
40
24746-53J10-000 BOLT,INPUT SPEED SENSORJ20A; 2008-07-01~ |
24746-53J10-000 |
US $2.74 |
||
|
41
|
41
24751-59J10-000 COVER,T/M SIDEJ20A; 2008-07-01~ |
24751-59J10-000 |
from US $121.44 |
||
|
42
|
42
24752-59J10-000 BOLT,SIDE COVERJ20A; 2008-07-01~ |
24752-59J10-000 |
US $4.20 |
||
|
43
|
43
24811-57B00-000 CLAMP,SOLENOID WIRE HARNJ20A; 2008-07-01~ |
24811-57B00-000 |
US $3.13 |
||
|
44
|
44
24818-68J10-000 GASKET,GOVERNOR APPLY NO.1J20A; 2008-07-01~ |
24818-68J10-000 |
from US $5.18 |
||
|
45
|
45
24823-60G11-000 PLUG,DRAINJ20A; 2008-07-01~ |
24823-60G11-000 |
from US $9.54 |
||
|
46
|
46
24824-60G10-000 GASKET,DRAIN PLUGJ20A; 2008-07-01~ |
24824-60G10-000 |
from US $2.56 |
||
|
47
|
47
24830-59J10-000 GAUGE ASSY,T/M OIL LEVELJ20A; 2008-07-01~ |
24830-59J10-000 |
US $30.73 |
||
|
48
|
48
24839-61A31-000 EMBLEM,ATFJ20A; 2008-07-01~ |
24839-61A31-000 |
US $2.47 |
||
|
49
|
49
24841-59J10-000
TUBE,T/M OIL FILLER
J20A; 2008-07-01~ |
24841-59J10-000 |
— | ||
|
50
|
50
24842-60G10-000 O-RINGJ20A; 2008-07-01~ |
24842-60G10-000 |
US $2.69 |
||
|
51
|
51
24851-59J10-000 PIPE,BREATHERJ20A; 2008-07-01~ |
24851-59J10-000 |
US $5.41 |
||
|
52
|
52
24856-59J10-000 HOSE,BREATHERJ20A; 2008-07-01~ |
24856-59J10-000 |
US $7.62 |
||
|
53
|
53
24892-59J10-000 HARNESS,TRANSMISSIONJ20A; 2008-07-01~ |
24892-59J10-000 |
US $242.88 |
||
|
54
|
54
24893-59J10-000 BOLT,SHIFT SWITCH NO.1J20A; 2008-07-01~ |
24893-59J10-000 |
US $3.90 |
||
|
55
|
55
24895-59J10-000 PLATE,SHIFT SWITCHJ20A; 2008-07-01~ |
24895-59J10-000 |
US $12.14 |
||
|
56
|
56
24896-59J10-000 BOLT,SHIFT SWITCH NO.2J20A; 2008-07-01~ |
24896-59J10-000 |
US $6.62 |
||
|
57
|
57
25981-60G10-000 SEAL,OILJ20A; 2008-07-01~ |
25981-60G10-000 |
from US $5.83 |
||
|
58
|
58
25997-60G10-000 WASHER,MANUAL SELECT LEVERJ20A; 2008-07-01~ |
25997-60G10-000 |
US $3.20 |
||
|
59
|
59
26143-60G10-000 SENSOR,SPEED INPUTJ20A; 2008-07-01~ |
26143-60G10-000 |
from US $127.58 |
||
|
60
|
60
26145-59J10-000 SENSOR,TEMPJ20A; 2008-07-01~ |
26145-59J10-000 |
US $137.60 |
||
|
61
|
61
26561-59J10-000 PISTON,U/D BRAKE ACCUMULATORJ20A; 2008-07-01~ |
26561-59J10-000 |
US $12.14 |
||
|
62
|
62
26562-59J10-000 COVER,U/D BRAKE ACCUMULATORJ20A; 2008-07-01~ |
26562-59J10-000 |
US $9.90 |
||
|
63
|
63
26563-59J10-000 SPRING,U/D BRAKE ACCUMULATORJ20A; 2008-07-01~ |
26563-59J10-000 |
US $6.96 |
||
|
64
|
64
26564-59J10-000 PISTON,FWD CL ACCUMULATORJ20A; 2008-07-01~ |
26564-59J10-000 |
US $30.91 |
||
|
65
|
65
26565-59J10-000 COVER,FWD CLUTCH ACCUMULATORJ20A; 2008-07-01~ |
26565-59J10-000 |
US $15.93 |
||
|
66
|
66
26566-59J10-000 SPRING,FWD CLUTCH ACCUMULATORJ20A; 2008-07-01~ |
26566-59J10-000 |
US $6.96 |
||
|
67
|
67
26598-59J11-000 BRACKET,COUPLERJ20A; 2008-07-01~ |
26598-59J11-000 |
US $4.16 |
||
|
68
|
68
27991-65D01-000 PLUG,BREATHERJ20A; 2008-07-01~ |
27991-65D01-000 |
from US $1.92 |
||
|
69
|
69
29726-57B00-000 O-RING,SOL WIRE HARNJ20A; 2008-07-01~ |
29726-57B00-000 |
US $7.68 |
||
|
70
|
70
29731-57B01-000 O-RING,FORWARD CL ACC PSTNJ20A; 2008-07-01~ |
29731-57B01-000 |
US $3.09 |
||
|
71
|
71
29732-57B00-000 O-RING,FORWARD CL ACCJ20A; 2008-07-01~ |
29732-57B00-000 |
US $6.48 |
||
|
72
|
72
29738-57B00-000 O-RINGJ20A; 2008-07-01~ |
29738-57B00-000 |
US $2.40 |
||
|
73
|
73
29849-57B00-000 PLUG,T/M CASEJ20A; 2008-07-01~ |
29849-57B00-000 |
US $5.89 |
||
|
74
|
74
29970-57B00-000 BoltJ20A; 2008-07-01~ |
29970-57B00-000 |
US $5.89 |
||
|
75
|
75
29999-57B00-000 BoltJ20A; 2008-07-01~ |
29999-57B00-000 |
US $5.89 |
||
|
76
|
76
09206-15001-000 PIN(12.4X15X17)J20A; 2008-07-01~ |
09206-15001-000 |
US $1.92 |
||
|
77
|
77
09250-26005-000 CAP(OD:36)J20A; 2008-07-01~ |
09250-26005-000 |
from US $2.48 |
||
|
78
|
78
01550-0612A-000 BOLTJ20A; 2008-07-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
79
|
79
01550-1035A-000 BOLTBolt, fr fork upper J20A; 2008-07-01~ |
01550-1035A-000 |
from US $5.68 |
||
|
80
|
80
01550-1245A-000 BOLTJ20A; 2008-07-01~ |
01550-1245A-000 |
US $1.44 |
||
|
81
|
81
01550-1255A-000 BoltJ20A; 2008-07-01~ |
01550-1255A-000 |
US $21.70 |
||
|
82
|
82
01550-1275A-000 BOLTJ20A; 2008-07-01~ |
01550-1275A-000 |
US $1.92 |
||
|
83
|
83
08310-0008A-000 NUTNut, bead stopper J20A; 2008-07-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
84
|
84
08316-1012A-000 NUTJ20A; 2008-07-01~ |
08316-1012A-000 |
from US $0.96 |
