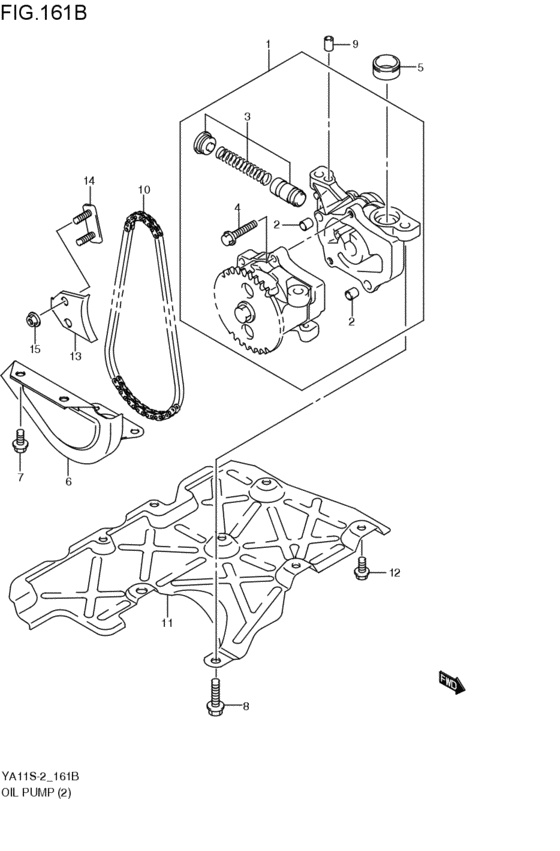

Oil pump (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-65D00-000 PUMP ASSY,OILJ20A; 2008-07-01~ |
16100-65D00-000 |
from US $244.98 |
||
|
2
|
2
04211-09109-000 PINKnock pin J20A; 2008-07-01~ |
04211-09109-000 |
from US $0.96 |
||
|
3
|
3
16150-85FA0-000 VALVE SET,OIL PUMP RELIEFJ20A; 2008-07-01~ |
16150-85FA0-000 |
US $16.52 |
||
|
4
|
4
07120-0625A-000 BOLTBolt, cylinder head (l25) J20A; 2008-07-01~ |
07120-0625A-000 |
from US $0.91 |
||
|
5
|
5
16114-85FA2-000 PIN,OIL PUMP CASEJ20A; 2008-07-01~ |
16114-85FA2-000 |
US $4.56 |
||
|
6
|
6
16160-77E00-000
Cover comp,oil pump sprocket
J20A; 2008-07-01~ |
16160-77E00-000 |
— | ||
| replacement | |||||
|
6
|
6
16160-77E01-000 COVER,OIL PUMP SPROCKETJ20A; 2008-07-01~ |
16160-77E01-000 |
US $19.87 |
||
|
7
|
7
01550-0612A-000 BOLTJ20A; 2008-07-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
01550-0830A-000 BOLTBolt, mount oil seal cover J20A; 2008-07-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
9
|
9
09206-08001-000 PIN(8X11)J20A; 2008-07-01~ |
09206-08001-000 |
from US $1.26 |
||
|
10
|
10
16760-77E01-000 CHAIN,OIL PUMP DRIVEJ20A; 2008-07-01~ |
16760-77E01-000 |
from US $49.31 |
||
|
11
|
11
16171-59J01-000 PLATE,OIL PUMP BAFFLEJ20A; 2008-07-01~ |
16171-59J01-000 |
US $9.90 |
||
|
12
|
12
01550-0612A-000 BOLTJ20A; 2008-07-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
13
|
13
16781-77E01-000 GUIDE,OIL PUMP CHAINJ20A; 2008-07-01~ |
16781-77E01-000 |
from US $17.59 |
||
|
14
|
14
16790-77E00-000 PLATE,OIL PUMP CHAIN GUIDEJ20A; 2008-07-01~ |
16790-77E00-000 |
US $4.05 |
||
|
15
|
15
08316-1006A-000 NUTJ20A; 2008-07-01~ |
08316-1006A-000 |
from US $0.80 |
||
