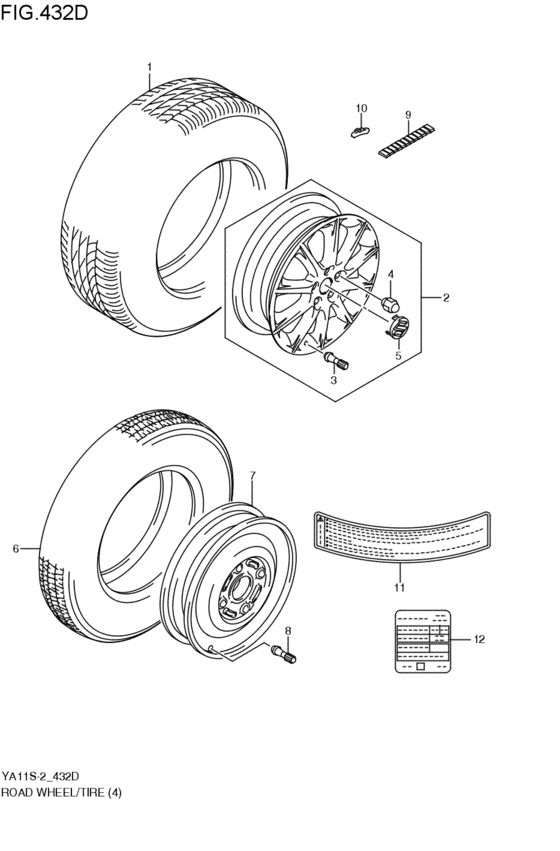

road wheel / tire (FS; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43110-80J31-000
TIRE(205/50R17 89V)
FS; 2008-07-01~ |
43110-80J31-000 |
— | ||
|
2
|
2
43200-85890-27N
Wheel set,al(17x6 1/2j)(silver
FS; 2008-07-01~ |
43200-85890-27N |
— | ||
| replacement | |||||
|
2
|
2
43200-85891-27N
WHEEL SET,AL(17X6 1/2J)
FS; 2008-07-01~ |
43200-85891-27N |
— | ||
|
3
|
3
43130-60E10-000
VALVE,TIRE TR414(BS)
FS; 2008-07-01~ |
43130-60E10-000 |
— | ||
|
4
|
4
09159-12051-000 NUTFS; 2008-07-01~ |
09159-12051-000 |
from US $3.98 |
||
|
5
|
5
43252-63J10-CZ2
CAP,WHEEL CTR
FS; 2008-07-01~ |
43252-63J10-CZ2 |
— | ||
| replacement | |||||
|
5
|
5
43252-63J11-CZ2 Cap,Wheel Ctr(Silver/Chrome)FS; 2008-07-01~ |
43252-63J11-CZ2 |
US $19.20 |
||
|
6
|
6
43180-79J00-000
Tire,spare(t135/90d16)
FS:4WD; 2008-07-01~ |
43180-79J00-000 |
— | ||
| replacement | |||||
|
6
|
6
43180-79J01-000
TIRE,SPARE(T135/90D16)
FS:4WD; 2008-07-01~ |
43180-79J01-000 |
— | ||
|
7
|
7
43290-80J00-000 ホイール,スペア(16X4T)FS; 2008-07-01~ |
43290-80J00-000 |
US $90.90 |
||
|
8
|
8
43130-60E10-000
VALVE,TIRE TR414(BS)
FS; 2008-07-01~ |
43130-60E10-000 |
— | ||
|
9
|
9
43221-59J00-000 WEIGHT,WHEEL BALANCE 5GFS; 2008-07-01~ |
43221-59J00-000 |
US $2.28 |
||
|
9
|
9
43221-59J10-000 WEIGHT,WHEEL BALANCE 10GFS; 2008-07-01~ |
43221-59J10-000 |
from US $2.83 |
||
|
9
|
9
43221-59J20-000 WEIGHT,WHEEL BALANCE 15GFS; 2008-07-01~ |
43221-59J20-000 |
US $3.09 |
||
|
9
|
9
43221-59J30-000 WEIGHT,WHEEL BALANCE 20GFS; 2008-07-01~ |
43221-59J30-000 |
US $3.35 |
||
|
9
|
9
43221-59J40-000 WEIGHT,WHEEL BALANCE 25GFS; 2008-07-01~ |
43221-59J40-000 |
US $3.57 |
||
|
9
|
9
43221-59J50-000 WEIGHT,WHEEL BALANCE 30GFS; 2008-07-01~ |
43221-59J50-000 |
US $3.79 |
||
|
9
|
9
43221-59J60-000 WEIGHT,WHEEL BALANCE 35GFS; 2008-07-01~ |
43221-59J60-000 |
US $4.01 |
||
|
9
|
9
43221-59J70-000 WEIGHT,WHEEL BALANCE 40GFS; 2008-07-01~ |
43221-59J70-000 |
US $4.23 |
||
|
9
|
9
43221-59J80-000 WEIGHT,WHEEL BALANCE 45GFS; 2008-07-01~ |
43221-59J80-000 |
US $4.45 |
||
|
9
|
9
43221-59J90-000 WEIGHT,WHEEL BALANCE 50GFS; 2008-07-01~ |
43221-59J90-000 |
US $4.75 |
||
|
10
|
10
43221-73H10-000 WEIGHT,WHEEL BALANCE 5GFS; 2008-07-01~ |
43221-73H10-000 |
US $2.13 |
||
|
10
|
10
43222-73H10-000 WEIGHT,WHEEL BALANCE 10GBalancer, wheel (10g) FS; 2008-07-01~ |
43222-73H10-000 |
from US $2.72 |
||
|
10
|
10
43223-73H10-000 WEIGHT,WHEEL BALANCE 15GFS; 2008-07-01~ |
43223-73H10-000 |
US $3.02 |
||
|
10
|
10
43224-73H10-000 WEIGHT,WHEEL BALANCE 20GBalancer, wheel (20g) FS; 2008-07-01~ |
43224-73H10-000 |
from US $3.02 |
||
|
10
|
10
43225-73H10-000 WEIGHT,WHEEL BALANCE 25GFS; 2008-07-01~ |
43225-73H10-000 |
US $3.31 |
||
|
10
|
10
43226-73H10-000 WEIGHT,WHEEL BALANCE 30GBalancer, wheel (30g) FS; 2008-07-01~ |
43226-73H10-000 |
from US $3.53 |
||
|
10
|
10
43227-73H10-000 WEIGHT,WHEEL BALANCE 35GFS; 2008-07-01~ |
43227-73H10-000 |
US $3.75 |
||
|
10
|
10
43228-73H10-000 WEIGHT,WHEEL BALANCE 40GFS; 2008-07-01~ |
43228-73H10-000 |
US $3.97 |
||
|
10
|
10
43231-54G10-000 WEIGHT,WHEEL BALANCE 45GFS; 2008-07-01~ |
43231-54G10-000 |
US $4.64 |
||
|
11
|
11
79167-70G03-000
PLACARD,SPARE TIRE
FS; 2008-07-01~ |
79167-70G03-000 |
— | ||
|
12
|
12
79161-80J50-000
プラカード,タイヤインフォメーション
FS:4WD; 2008-07-01~ |
79161-80J50-000 |
— | ||
