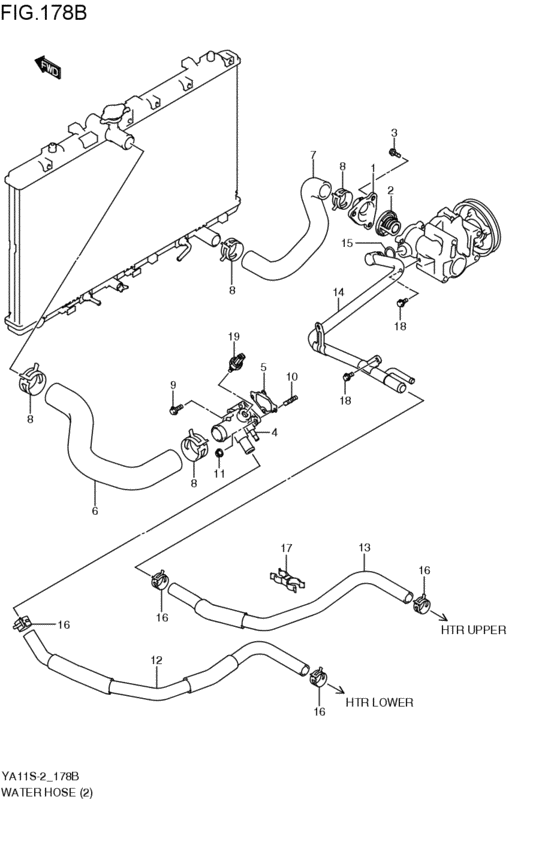

water hose (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17560-77EA0-000
Cap,wtr thermostat
J20A; 2008-07-01~ |
17560-77EA0-000 |
— | ||
| replacement | |||||
|
1
|
1
17560-57L00-000 CAP,WTR THERMOSTATJ20A; 2008-07-01~ |
17560-57L00-000 |
from US $16.34 |
||
|
2
|
2
17670-65D00-000 THERMOSTAT,WATER 82 DEGJ20A; 2008-07-01~ |
17670-65D00-000 |
from US $21.12 |
||
|
3
|
3
01550-0620A-000 BOLTJ20A; 2008-07-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
4
|
4
17570-80J00-000 CAP,WTR OUTLETJ20A; 2008-07-01~ |
17570-80J00-000 |
from US $49.37 |
||
|
5
|
5
17579-77EA0-000 GASKET,WTR OUTLET CAPJ20A; 2008-07-01~ |
17579-77EA0-000 |
from US $4.59 |
||
|
6
|
6
17852-80J00-000 HOSE,RADIATOR INLETJ20A; 2008-07-01~ |
17852-80J00-000 |
from US $21.38 |
||
|
7
|
7
17854-80J00-000 HOSE,RADIATOR OUTLETJ20A; 2008-07-01~ |
17854-80J00-000 |
from US $21.58 |
||
|
8
|
8
09401-35403-000 CLIPJ20A; 2008-07-01~ |
09401-35403-000 |
from US $2.56 |
||
|
9
|
9
01550-0620A-000 BOLTJ20A; 2008-07-01~ |
01550-0620A-000 |
from US $0.76 |
||
|
10
|
10
01421-0620A-000 BOLT,STUDJ20A; 2008-07-01~ |
01421-0620A-000 |
from US $1.12 |
||
|
11
|
11
08316-1006A-000 NUTJ20A; 2008-07-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
12
|
12
17871-80J01-000 HOSE,HEATER INLETJ20A; 2008-07-01~ |
17871-80J01-000 |
from US $27.86 |
||
|
13
|
13
17872-80J01-000 HOSE,HEATER OUTLETJ20A; 2008-07-01~ |
17872-80J01-000 |
from US $19.06 |
||
|
14
|
14
17880-65J00-000 PIPE,HEATER OUTLETJ20A; 2008-07-01~ |
17880-65J00-000 |
from US $97.20 |
||
|
15
|
15
17889-77EA1-000 O-RING,HTR PIPEJ20A; 2008-07-01~ |
17889-77EA1-000 |
from US $2.14 |
||
|
16
|
16
09401-21405-000 CLIPJ20A; 2008-07-01~ |
09401-21405-000 |
US $1.60 |
||
|
17
|
17
09408-00166-000 CLAMPJ20A; 2008-07-01~ |
09408-00166-000 |
US $33.50 |
||
|
18
|
18
01550-0612A-000 BOLTJ20A; 2008-07-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
13650-73H00-000 Sensor,water TempJ20A; 2008-07-01~ |
13650-73H00-000 |
from US $28.19 |
||
