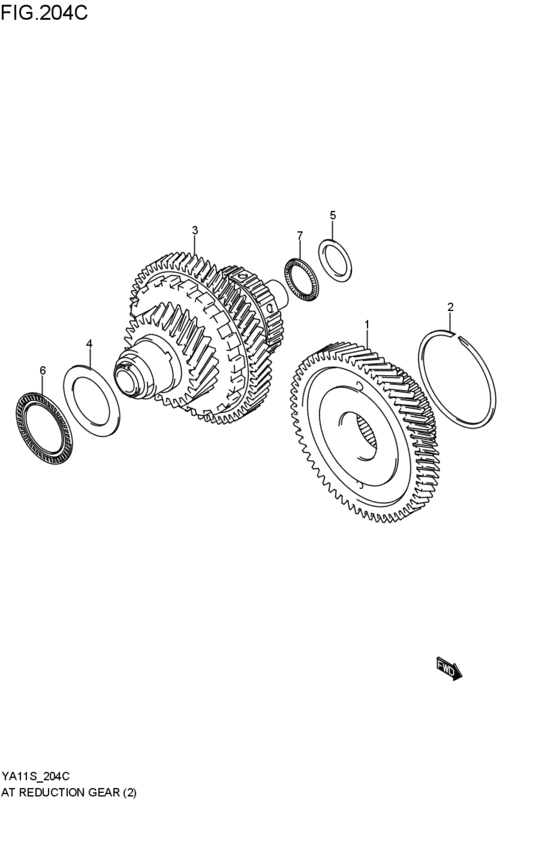

at - reduction gear (J20A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24510-59J10-000 GEAR ASSY,REDUCTION DRIVEJ20A; 2006-05-01~ |
24510-59J10-000 |
US $672.32 |
||
|
2
|
2
24593-59J10-000 RING,RDCN DR GR BRG OTR RACEJ20A; 2006-05-01~ |
24593-59J10-000 |
US $9.46 |
||
|
3
|
3
24600-80J10-000 GEAR ASSY,UNDER DRIVEJ20A; 2006-05-01~ |
24600-80J10-000 |
US $869.44 |
||
|
4
|
4
24671-59J10-000 RACE,CTSHFT FR THR BRG RRJ20A; 2006-05-01~ |
24671-59J10-000 |
US $12.14 |
||
|
5
|
5
24671-59J30-000 RACE,CTSHFT RR THR BRG RRJ20A; 2006-05-01~ |
24671-59J30-000 |
US $12.14 |
||
|
6
|
6
24672-59J10-000 BEARING,CTSHFT FR THRUSTJ20A; 2006-05-01~ |
24672-59J10-000 |
from US $10.42 |
||
|
7
|
7
24672-59J30-000 BEARING,CTSHFT RR THRUSTJ20A; 2006-05-01~ |
24672-59J30-000 |
from US $10.60 |
