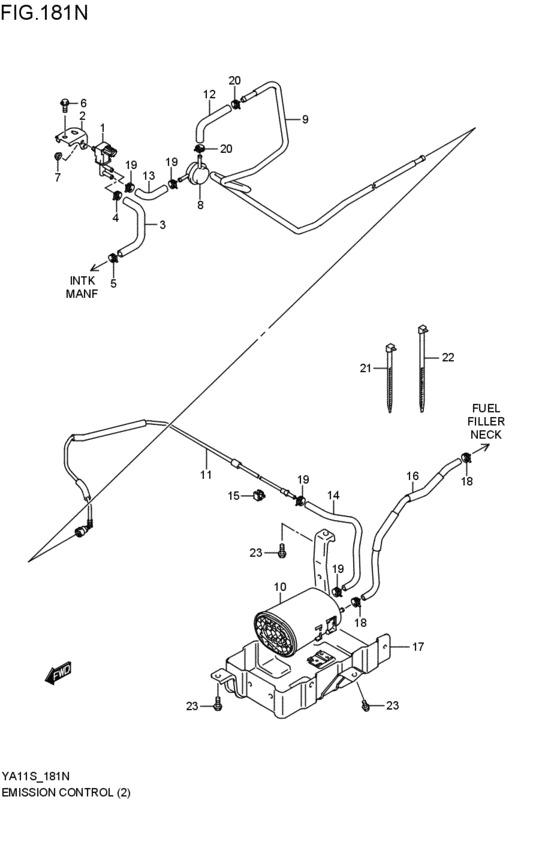

emission control (J20A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-65J00-000 VALVE,EVAP CSTR PURGEJ20A; 2006-05-01~ |
18117-65J00-000 |
from US $116.82 |
||
|
2
|
2
18417-80J00-000 BRACKET,VSVJ20A; 2006-05-01~ |
18417-80J00-000 |
US $3.64 |
||
|
3
|
3
18564-80J00-000
ホース,パージ(VSVツーマニホールド)
VSV ツー マニホールド; J20A; 2006-05-01~2007-02-01 |
18564-80J00-000 |
— | ||
| replacements | |||||
|
3
|
3
09401-11419-000 CLIPVSV ツー マニホールド; J20A; 2006-05-01~2007-02-01 |
09401-11419-000 |
from US $1.42 |
||
|
3
|
3
18564-80J01-000
Hose,purge(vsv to inmf)
VSV ツー マニホールド; J20A; 2006-05-01~2007-02-01 |
18564-80J01-000 |
— | ||
|
3
|
3
18564-80J01-000
Hose,purge(vsv to inmf)
VSV ツー マニホールド; J20A; 2007-03-01~ |
18564-80J01-000 |
— | ||
|
4
|
4
09401-11419-000 CLIPJ20A; 2006-05-01~ |
09401-11419-000 |
from US $1.42 |
||
|
5
|
5
09401-12404-000 CLIPClip J20A; 2006-05-01~ |
09401-12404-000 |
from US $1.52 |
||
|
6
|
6
01550-0612A-000 BOLTJ20A; 2006-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
08316-1006A-000 NUTJ20A; 2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
8
|
8
18145-80J00-000 CHAMBER,PURGE VALVEJ20A; 2006-05-01~ |
18145-80J00-000 |
US $9.57 |
||
|
9
|
9
18351-79J00-000 PIPE,PURGEJ20A; 2006-05-01~ |
18351-79J00-000 |
US $46.37 |
||
|
10
|
10
18560-76A31-000 CANISTERJ20A; 2006-05-01~ |
18560-76A31-000 |
from US $84.02 |
||
|
11
|
11
18561-80J10-000 PIPE,CANISTER PURGEJ20A; 2006-05-01~ |
18561-80J10-000 |
US $53.73 |
||
|
12
|
12
18565-80J00-000 HOSE,PURGE PIPE TO CHAMBERパイプ ツー チャンバ; J20A; 2006-05-01~ |
18565-80J00-000 |
from US $9.90 |
||
|
13
|
13
18565-80J20-000 HOSE,PURGE CHAMBER TO VSVチャンバ ツー VSV; J20A; 2006-05-01~ |
18565-80J20-000 |
US $9.38 |
||
|
14
|
14
18562-80J00-000 HOSE,CSTR PURGE CSTR TO PIPEキャニスタ ツー バルブ; J20A; 2006-05-01~ |
18562-80J00-000 |
from US $11.20 |
||
|
15
|
15
18568-80J10-000 CLAMP,NYLON PIPEJ20A; 2006-05-01~ |
18568-80J10-000 |
US $1.91 |
||
|
16
|
16
18569-80J10-000 PIPE,CSTR AIR SUCTIONJ20A; 2006-05-01~ |
18569-80J10-000 |
US $21.90 |
||
|
17
|
17
18570-80J10-000
Bracket comp,canister
J20A; 2006-05-01~ |
18570-80J10-000 |
— | ||
| replacement | |||||
|
17
|
17
18570-80J20-000 BRACKET,CANISTERJ20A; 2006-05-01~ |
18570-80J20-000 |
US $139.20 |
||
|
18
|
18
09401-12410-000 CLIPClip, filter outlet J20A; 2006-05-01~ |
09401-12410-000 |
from US $1.19 |
||
|
19
|
19
09401-11419-000 CLIPJ20A; 2006-05-01~ |
09401-11419-000 |
from US $1.42 |
||
|
20
|
20
09401-12404-000 CLIPClip J20A; 2006-05-01~ |
09401-12404-000 |
from US $1.52 |
||
|
21
|
21
09407-13402-000 CLAMP(L:130)J20A; 2006-05-01~ |
09407-13402-000 |
US $15.80 |
||
|
22
|
22
09407-29402-000 CLAMP,L:300J20A; 2006-05-01~ |
09407-29402-000 |
US $21.30 |
||
|
23
|
23
01551-0816C-000 BoltJ20A; 2006-05-01~ |
01551-0816C-000 |
from US $0.96 |
||
