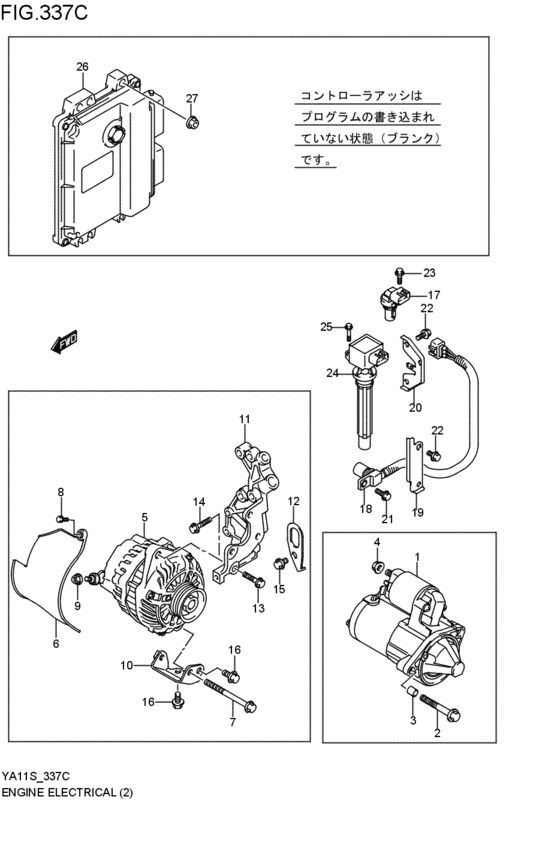

engine electrical (J20A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-80J00-000 MOTOR ASSY,STARTINGJ20A; 2006-05-01~ |
31100-80J00-000 |
US $675.84 |
||
|
2
|
2
01550-0840A-000 BOLTJ20A; 2006-05-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
3
|
3
04211-11129-000 PINJ20A; 2006-05-01~ |
04211-11129-000 |
from US $0.95 |
||
|
4
|
4
08316-1008A-000 NUTNut, idle gear shaft J20A; 2006-05-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
5
|
5
31400-80J10-000
Generator assy
J20A; 2006-05-01~ |
31400-80J10-000 |
— | ||
| replacement | |||||
|
5
|
5
31400-80JV2-000 GENERATOR ASSYJ20A; 2006-05-01~ |
31400-80JV2-000 |
US $834.24 |
||
|
6
|
6
31614-80J00-000 COVER,GENERATORJ20A; 2006-05-01~ |
31614-80J00-000 |
US $35.20 |
||
|
7
|
7
09103-10402-000 BOLT(10X95)J20A; 2006-05-01~ |
09103-10402-000 |
US $27.20 |
||
|
8
|
8
09117-06061-000 BOLT(6X16)J20A; 2006-05-01~ |
09117-06061-000 |
from US $1.13 |
||
|
9
|
9
08316-1006A-000 NUTJ20A; 2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
10
|
10
11551-77EA0-000 BRACKET,GENERATORJ20A; 2006-05-01~ |
11551-77EA0-000 |
US $13.43 |
||
|
11
|
11
11560-80J00-000
BRACKET,GEN&PS
J20A; 2006-05-01~ |
11560-80J00-000 |
— | ||
|
12
|
12
11851-54G10-000 HOOK,ENGINEJ20A; 2006-05-01~ |
11851-54G10-000 |
US $3.35 |
||
|
13
|
13
01550-0835A-000 BOLTJ20A; 2006-05-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
14
|
14
01550-0840A-000 BOLTJ20A; 2006-05-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
15
|
15
01550-1016A-000 BoltPlug, oil gallery J20A; 2006-05-01~ |
01550-1016A-000 |
from US $4.96 |
||
|
16
|
16
01550-1020A-000 BOLTBolt, bal sprocket J20A; 2006-05-01~ |
01550-1020A-000 |
from US $0.96 |
||
|
17
|
17
33220-63J00-000
SENSOR ASSY,POSITION
J20A; 2006-05-01~ |
33220-63J00-000 |
— | ||
| replacement | |||||
|
17
|
17
33220-64L20-000 SENSOR ASSY, CRANK POSITIONJ20A; 2006-05-01~ |
33220-64L20-000 |
from US $73.62 |
||
|
18
|
18
33220-77E00-000 SENSOR ASSY,POSITIONJ20A; 2006-05-01~ |
33220-77E00-000 |
from US $109.76 |
||
|
19
|
19
33221-77E00-000 BRACKET,CKP SENSORJ20A; 2006-05-01~ |
33221-77E00-000 |
US $4.05 |
||
|
20
|
20
33221-77E11-000 BRACKET,CKP SENSORJ20A; 2006-05-01~ |
33221-77E11-000 |
US $3.53 |
||
|
21
|
21
09103-06283-000 BOLT(6X16)J20A; 2006-05-01~ |
09103-06283-000 |
from US $4.37 |
||
|
22
|
22
01550-0612A-000 BOLTJ20A; 2006-05-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
01550-0616A-000 BOLTJ20A; 2006-05-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
24
|
24
33400-65J00-000 COIL ASSY,IGNITIONJ20A; 2006-05-01~ |
33400-65J00-000 |
from US $158.20 |
||
|
25
|
25
09135-05002-000 BOLT(5X23)J20A; 2006-05-01~ |
09135-05002-000 |
US $14.70 |
||
|
26
|
26
33910-75KE1-000
CONTROLLER ASSY,EPI BLANK
J20A; 2006-05-01~ |
33910-75KE1-000 |
— | ||
|
27
|
27
08316-1006A-000 NUTJ20A; 2006-05-01~ |
08316-1006A-000 |
from US $0.80 |
||
