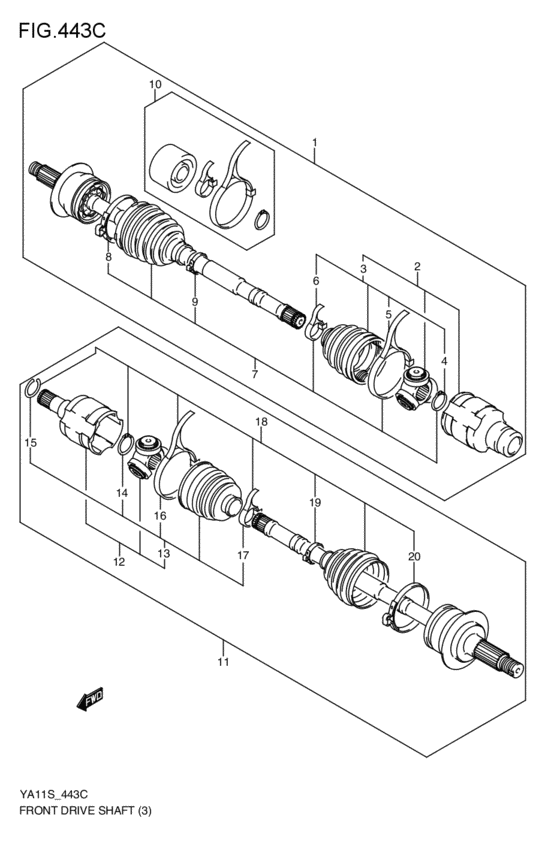

front-drive shaft (J20A:4WD; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-80JE1-000
Shaft assy,front drive,r
J20A:4WD; 2006-05-01~ |
44101-80JE1-000 |
— | ||
| replacement | |||||
|
1
|
1
44101-80JE2-000 SHAFT ASSY,FRONT DRIVE,RJ20A:4WD; 2006-05-01~ |
44101-80JE2-000 |
US $1,440 |
||
|
2
|
2
44117-80J40-000
Joint assy,diff side
J20A:4WD; 2006-05-01~ |
44117-80J40-000 |
— | ||
| replacement | |||||
|
2
|
2
44117-80J42-000 JOINT ASSY,DIFF SIDEJ20A:4WD; 2006-05-01~ |
44117-80J42-000 |
US $482.24 |
||
|
3
|
3
44119-80J40-000
Boot set,diff side
J20A:4WD; 2006-05-01~ |
44119-80J40-000 |
— | ||
| replacement | |||||
|
3
|
3
44119-80J42-000 BOOT SET,DIFF SIDEJ20A:4WD; 2006-05-01~ |
44119-80J42-000 |
US $101.20 |
||
|
4
|
4
44111-78010-000 RING,SNAPJ20A:4WD; 2006-05-01~ |
44111-78010-000 |
US $2.80 |
||
|
5
|
5
44121-64B20-000 BAND,BOOTJ20A:4WD; 2006-05-01~ |
44121-64B20-000 |
US $13.21 |
||
|
6
|
6
44124-78E00-000 CLAMP,BOOTJ20A:4WD; 2006-05-01~ |
44124-78E00-000 |
US $10.52 |
||
|
7
|
7
44118-80J40-000
Boot set,wheel side
J20A:4WD; 2006-05-01~ |
44118-80J40-000 |
— | ||
| replacements | |||||
|
7
|
7
44118-80J41-000
BOOT SET,WHEEL SIDE
J20A:4WD; 2006-05-01~ |
44118-80J41-000 |
— | ||
|
7
|
7
44118-80J42-000 BOOT SET,WHEEL SIDEJ20A:4WD; 2006-05-01~ |
44118-80J42-000 |
US $101.20 |
||
|
8
|
8
44121-55GF0-000 BAND,BOOTJ20A:4WD; 2006-05-01~ |
44121-55GF0-000 |
US $8.80 |
||
|
9
|
9
44122-54G90-000 BAND,BOOTJ20A:4WD; 2006-05-01~ |
44122-54G90-000 |
US $8.80 |
||
|
10
|
10
44125-80J81-000
Damper set
J20A:4WD; 2006-05-01~ |
44125-80J81-000 |
— | ||
| replacement | |||||
|
10
|
10
44125-80J82-000 DAMPER SETJ20A:4WD; 2006-05-01~ |
44125-80J82-000 |
US $84.64 |
||
|
11
|
11
44102-80J50-000
Shaft assy,front drive,l
J20A:4WD; 2006-05-01~ |
44102-80J50-000 |
— | ||
| replacement | |||||
|
11
|
11
44102-80J51-000 SHAFT ASSY,FRONT DRIVE,LJ20A:4WD; 2006-05-01~ |
44102-80J51-000 |
US $619.52 |
||
|
12
|
12
44117-80J50-000
JOINT ASSY,DIFF SIDE
J20A:4WD; 2006-05-01~ |
44117-80J50-000 |
— | ||
| replacement | |||||
|
12
|
12
44117-80J52-000 JOINT ASSY,DIFF SIDEJ20A:4WD; 2006-05-01~ |
44117-80J52-000 |
US $401.28 |
||
|
13
|
13
44119-80J60-000
Boot set,diff side
J20A:4WD; 2006-05-01~ |
44119-80J60-000 |
— | ||
| replacement | |||||
|
13
|
13
44119-80J62-000 BOOT SET,DIFF SIDEJ20A:4WD; 2006-05-01~ |
44119-80J62-000 |
US $94.40 |
||
|
14
|
14
44111-78010-000 RING,SNAPJ20A:4WD; 2006-05-01~ |
44111-78010-000 |
US $2.80 |
||
|
15
|
15
44111-79J00-000 CIRCLIPJ20A:4WD; 2006-05-01~ |
44111-79J00-000 |
US $3.24 |
||
|
16
|
16
44121-64B20-000 BAND,BOOTJ20A:4WD; 2006-05-01~ |
44121-64B20-000 |
US $13.21 |
||
|
17
|
17
44124-78E00-000 CLAMP,BOOTJ20A:4WD; 2006-05-01~ |
44124-78E00-000 |
US $10.52 |
||
|
18
|
18
44118-80J60-000
Boot set,wheel side
J20A:4WD; 2006-05-01~ |
44118-80J60-000 |
— | ||
| replacement | |||||
|
18
|
18
44118-80J62-000 BOOT SET,WHEEL SIDEJ20A:4WD; 2006-05-01~ |
44118-80J62-000 |
US $101.20 |
||
|
19
|
19
44121-55GF0-000 BAND,BOOTJ20A:4WD; 2006-05-01~ |
44121-55GF0-000 |
US $8.80 |
||
|
20
|
20
44122-54G90-000 BAND,BOOTJ20A:4WD; 2006-05-01~ |
44122-54G90-000 |
US $8.80 |
||
