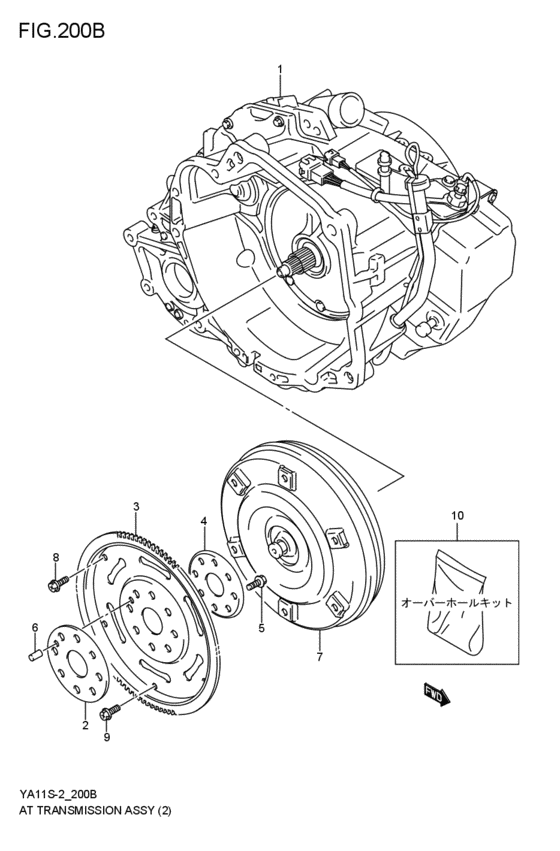

at - transmission assy (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
20002-80JH2-000 T/M ASSY,AUTOMATICJ20A:4WD; 2008-07-01~ |
20002-80JH2-000 |
US $8,228.48 |
||
|
1
|
1
20002-80JH2-111
トランスミッションアッシ,オートマチック
リビルト; J20A:4WD; 2008-07-01~ |
20002-80JH2-111 |
— | ||
|
2
|
2
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FRJ20A; 2008-07-01~ |
22611-85FA0-000 |
US $31.20 |
||
|
3
|
3
22620-60G51-000
PLATE,DRIVE
J20A; 2008-07-01~ |
22620-60G51-000 |
— | ||
|
4
|
4
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RRJ20A; 2008-07-01~ |
22631-85FA0-000 |
US $25.60 |
||
|
5
|
5
09103-10282-000 BOLT(10X18.5)J20A; 2008-07-01~ |
09103-10282-000 |
US $2.08 |
||
|
6
|
6
04221-08129-000 PINPin, knock J20A; 2008-07-01~ |
04221-08129-000 |
from US $0.91 |
||
|
7
|
7
22710-80J10-000 CONVERTER,TORQUEJ20A; 2008-07-01~ |
22710-80J10-000 |
US $1,162.72 |
||
|
8
|
8
09103-08516-000 BOLT(8X9.5)J20A; 2008-07-01~ |
09103-08516-000 |
from US $1.12 |
||
|
9
|
9
09103-08517-000 BOLT(8X9.5)J20A; 2008-07-01~ |
09103-08517-000 |
from US $3.65 |
||
|
10
|
10
24700-59JT0-000 OVERHAUL KIT,ATJ20A; 2008-07-01~ |
24700-59JT0-000 |
US $281.52 |
