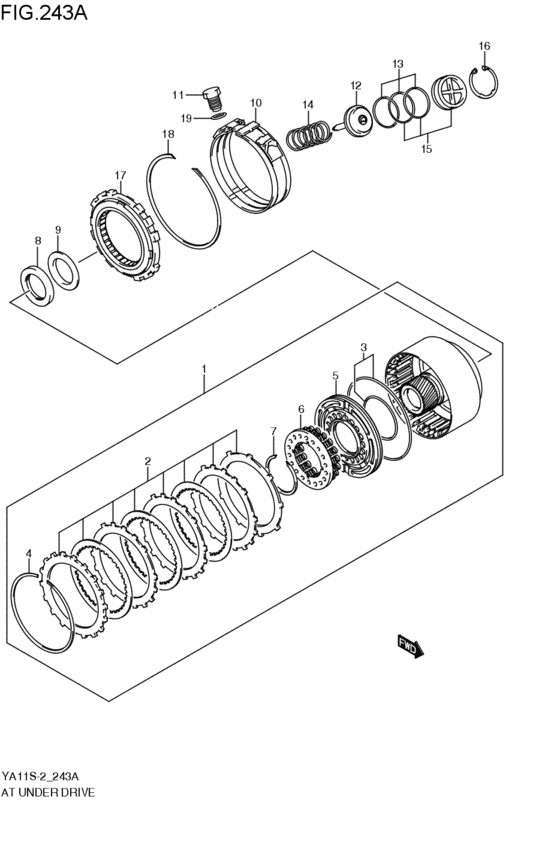

at - under drive (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26910-59J12-000 CLUTCH ASSY,UNDER DRIVEJ20A; 2008-07-01~ |
26910-59J12-000 |
US $718.08 |
||
|
2
|
2
26912-59JT0-000
PLATE SET,U/D CLUTCH
J20A; 2008-07-01~ |
26912-59JT0-000 |
— | ||
|
3
|
3
26922-59JT0-000 O-RING SET,U/D CLUTCHJ20A; 2008-07-01~ |
26922-59JT0-000 |
US $9.90 |
||
|
4
|
4
26915-59J10-000 RING,U/D CLUTCH SNAPJ20A; 2008-07-01~ |
26915-59J10-000 |
US $9.16 |
||
|
5
|
5
26921-59J10-000 PISTON,U/D CLUTCHJ20A; 2008-07-01~ |
26921-59J10-000 |
US $31.83 |
||
|
6
|
6
26923-59J10-000 SPRING,U/D CLUTCH PSTN RETURNJ20A; 2008-07-01~ |
26923-59J10-000 |
US $19.50 |
||
|
7
|
7
26924-59J10-000 RING,U/D CL RTN SPRING SNAPJ20A; 2008-07-01~ |
26924-59J10-000 |
US $4.56 |
||
|
8
|
8
26925-59J11-000 BEARING,U/D CLUTCH THRUSTJ20A; 2008-07-01~ |
26925-59J11-000 |
US $19.32 |
||
|
9
|
9
26926-59J10-000 RACE,U/D CLUTCH THRUST BEARINGJ20A; 2008-07-01~ |
26926-59J10-000 |
US $7.40 |
||
|
10
|
10
26931-59J10-000 BAND ASSY,U/D BRAKEJ20A; 2008-07-01~ |
26931-59J10-000 |
US $191.36 |
||
|
11
|
11
26932-59J10-000 BOLT,U/D BRAKE BAND ANCHORJ20A; 2008-07-01~ |
26932-59J10-000 |
US $12.92 |
||
|
12
|
12
26940-59J10-001 PISTON,U/D BRAKE L:70.5J20A; 2008-07-01~ |
26940-59J10-001 |
US $22.26 |
||
|
12
|
12
26940-59J10-002 PISTON,U/D BRAKE L:72.0J20A; 2008-07-01~ |
26940-59J10-002 |
US $22.26 |
||
|
13
|
13
26944-59JT0-000 O-RING SET,U/D BRAKEJ20A; 2008-07-01~ |
26944-59JT0-000 |
US $6.62 |
||
|
14
|
14
26945-59J10-000 SPRING,BRAKE PSTN RTNJ20A; 2008-07-01~ |
26945-59J10-000 |
US $6.62 |
||
|
15
|
15
26946-59JT0-000 COVER SET,U/D BRAKEJ20A; 2008-07-01~ |
26946-59JT0-000 |
US $15.16 |
||
|
16
|
16
26947-59J10-000 RING,U/D BRAKE COVER SNAPJ20A; 2008-07-01~ |
26947-59J10-000 |
US $4.38 |
||
|
17
|
17
26950-59J10-000 CLUTCH ASSY,1 WAY NO.3J20A; 2008-07-01~ |
26950-59J10-000 |
US $116.29 |
||
|
18
|
18
26954-59J10-000 RING,ONE WAY CLUTCH NO.3 SNAPJ20A; 2008-07-01~ |
26954-59J10-000 |
US $8.98 |
||
|
19
|
19
29726-57B00-000 O-RING,SOL WIRE HARNJ20A; 2008-07-01~ |
29726-57B00-000 |
US $7.68 |
