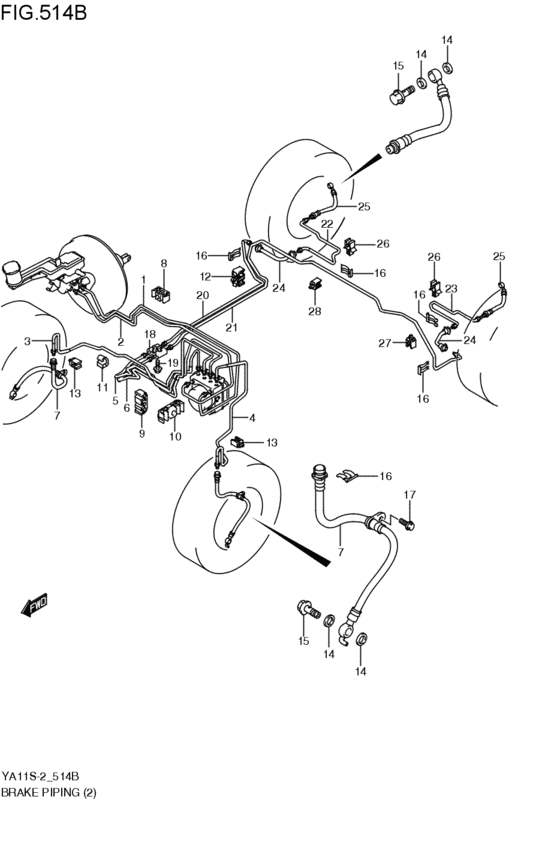

brakes piping (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-80J30-000
PIPE,MA PRI TO UNIT
J20A; 2008-07-01~ |
51410-80J30-000 |
— | ||
|
2
|
2
51420-80J30-000
PIPE,MA SEC TO UNIT
J20A; 2008-07-01~ |
51420-80J30-000 |
— | ||
|
3
|
3
51430-80J11-000 PIPE,UNIT TO FR BK HOSE RJ20A; 2008-07-01~ |
51430-80J11-000 |
US $27.97 |
||
|
4
|
4
51440-80J10-000 PIPE,UNIT TO FR BK HOSE LJ20A; 2008-07-01~ |
51440-80J10-000 |
US $19.50 |
||
|
5
|
5
51450-80J10-000 PIPE,UNIT TO JOINT RJ20A; 2008-07-01~ |
51450-80J10-000 |
US $16.52 |
||
|
6
|
6
51460-80J10-000 PIPE,UNIT TO JOINT LJ20A; 2008-07-01~ |
51460-80J10-000 |
US $16.52 |
||
|
7
|
7
51550-80J00-000 HOSE,FR BRAKE FLEXIBLEJ20A; 2008-07-01~ |
51550-80J00-000 |
from US $24 |
||
|
8
|
8
51751-65J30-000 CLAMP,BK PIPE FR SIDEJ20A; 2008-07-01~ |
51751-65J30-000 |
US $2.94 |
||
|
9
|
9
51751-77E00-000 CLAMP,BRAKE PIPEJ20A; 2008-07-01~ |
51751-77E00-000 |
US $2.24 |
||
|
10
|
10
51751-82CB0-000 CLAMP,BRAKE PIPEJ20A; 2008-07-01~ |
51751-82CB0-000 |
US $2.80 |
||
|
11
|
11
51752-70B00-000 CLAMP,BK PIPEJ20A; 2008-07-01~ |
51752-70B00-000 |
US $1.60 |
||
|
12
|
12
51761-76G00-000 CLAMP,BK PIPE DASH LWRJ20A; 2008-07-01~ |
51761-76G00-000 |
US $1.60 |
||
|
13
|
13
51761-79J00-000 CLAMPJ20A; 2008-07-01~ |
51761-79J00-000 |
US $1.60 |
||
|
14
|
14
09161-10009-000 WASHER(10X15X1.5)Lock washer J20A; 2008-07-01~ |
09161-10009-000 |
from US $1.06 |
||
|
15
|
15
09360-10046-000 Union boltJ20A; 2008-07-01~ |
09360-10046-000 |
US $15.50 |
||
|
16
|
16
09383-13003-000 E-RINGJ20A; 2008-07-01~ |
09383-13003-000 |
from US $1.60 |
||
|
17
|
17
01551-0816C-000 BoltJ20A; 2008-07-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
18
|
18
51630-82040-000 JOINT,4WAY BRAKEJ20A; 2008-07-01~ |
51630-82040-000 |
US $24 |
||
|
19
|
19
02162-0625A-000 SCREWJ20A; 2008-07-01~ |
02162-0625A-000 |
from US $0.76 |
||
|
20
|
20
51470-80J00-000 PIPE,JOINT TO RR BK HOSE RJ20A; 2008-07-01~ |
51470-80J00-000 |
US $64 |
||
|
21
|
21
51480-80J00-000 PIPE,JOINT TO RR BK HOSE LJ20A; 2008-07-01~ |
51480-80J00-000 |
US $64 |
||
|
22
|
22
51510-80J10-000 PIPE,RR BK HOSE TO CLPR RJ20A; 2008-07-01~ |
51510-80J10-000 |
from US $28.96 |
||
|
23
|
23
51520-80J10-000 PIPE,RR BK HOSE TO CLPR LJ20A; 2008-07-01~ |
51520-80J10-000 |
from US $18.41 |
||
|
24
|
24
51570-80J00-000 HOSE,RR BRAKE FLEXIBLEJ20A; 2008-07-01~ |
51570-80J00-000 |
US $13.76 |
||
|
25
|
25
51570-80J10-000 HOSE,RR DISC FLEXIBLEJ20A; 2008-07-01~ |
51570-80J10-000 |
US $19.32 |
||
|
26
|
26
51761-79J10-000 CLAMP,BK PIPE AXLE NO.1J20A; 2008-07-01~ |
51761-79J10-000 |
US $1.60 |
||
|
27
|
27
51761-79J00-000 CLAMPJ20A; 2008-07-01~ |
51761-79J00-000 |
US $1.60 |
||
|
28
|
28
51761-79J00-000 CLAMPJ20A; 2008-07-01~ |
51761-79J00-000 |
US $1.60 |
