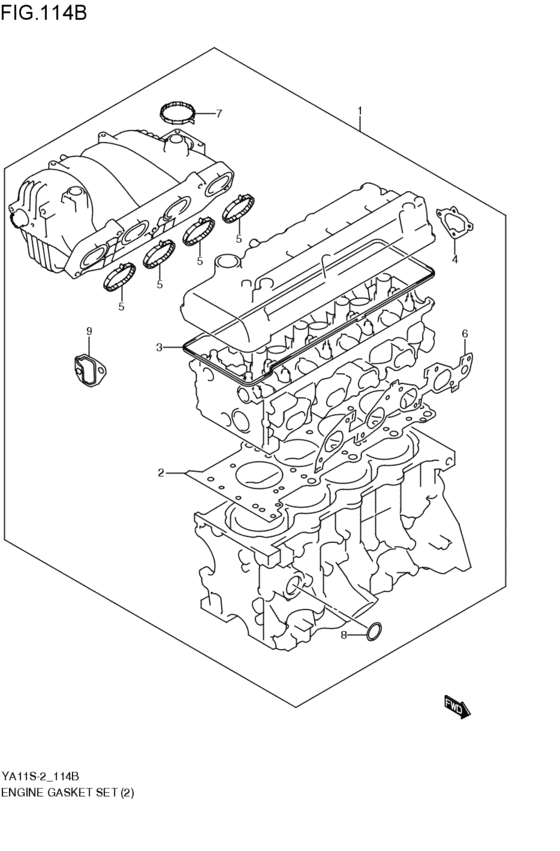

engine gasket set (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11401-80870-000 GASKET SET,ENGINEJ20A; 2008-07-01~ |
11401-80870-000 |
US $172.96 |
||
|
2
|
2
11141-77E02-000 GASKET, CYLINDER HEADJ20A; 2008-07-01~ |
11141-77E02-000 |
from US $69.57 |
||
|
3
|
3
11189-65J00-000 GASKET,CYL HEAD COVERJ20A; 2008-07-01~ |
11189-65J00-000 |
from US $22.21 |
||
|
4
|
4
17579-77EA0-000 GASKET,WTR OUTLET CAPJ20A; 2008-07-01~ |
17579-77EA0-000 |
from US $4.59 |
||
|
5
|
5
13119-80J00-000 GASKET,INTK MANFJ20A; 2008-07-01~ |
13119-80J00-000 |
from US $6.55 |
||
|
6
|
6
14140-65D02-000 GASKET,EXH MANFJ20A; 2008-07-01~ |
14140-65D02-000 |
from US $38.48 |
||
|
7
|
7
13421-80J00-000 GASKET,THROTTLE BODYJ20A; 2008-07-01~ |
13421-80J00-000 |
US $8.91 |
||
|
8
|
8
17611-65J00-000 O-RING,WATER PUMPJ20A; 2008-07-01~ |
17611-65J00-000 |
from US $3.47 |
||
|
9
|
9
12835-77E00-000 GASKET,TENSIONER ADJ,NO.2J20A; 2008-07-01~ |
12835-77E00-000 |
from US $2.56 |
