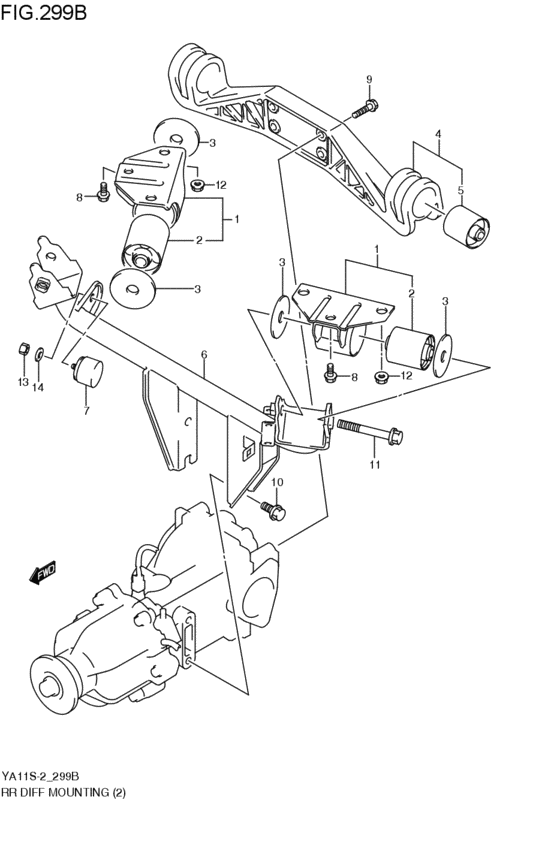

リヤデファレンシャルマウンチング (4WD:J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29610-63J00-000 MOUNT,DIFF FR4WD:J20A; 2008-07-01~ |
29610-63J00-000 |
US $222.40 |
||
|
2
|
2
27550-63J00-000 MOUNT,DIFF FR4WD:J20A; 2008-07-01~ |
27550-63J00-000 |
US $72.96 |
||
|
3
|
3
27550-80J00-000 STOPPER,DIFF SIDE MOUNT FR4WD:J20A; 2008-07-01~ |
27550-80J00-000 |
US $7.40 |
||
|
4
|
4
29620-80J10-000
BRACKET,DIFF MOUNT RR
4WD:J20A; 2008-07-01~ |
29620-80J10-000 |
— | ||
|
5
|
5
27550-63J00-000 MOUNT,DIFF FR4WD:J20A; 2008-07-01~ |
27550-63J00-000 |
US $72.96 |
||
|
6
|
6
29651-80J10-000 ARM,DIFF MOUNT FR4WD:J20A; 2008-07-01~ |
29651-80J10-000 |
US $215.84 |
||
|
7
|
7
46315-77A51-000 DAMPER,ENGINE MEMBER4WD:J20A; 2008-07-01~ |
46315-77A51-000 |
US $100.80 |
||
|
8
|
8
01551-1025A-000 Bolt4WD:J20A; 2008-07-01~ |
01551-1025A-000 |
US $1.12 |
||
|
9
|
9
01550-1040A-000 BOLT4WD:J20A; 2008-07-01~ |
01550-1040A-000 |
from US $1.12 |
||
|
10
|
10
01550-1225A-000 BOLT4WD:J20A; 2008-07-01~ |
01550-1225A-000 |
from US $1.28 |
||
|
11
|
11
01550-1275A-000 BOLT4WD:J20A; 2008-07-01~ |
01550-1275A-000 |
US $1.92 |
||
|
12
|
12
08316-1010A-000 NUTNut, kick starter 4WD:J20A; 2008-07-01~ |
08316-1010A-000 |
from US $0.76 |
||
|
13
|
13
08310-0008A-000 NUTNut, bead stopper 4WD:J20A; 2008-07-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCK4WD:J20A; 2008-07-01~ |
08321-0108A-000 |
from US $0.80 |
