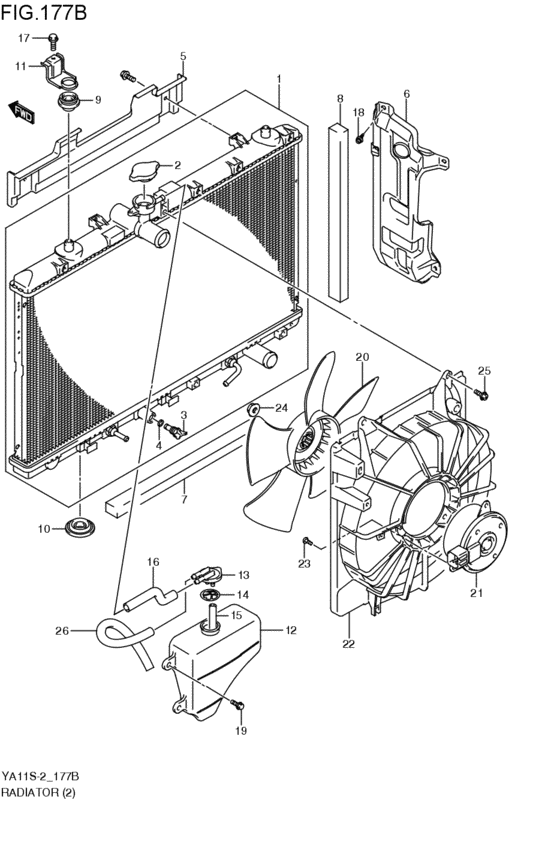

radiator (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-80J10-000 RADIATOR ASSYJ20A; 2008-07-01~ |
17700-80J10-000 |
US $770.88 |
||
|
2
|
2
17920-75F00-000 CAP,RADIATORJ20A; 2008-07-01~ |
17920-75F00-000 |
from US $13.83 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAINJ20A; 2008-07-01~ |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RINGJ20A; 2008-07-01~ |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
17790-80J00-000 SHROUD,RADIATOR UPPERJ20A; 2008-07-01~ |
17790-80J00-000 |
US $20.98 |
||
|
6
|
6
17793-80J00-000 SHROUD,RADIATOR,RJ20A; 2008-07-01~ |
17793-80J00-000 |
US $20.06 |
||
|
7
|
7
17791-80J00-000 SEAL,RADIATOR NO.1J20A; 2008-07-01~ |
17791-80J00-000 |
US $10.56 |
||
|
8
|
8
17792-80J00-000 SEAL,RADIATOR NO.2J20A; 2008-07-01~ |
17792-80J00-000 |
US $6.88 |
||
|
9
|
9
17812-54G00-000 MOUNT,RDTR SUPPORT UPRJ20A; 2008-07-01~ |
17812-54G00-000 |
from US $2.88 |
||
|
10
|
10
17878-75F00-000 MOUNT,RDTR SUPPORT LWRJ20A; 2008-07-01~ |
17878-75F00-000 |
from US $2.88 |
||
|
11
|
11
17861-79J00-000 BRACKET,RDTR SUPPORT UPPERJ20A; 2008-07-01~ |
17861-79J00-000 |
from US $5 |
||
|
12
|
12
17931-79J00-000 TANK,WATER RESERVEJ20A; 2008-07-01~ |
17931-79J00-000 |
from US $24.12 |
||
|
13
|
13
17932-60B10-000 CAP,WATER RESERVE TANKJ20A; 2008-07-01~ |
17932-60B10-000 |
from US $9.34 |
||
|
14
|
14
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap J20A; 2008-07-01~ |
17933-60B00-000 |
from US $1.85 |
||
|
15
|
15
09352-70111-600 HOSE(7X11X600)L:600>170; J20A; 2008-07-01~ |
09352-70111-600 |
from US $6.84 |
||
|
16
|
16
17939-80JA0-000 HOSE,RDTR TO RSV TANKJ20A; 2008-07-01~ |
17939-80JA0-000 |
US $14.08 |
||
|
17
|
17
09103-08382-000 BOLT(8X12)J20A; 2008-07-01~ |
09103-08382-000 |
from US $2.08 |
||
|
18
|
18
09409-08327-000 CLIPJ20A; 2008-07-01~ |
09409-08327-000 |
from US $1.13 |
||
|
19
|
19
02162-0616B-000 SCREWBolt, adjust J20A; 2008-07-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
20
|
20
17111-63J00-000 FAN,COOLINGJ20A; 2008-07-01~ |
17111-63J00-000 |
US $56.80 |
||
|
21
|
21
17120-80J00-000 MOTOR ASSY,COOLING FANJ20A; 2008-07-01~ |
17120-80J00-000 |
from US $294.40 |
||
|
22
|
22
17760-80J00-000 SHROUDJ20A; 2008-07-01~ |
17760-80J00-000 |
US $94.58 |
||
|
23
|
23
02142-0510A-000 SCREWBolt, oil pump rotor plate J20A; 2008-07-01~ |
02142-0510A-000 |
from US $0.77 |
||
| replacement | |||||
|
23
|
23
02142-0510B-000 SCREWBolt J20A; 2008-07-01~ |
02142-0510B-000 |
from US $0.76 |
||
|
24
|
24
08316-2005A-000 NUTJ20A; 2008-07-01~ |
08316-2005A-000 |
from US $0.80 |
||
|
25
|
25
02162-0616B-000 SCREWBolt, adjust J20A; 2008-07-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
26
|
26
17936-80JA0-000 HOSE,RSVR TANK VENTJ20A; 2008-07-01~ |
17936-80JA0-000 |
from US $6.89 |
||
