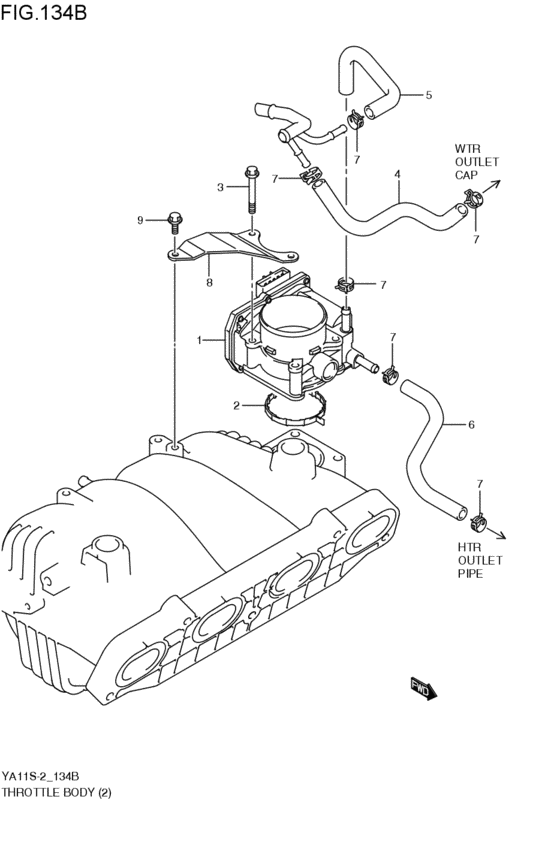

throttle body (J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-80J00-000 BODY ASSY,THROTTLEJ20A; 2008-07-01~ |
13400-80J00-000 |
US $651.20 |
||
|
2
|
2
13421-80J00-000 GASKET,THROTTLE BODYJ20A; 2008-07-01~ |
13421-80J00-000 |
US $8.91 |
||
|
3
|
3
01550-0650A-000 BOLTBolt (6x50) J20A; 2008-07-01~ |
01550-0650A-000 |
from US $0.96 |
||
|
4
|
4
13491-80J00-000 HOSE,WTR THROT BODY INLETJ20A; 2008-07-01~ |
13491-80J00-000 |
from US $9.92 |
||
|
5
|
5
13492-80J00-000 HOSE,WTR THROT BODY OUTLETJ20A; 2008-07-01~ |
13492-80J00-000 |
from US $6.26 |
||
|
6
|
6
13493-80J01-000 HOSE,WTR THROT BODY OUTLETJ20A; 2008-07-01~ |
13493-80J01-000 |
US $12.32 |
||
|
7
|
7
09401-12410-000 CLIPClip, filter outlet J20A; 2008-07-01~ |
09401-12410-000 |
from US $1.19 |
||
|
8
|
8
13666-80J00-000
STIFFENER,THROTTLE BODY
J20A; 2008-07-01~ |
13666-80J00-000 |
— | ||
|
9
|
9
01550-0612A-000 BOLTJ20A; 2008-07-01~ |
01550-0612A-000 |
from US $0.76 |
