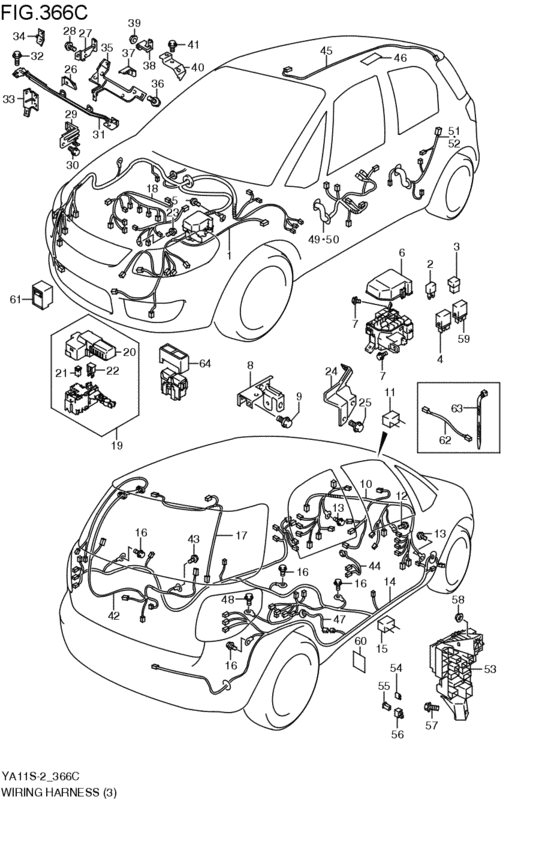

wire ring harness (5DR:J20A; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- Number of doors
- 5DR
- grade
- FT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-80JB1-000
HARNESS ASSY,MAIN
5DR:J20A:4WD; 2008-07-01~ |
36610-80JB1-000 |
— | ||
|
2
|
2
09481-20501-000 FUSE(20A)5DR:J20A; 2008-07-01~ |
09481-20501-000 |
from US $2.28 |
||
|
2
|
2
09481-30501-000 FUSE(30A)5DR:J20A; 2008-07-01~ |
09481-30501-000 |
from US $1.08 |
||
|
2
|
2
09481-15501-000 FUSE(15A)5DR:J20A; 2008-07-01~ |
09481-15501-000 |
from US $3.25 |
||
|
3
|
3
09481-30401-000 FUSE(30A)5DR:J20A; 2008-07-01~ |
09481-30401-000 |
from US $5.96 |
||
|
3
|
3
09481-40401-000 FUSE(40A)5DR:J20A; 2008-07-01~ |
09481-40401-000 |
from US $3.83 |
||
|
3
|
3
09481-50401-000 FUSE(50A)5DR:J20A; 2008-07-01~ |
09481-50401-000 |
US $46 |
||
|
3
|
3
09481-60401-000 FUSE(60A)5DR:J20A; 2008-07-01~ |
09481-60401-000 |
from US $3.92 |
||
|
4
|
4
38860-76F01-000 RELAY ASSYRelay, starting motor スタータ リレ-; 5DR:J20A; 2008-07-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
5
|
5
09115-06005-000 BOLT(6X16)5DR:J20A; 2008-07-01~ |
09115-06005-000 |
US $1.28 |
||
|
6
|
6
36717-80J00-000 COVER,RELAY BOX5DR:J20A; 2008-07-01~ |
36717-80J00-000 |
US $23 |
||
|
7
|
7
02162-0616B-000 SCREWBolt, adjust 5DR:J20A; 2008-07-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
8
|
8
36614-79J10-000 BRACKET,ENG HARN5DR:J20A; 2008-07-01~ |
36614-79J10-000 |
US $8.17 |
||
|
9
|
9
01551-0812A-000 Bolt5DR:J20A; 2008-07-01~ |
01551-0812A-000 |
US $13.20 |
||
|
10
|
10
36620-80J71-000
Harness assy,i/p
5DR:J20A:4WD; 2008-07-01~ |
36620-80J71-000 |
— | ||
|
11
|
11
36639-74F00-000 DIODE5DR:J20A; 2008-07-01~ |
36639-74F00-000 |
US $20.98 |
||
|
12
|
12
09115-06005-000 BOLT(6X16)5DR:J20A; 2008-07-01~ |
09115-06005-000 |
US $1.28 |
||
|
13
|
13
02162-0612A-000 SCREWBolt, bracket 5DR:J20A; 2008-07-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
14
|
14
36630-80J90-000
ハーネスアッシ,フロア
5DR:J20A:4WD; 2008-07-01~ |
36630-80J90-000 |
— | ||
| replacement | |||||
|
14
|
14
36630-80J91-000
Harness assy,floor
5DR:J20A:4WD; 2008-07-01~ |
36630-80J91-000 |
— | ||
|
15
|
15
36639-74F00-000 DIODE5DR:J20A; 2008-07-01~ |
36639-74F00-000 |
US $20.98 |
||
|
16
|
16
09115-06005-000 BOLT(6X16)5DR:J20A; 2008-07-01~ |
09115-06005-000 |
US $1.28 |
||
|
17
|
17
36690-80J00-000 WIRE,A/B5DR:J20A; 2008-07-01~ |
36690-80J00-000 |
US $91.63 |
||
|
18
|
18
36650-80J30-000
Harness assy,eng
5DR:J20A; 2008-07-01~ |
36650-80J30-000 |
— | ||
| replacement | |||||
|
18
|
18
36650-80J31-000
HARNESS ASSY,ENGINE
5DR:J20A; 2008-07-01~ |
36650-80J31-000 |
— | ||
|
19
|
19
36740-80J00-000 BOX ASSY,MAIN FUSE5DR:J20A; 2008-07-01~ |
36740-80J00-000 |
US $116 |
||
|
20
|
20
36694-80J00-000 COVER,BATTERY TERMINAL5DR:J20A; 2008-07-01~ |
36694-80J00-000 |
US $11.63 |
||
|
21
|
21
09481-50401-000 FUSE(50A)5DR:J20A; 2008-07-01~ |
09481-50401-000 |
US $46 |
||
|
22
|
22
09481-80301-000 FUSE(80A)5DR:J20A; 2008-07-01~ |
09481-80301-000 |
from US $5.74 |
||
|
23
|
23
01550-0812A-000 BOLT5DR:J20A; 2008-07-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
24
|
24
36651-79J10-000 BRACKET,ENG HARN5DR:J20A; 2008-07-01~ |
36651-79J10-000 |
US $7.40 |
||
|
25
|
25
02162-0612A-000 SCREWBolt, bracket 5DR:J20A; 2008-07-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
26
|
26
36651-67J40-000 BRACKET,ENG HARN ALT5DR:J20A; 2008-07-01~ |
36651-67J40-000 |
US $2.91 |
||
|
27
|
27
36651-80J00-000 BRACKET,ENG HARN INTK5DR:J20A; 2008-07-01~ |
36651-80J00-000 |
US $4.16 |
||
|
28
|
28
01550-0812A-000 BOLT5DR:J20A; 2008-07-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
29
|
29
36651-80J10-000 BRACKET,ENG HARN ST5DR:J20A; 2008-07-01~ |
36651-80J10-000 |
US $6.40 |
||
|
30
|
30
01550-0612A-000 BOLT5DR:J20A; 2008-07-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
31
|
31
36651-80J20-000 BRACKET,ENG HEAD5DR:J20A; 2008-07-01~ |
36651-80J20-000 |
US $16.16 |
||
|
32
|
32
01550-0612A-000 BOLT5DR:J20A; 2008-07-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
33
|
33
36651-80J30-000 BRACKET,ENG HARN MOUNT5DR:J20A; 2008-07-01~ |
36651-80J30-000 |
US $5.41 |
||
|
34
|
34
36651-80J40-000 BRACKET,ENG HARN MOUNT5DR:J20A; 2008-07-01~ |
36651-80J40-000 |
US $3.35 |
||
|
35
|
35
36651-80J50-000 BRACKET,ENG HARN INTK5DR:J20A; 2008-07-01~ |
36651-80J50-000 |
US $8.17 |
||
|
36
|
36
01550-0812A-000 BOLT5DR:J20A; 2008-07-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
37
|
37
36655-54G60-000 BRACKET,ENG HARN AT5DR:J20A; 2008-07-01~ |
36655-54G60-000 |
US $2.13 |
||
|
38
|
38
36651-80J60-000 BRACKET,ENG HARN T/M AT5DR:J20A; 2008-07-01~ |
36651-80J60-000 |
US $3.35 |
||
|
39
|
39
08316-1008A-000 NUTNut, idle gear shaft 5DR:J20A; 2008-07-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
40
|
40
36651-80J70-000 BRACKET,ENG HARN T/M AT5DR:J20A; 2008-07-01~ |
36651-80J70-000 |
US $4.16 |
||
|
41
|
41
01550-0812A-000 BOLT5DR:J20A; 2008-07-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
42
|
42
36680-80J10-000 HARNESS ASSY,BACK DOOR5DR:J20A; 2008-07-01~ |
36680-80J10-000 |
US $134.69 |
||
|
43
|
43
09115-06005-000 BOLT(6X16)5DR:J20A; 2008-07-01~ |
09115-06005-000 |
US $1.28 |
||
|
44
|
44
36615-80J00-000 WIRE,EPS5DR:J20A; 2008-07-01~ |
36615-80J00-000 |
US $76.18 |
||
|
45
|
45
36820-80J00-000 WIRE,DOME LAMP5DR:J20A; 2008-07-01~ |
36820-80J00-000 |
US $21.71 |
||
|
46
|
46
36930-82010-000 COVER,HARNESSCover, roof wire 5DR:J20A; 2008-07-01~ |
36930-82010-000 |
from US $1.73 |
||
|
47
|
47
36840-80J00-000 WIRE,FUEL PUMP5DR:J20A; 2008-07-01~ |
36840-80J00-000 |
US $34.96 |
||
|
48
|
48
09103-06168-000 BOLT(6X10)5DR:J20A; 2008-07-01~ |
09103-06168-000 |
from US $1.01 |
||
|
49
|
49
36756-80J30-000
ワイヤ,パワーウィンドメイン
5DR:J20A; 2008-07-01~ |
36756-80J30-000 |
— | ||
|
50
|
50
36757-80J30-000
WIRE,P/W SUB
5DR:J20A; 2008-07-01~ |
36757-80J30-000 |
— | ||
|
51
|
51
36751-80J10-000
Wire comp,rr door r side
5DR:J20A; 2008-07-01~ |
36751-80J10-000 |
— | ||
| replacement | |||||
|
51
|
51
36751-75K30-000 WIRE,RR DR SIDE,R5DR:J20A; 2008-07-01~ |
36751-75K30-000 |
US $58.88 |
||
|
52
|
52
36751-80JB0-000
Wire comp,rr door l side
5DR:J20A; 2008-07-01~ |
36751-80JB0-000 |
— | ||
| replacement | |||||
|
52
|
52
36751-75KD0-000 WIRE,RR DR SIDE,L5DR:J20A; 2008-07-01~ |
36751-75KD0-000 |
US $70.66 |
||
|
53
|
53
36780-80J03-000
Box set,j/b & bcm
5DR:J20A; 2008-07-01~ |
36780-80J03-000 |
— | ||
| replacement | |||||
|
53
|
53
36780-80J04-000 BOX SET,J/B&BCM5DR:J20A; 2008-07-01~ |
36780-80J04-000 |
US $351.44 |
||
|
54
|
54
09481-20501-000 FUSE(20A)5DR:J20A; 2008-07-01~ |
09481-20501-000 |
from US $2.28 |
||
|
54
|
54
09481-30501-000 FUSE(30A)5DR:J20A; 2008-07-01~ |
09481-30501-000 |
from US $1.08 |
||
|
54
|
54
09481-10501-000 FUSE(10A)5DR:J20A; 2008-07-01~ |
09481-10501-000 |
from US $1.06 |
||
|
54
|
54
09481-15501-000 FUSE(15A)5DR:J20A; 2008-07-01~ |
09481-15501-000 |
from US $3.25 |
||
|
55
|
55
09481-30401-000 FUSE(30A)5DR:J20A; 2008-07-01~ |
09481-30401-000 |
from US $5.96 |
||
|
56
|
56
38860-76F01-000 RELAY ASSYRelay, starting motor ヒータ リレ-; 5DR:J20A; 2008-07-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
57
|
57
01551-0816C-000 Bolt5DR:J20A; 2008-07-01~ |
01551-0816C-000 |
from US $0.96 |
||
|
58
|
58
08316-1008A-000 NUTNut, idle gear shaft 5DR:J20A; 2008-07-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
59
|
59
38860-76F01-000 RELAY ASSYRelay, starting motor メインリレー; 5DR:J20A; 2008-07-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
60
|
60
77151-82000-000
FILM
5DR:J20A; 2008-07-01~ |
77151-82000-000 |
— | ||
| replacements | |||||
|
60
|
60
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 5DR:J20A; 2008-07-01~ |
84761-50X50-000 |
US $6.72 |
||
|
60
|
60
77151-82010-000 Seal5DR:J20A; 2008-07-01~ |
77151-82010-000 |
US $1.44 |
||
|
61
|
61
32810-58J00-000 SENSOR ASSY,CURRENT5DR:J20A; 2008-07-01~ |
32810-58J00-000 |
US $55.94 |
||
|
62
|
62
36691-79J00-000 WIRE,A/Bオプシヨン (リペア ヨウ); 5DR:J20A; 2008-07-01~ |
36691-79J00-000 |
from US $41.04 |
||
|
63
|
63
09407-18402-000 CLAMP(L:165)Clamp (l:165) オプシヨン (リペア ヨウ); 5DR:J20A; 2008-07-01~ |
09407-18402-000 |
from US $1.98 |
||
|
64
|
64
36717-80JS0-000 COVER,RELAY BOX5DR:J20A; 2008-07-01~ |
36717-80JS0-000 |
US $7.62 |
||
