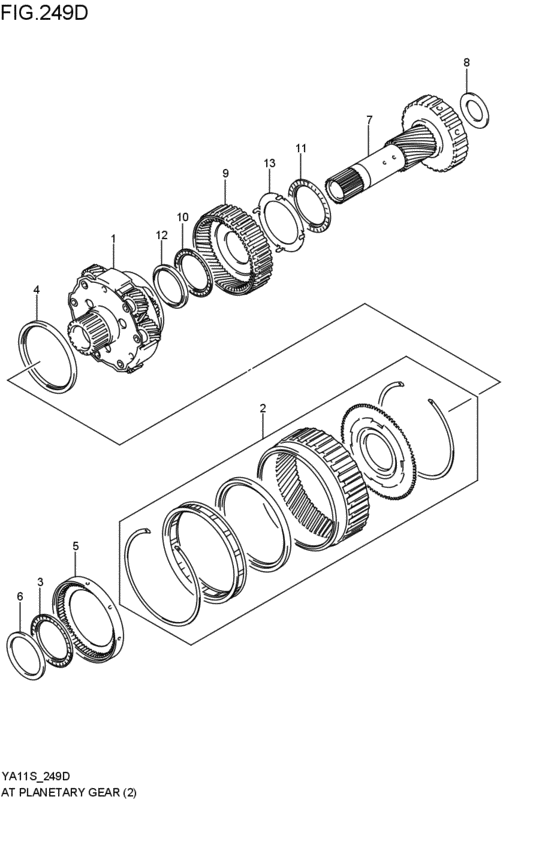

at - plastic material re-gear (J20A; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24910-59J10-000
Gear assy,planetary front
J20A; 2006-05-01~ |
24910-59J10-000 |
— | ||
| replacement | |||||
|
1
|
1
24910-59J11-000 GEAR ASSY,PLNTY FRJ20A; 2006-05-01~ |
24910-59J11-000 |
US $936.32 |
||
|
2
|
2
24920-59J10-000
Gear assy,front planetary ring
J20A; 2006-05-01~ |
24920-59J10-000 |
— | ||
| replacement | |||||
|
2
|
2
24920-59J11-000 GEAR ASSY,FR PLNTY RINGJ20A; 2006-05-01~ |
24920-59J11-000 |
US $869.44 |
||
|
3
|
3
24924-59J10-000 BEARING,FR PLNTY RG GR FR THRJ20A; 2006-05-01~ |
24924-59J10-000 |
from US $22.25 |
||
|
4
|
4
24924-59J30-002 BEARING,FR PLNTY RG GR RR THRJ20A; 2006-05-01~ |
24924-59J30-002 |
from US $29.32 |
||
|
5
|
5
24925-59J10-000 RACE,ONE WAY CL NO.2 INNERJ20A; 2006-05-01~ |
24925-59J10-000 |
US $70.66 |
||
|
6
|
6
24926-59J10-000 RACE,FR PLNTY GR FR THR BRGJ20A; 2006-05-01~ |
24926-59J10-000 |
US $8.17 |
||
|
7
|
7
24930-59J10-000 GEAR,PLNTY SUNJ20A; 2006-05-01~ |
24930-59J10-000 |
US $443.52 |
||
|
8
|
8
24934-59J30-000 BEARING,INPUT SHAFT FR THRUSTJ20A; 2006-05-01~ |
24934-59J30-000 |
from US $17.42 |
||
|
9
|
9
24950-59J10-000 GEAR ASSY,RR PLNTY RINGJ20A; 2006-05-01~ |
24950-59J10-000 |
US $185.84 |
||
|
10
|
10
24954-59J10-000 BEARING,FR PLNTY CARR RR THRJ20A; 2006-05-01~ |
24954-59J10-000 |
from US $21.04 |
||
|
11
|
11
24954-59J30-000 BEARING,RR PLNTY RG GR RR THRJ20A; 2006-05-01~ |
24954-59J30-000 |
US $23.18 |
||
|
12
|
12
24955-59J10-000 RACE,FR PLNTY CARR RR THR BRGJ20A; 2006-05-01~ |
24955-59J10-000 |
US $5.67 |
||
|
13
|
13
24955-59J30-000 RACE,RR PLNTY GR RR THR BRGJ20A; 2006-05-01~ |
24955-59J30-000 |
US $8.98 |
||
