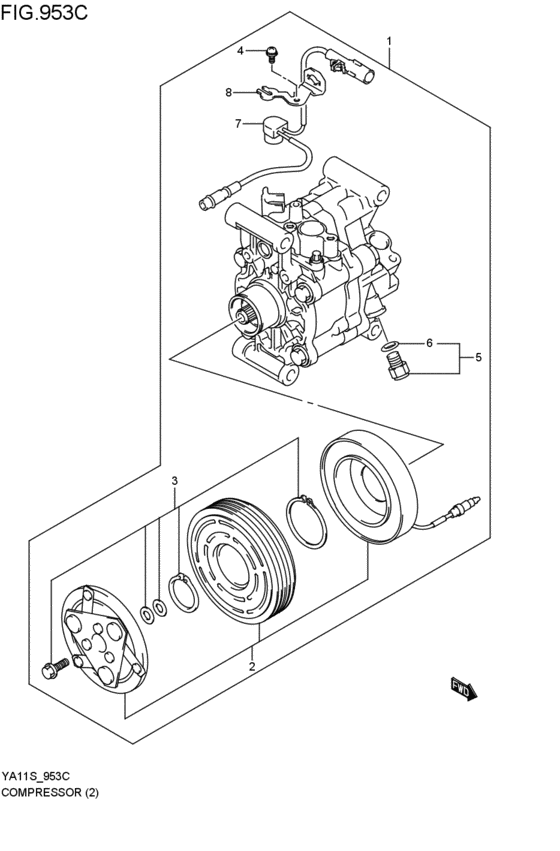

compressor (S,T; 2006-05-01~) Diagram Suzuki SX4
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-80JA1-000
コンプレッサアッシ
S,T; 2006-05-01~ |
95200-80JA1-000 |
— | ||
| replacement | |||||
|
1
|
1
95200-80JA2-000 COMPRESSOR ASSYS,T; 2006-05-01~ |
95200-80JA2-000 |
from US $1,084.16 |
||
|
2
|
2
95211-80JA0-000
クラッチセット
S,T; 2006-05-01~ |
95211-80JA0-000 |
— | ||
| replacement | |||||
|
2
|
2
95211-80JA1-000 CLUTCH SETS,T; 2006-05-01~ |
95211-80JA1-000 |
from US $360.64 |
||
|
3
|
3
95212-58JA0-000 CLIP KITS,T; 2006-05-01~ |
95212-58JA0-000 |
US $8 |
||
|
4
|
4
95254-58JA0-000 SCREW,CLAMPS,T; 2006-05-01~ |
95254-58JA0-000 |
US $3.64 |
||
|
5
|
5
95271-58JA0-000 VALVE,RELIEFS,T; 2006-05-01~ |
95271-58JA0-000 |
US $26.13 |
||
|
6
|
6
95272-58JA0-000 O-RINGS,T; 2006-05-01~ |
95272-58JA0-000 |
US $4.49 |
||
|
7
|
7
95214-80JA0-000
SWITCH,THERMAL
S,T; 2006-05-01~ |
95214-80JA0-000 |
— | ||
|
8
|
8
95291-80JA0-000 CLAMP,THERMALS,T; 2006-05-01~ |
95291-80JA0-000 |
US $7.95 |
||
